RNK368.0840.1.11

Toolholder

Part number RNK3680840111

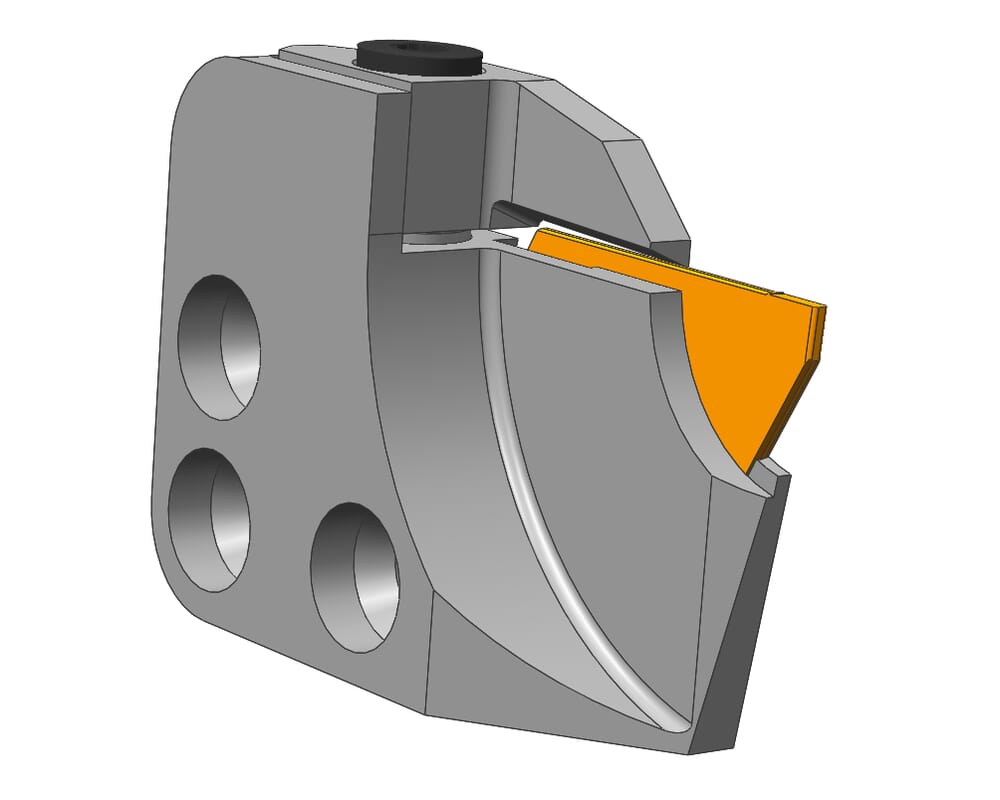

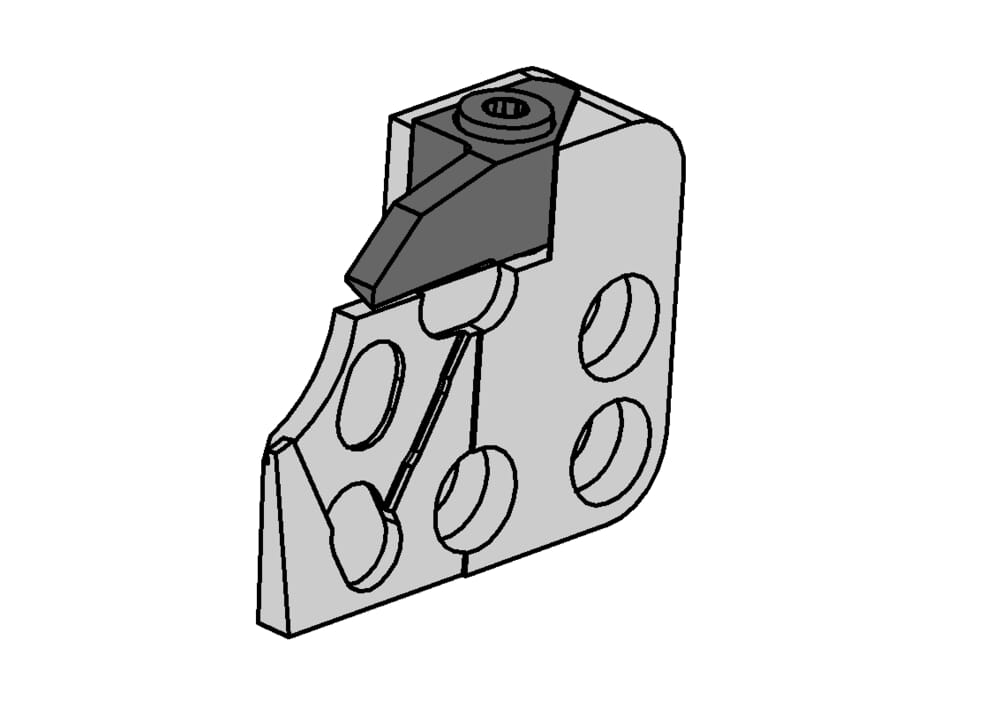

HORN Toolholder RNK368.0840.1.11 for Turning

eclass-shortcut

21-18-10-04

cutting-width-min-met

1.2 mm

cutting-width-max-met

1.5 mm

Katalog_CCTMS

840001

ISO_CCTMS

HORN84000183$$

DIN_CCTMS

HORN-84000183

Katalog_CCTWS

31211N

DIN_CCTWS

HORN-31211000N

ISO_CCTWS

HORN-31211$000N$$$$$

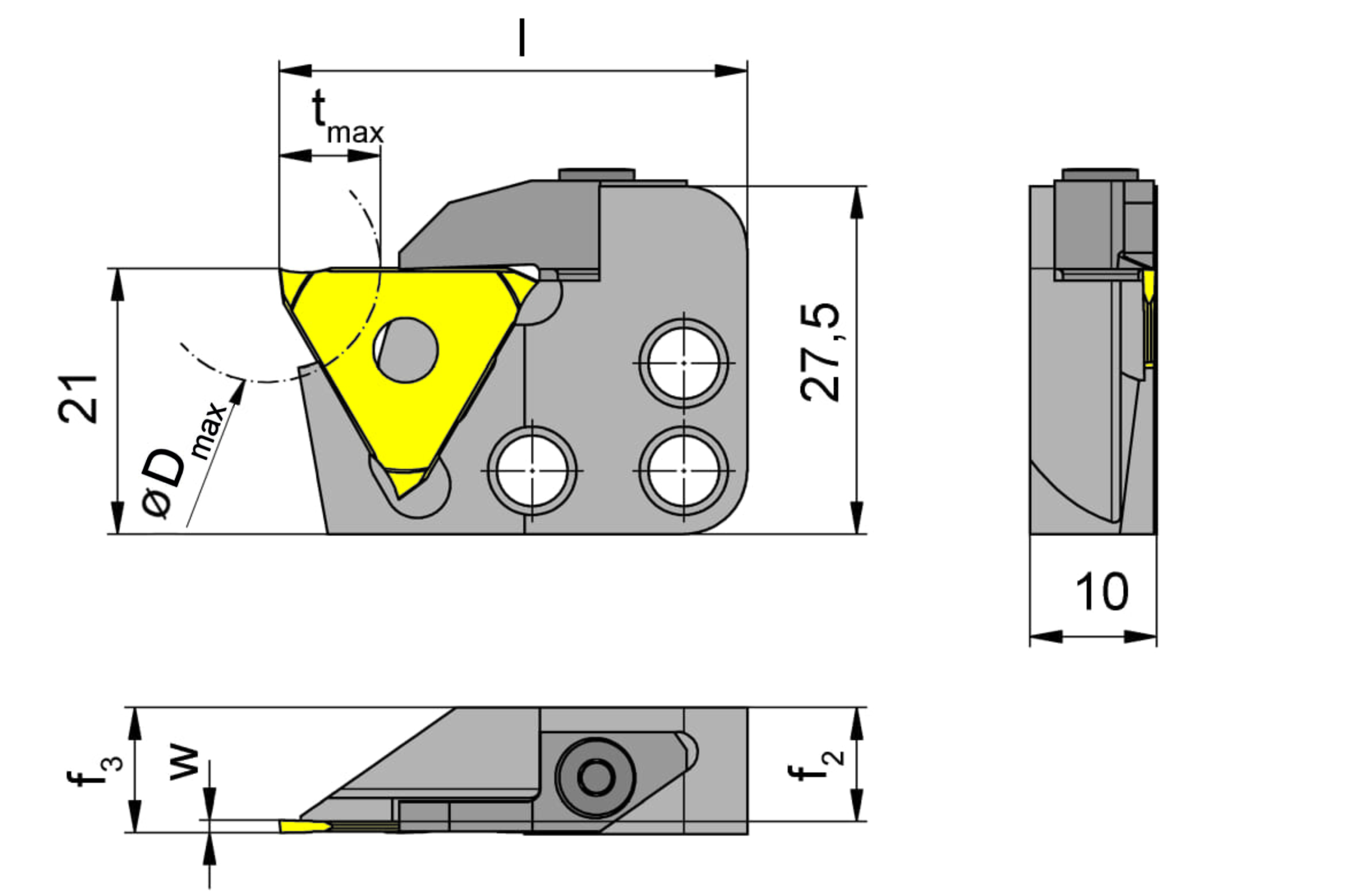

Adjustment dimension locating face insert (f2)

8.7 mm

Adjustment dimension of system cassette formula (f3)

f2+w

Clamping range maximum (Spannbereich)

1.5 mm

Clamping range minimum (Spannbereich)

1.2 mm

Maximum workpiece diameter (Dmax)

18 mm

Maximum depth of groove (tmax)

8 mm

Total length (including cutting insert) (l)

37 mm
