RNK368.0842.4.01.IK

Cartridge

Part number RNK3680842401IK

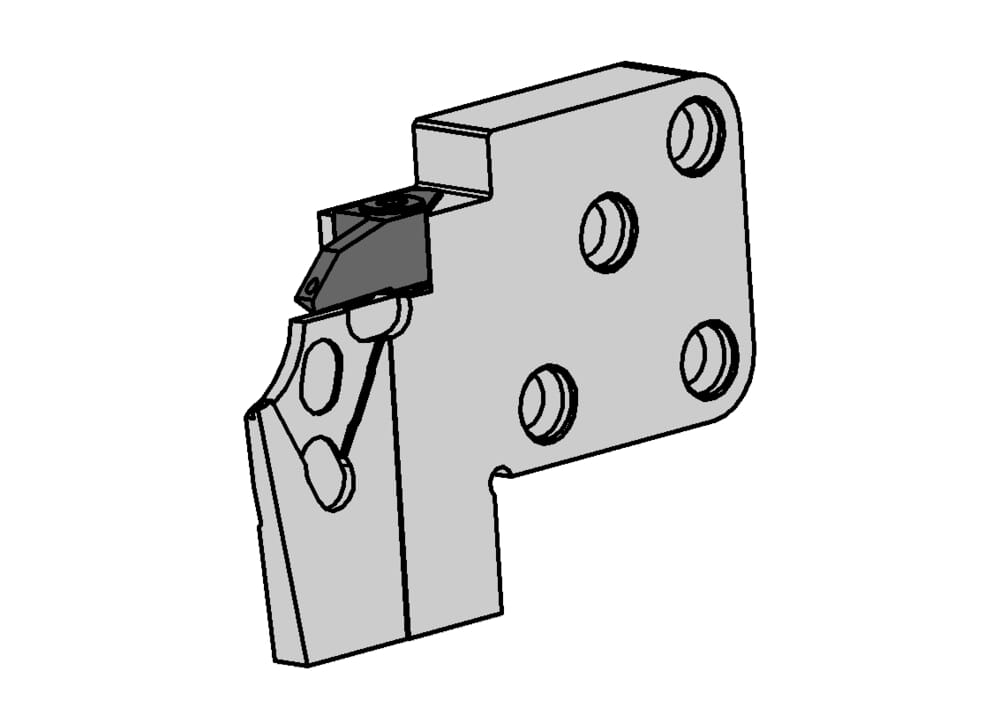

HORN Cartridge RNK368.0842.4.01.IK for Turning

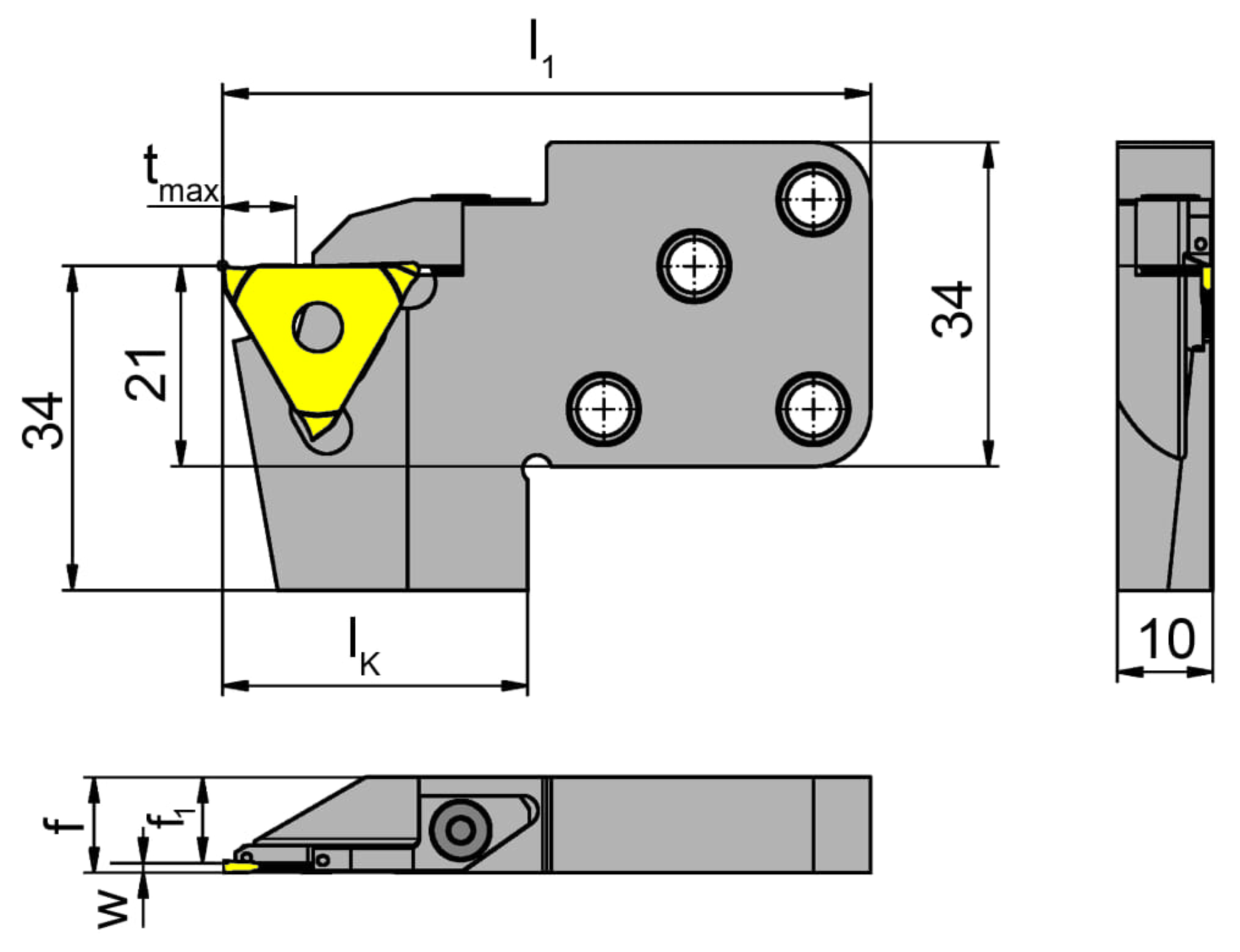

Adjustment dimension locating face insert (f1)

9 mm

eclass-shortcut

21-02-90-90

Katalog_CCTMS

842001;842002

ISO_CCTMS

HORN84200193$$;HORN84200293$$

DIN_CCTMS

HORN-84200193;HORN-84200293

Katalog_CCTWS

31208N

DIN_CCTWS

HORN-31208000N

ISO_CCTWS

HORN-31208$000N$$$$$

Adjustment dimension of system cassette formula (f2)

f1+w+a1

Clamping range maximum (Spannbereich)

1.2 mm

Clamping range minimum (Spannbereich)

0.5 mm

Maximum depth of groove (tmax)

8 mm

Length of unit cassette to cutting edge (lK)

32 mm

Total length (including cutting insert) (l1)

68 mm
