RS275.0215.40 TA45
Insert
Part number RS275021540TA45

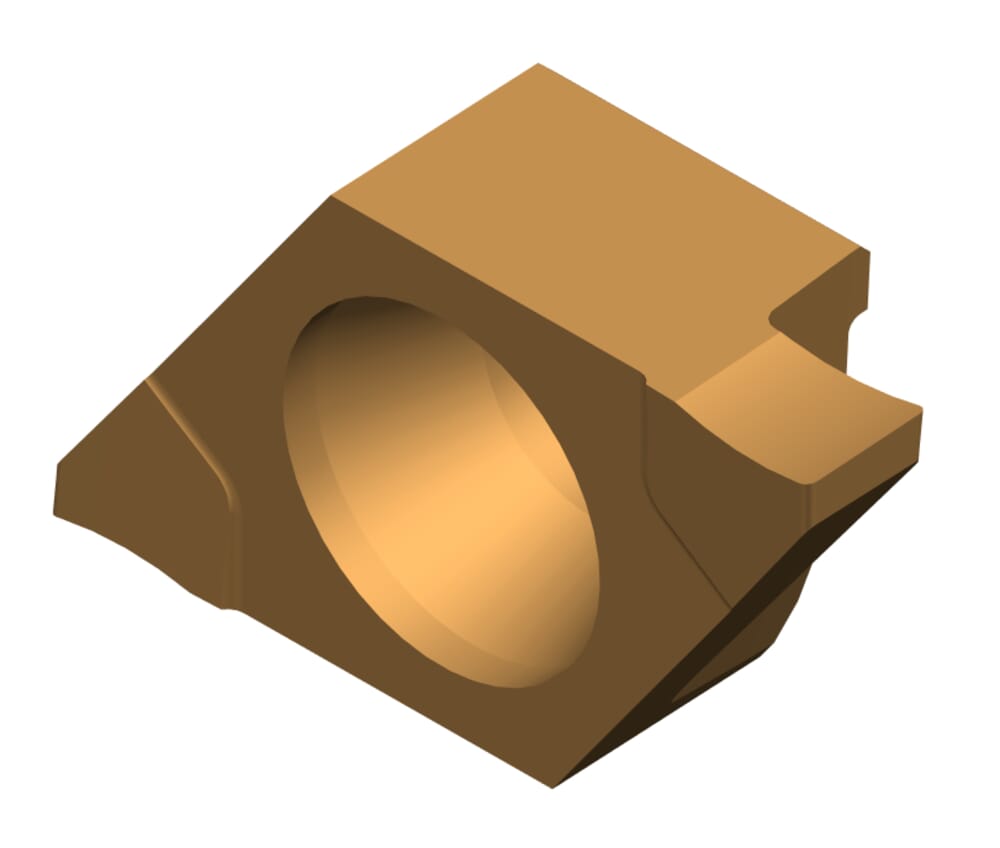

HORN Insert RS275.0215.40 TA45 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN275043031R$$$$$
DIN_SSC
HORN-275043031R
Katalog_SSC
275043R
Width of groove (w)
2.25
mm
Maximum milling depth/ depth of groove (tmax)
2.5
mm
Nominal range (Nw)
2.15
mm
Cutting insert thickness, setting length complete (s)
4.3
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| RS275021540_20210629_032402870.DXF | Download |
| RS275021540_20240116_174225219.STP | Download |
| Download all files | |
