RS275.1610.41 AS45

Insert

Part number RS275161041AS45

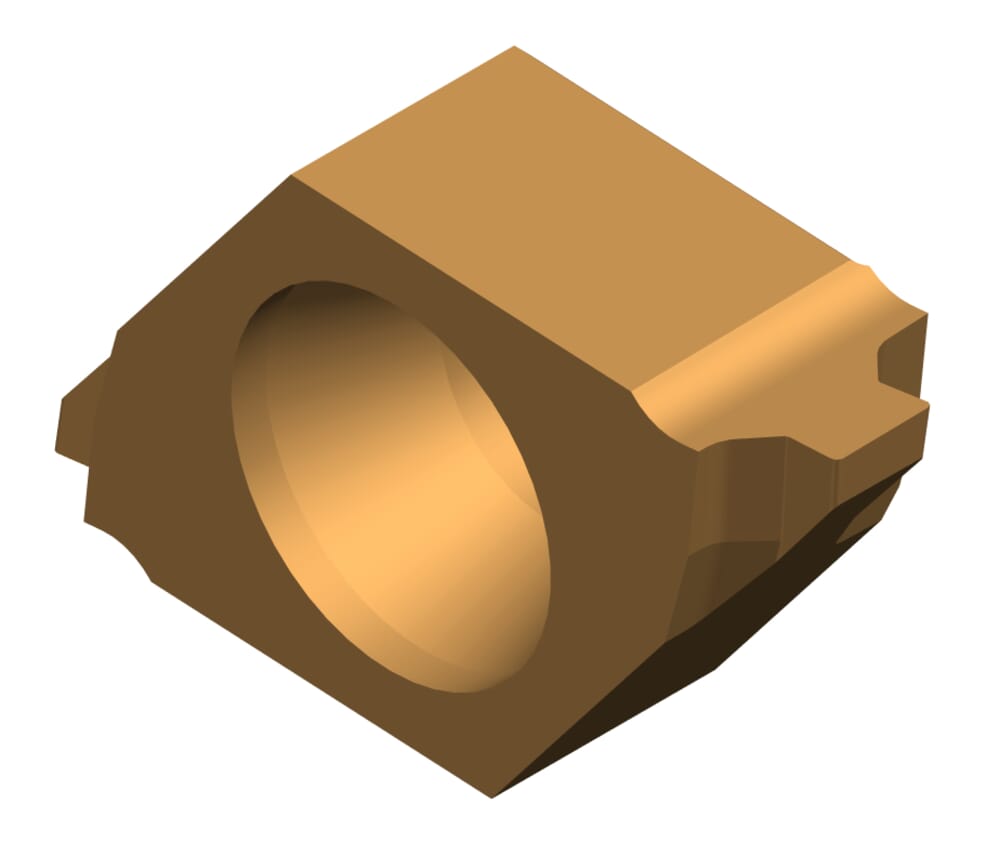

HORN Insert RS275.1610.41 AS45 for Milling

DIN_SSC

HORN-275041031R

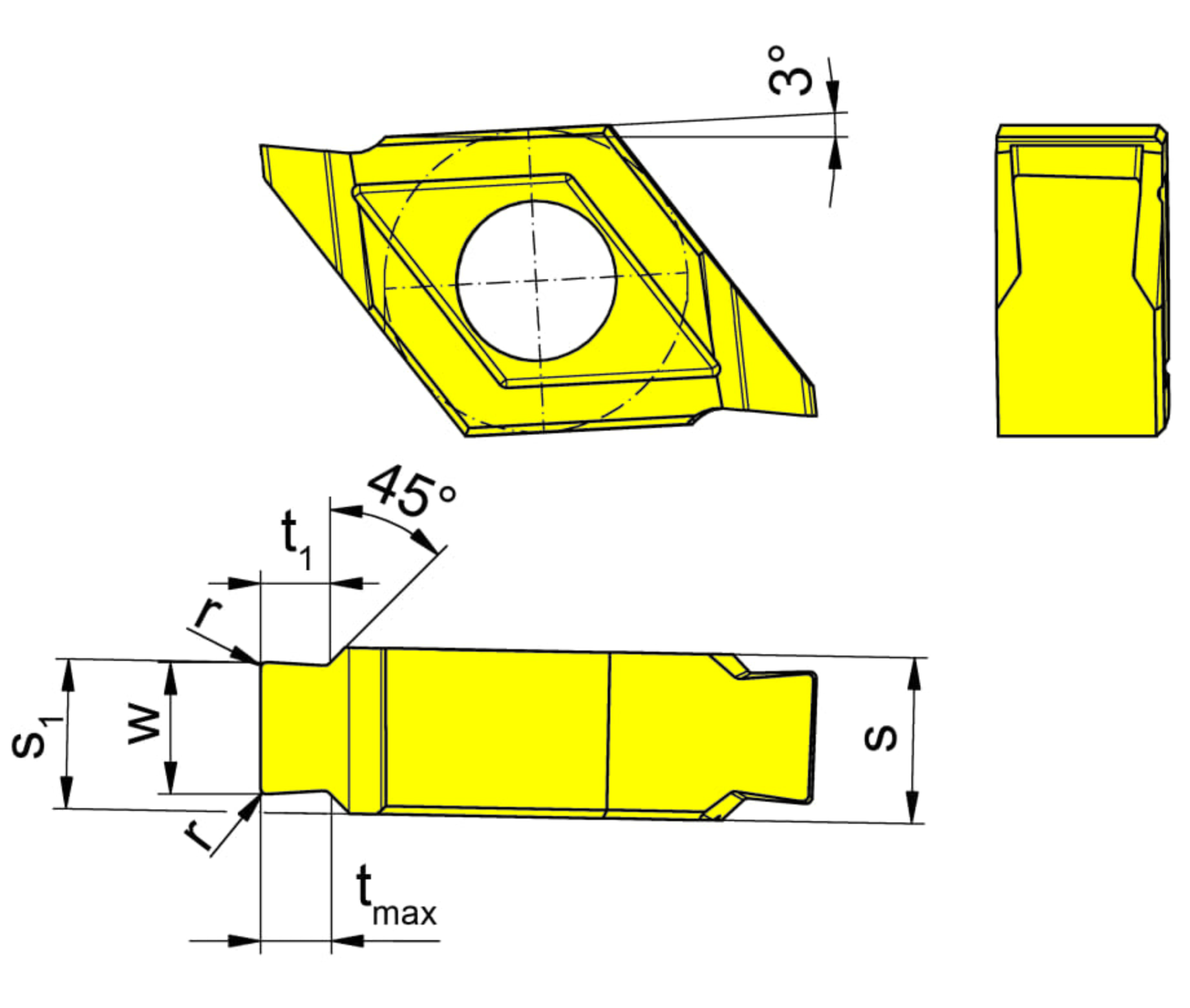

Corner radius (r)

0.1 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

3.17 mm

Cutting insert thickness, setting length complete (s)

4.1 mm

Nominal range (Nw)

1.6 mm

Milling depth without NAKF (t1)

0.95 mm

Maximum milling depth/ depth of groove (tmax)

1 mm

Width of groove (w)

1.7 mm

Katalog_SSC

275041R

ISO_SSC

HORN275041031R$$$$$

eclass-shortcut

21-18-20-03
