RS275.2617.41 AS45
Insert
Part number RS275261741AS45

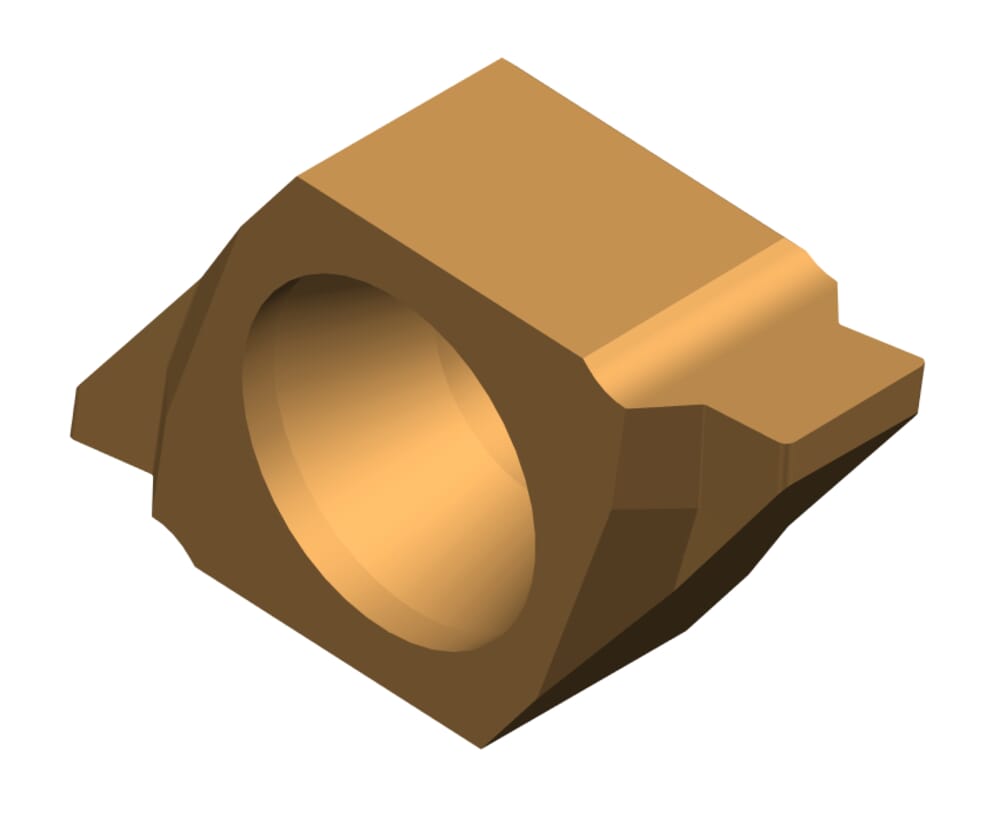

HORN Insert RS275.2617.41 AS45 for Milling
Please note:Technical instructions
DIN_SSC
HORN-275041031R
Corner radius (r)
0.15
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
3.39
mm
Cutting insert thickness, setting length complete (s)
4.1
mm
Nominal range (Nw)
2.65
mm
Milling depth without NAKF (t1)
1.7
mm
Maximum milling depth/ depth of groove (tmax)
1.75
mm
Width of groove (w)
2.75
mm
Katalog_SSC
275041R
ISO_SSC
HORN275041031R$$$$$
eclass-shortcut
21-18-20-03
| Downloads | |
|---|---|
| RS275261741_20210629_032715810.DXF | Download |
| RS275261741_20240116_174411817.STP | Download |
| Download all files | |
