RS279.3972.400.8 AS45
Indexable insert
Part number RS27939724008AS45
HORN Indexable insert RS279.3972.400.8 AS45 for Milling
Please note:Technical instructions
Number of teeth gear wheel maximum (zmax)
999
St.

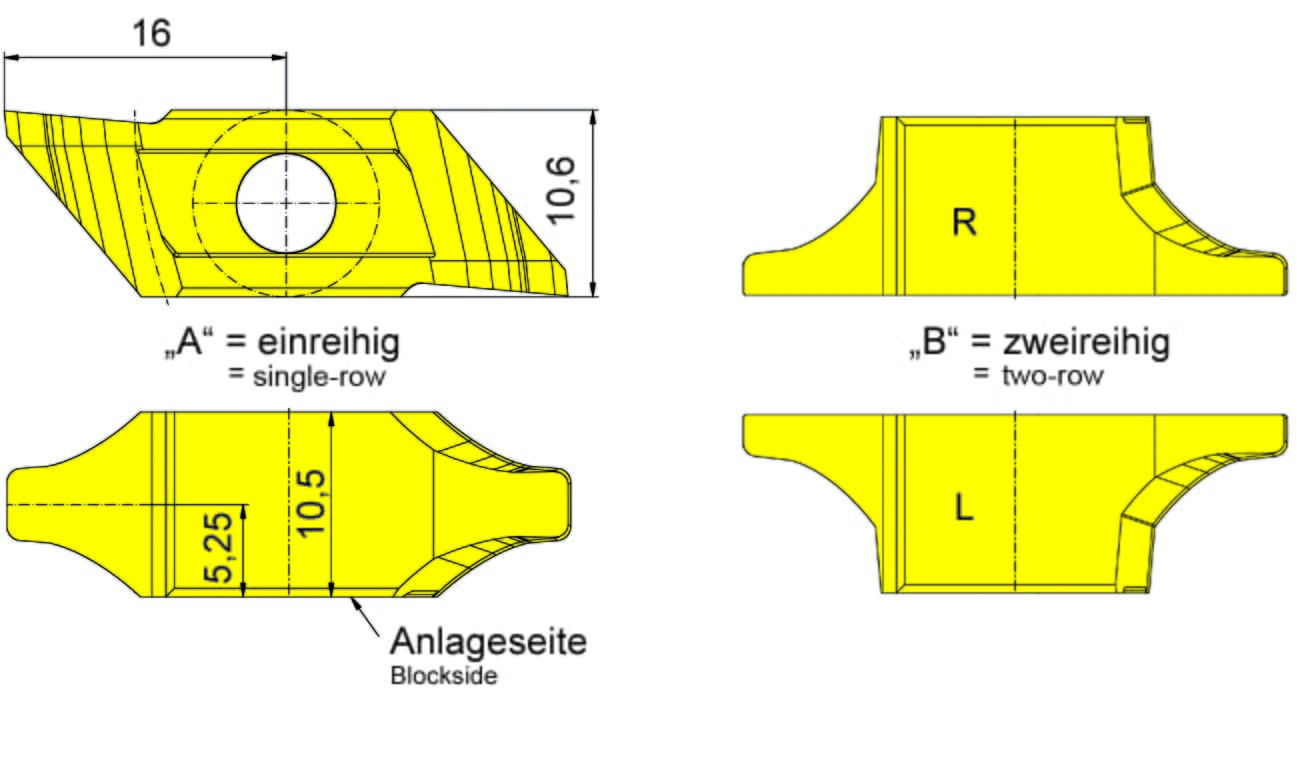

Cutting insert height, Cutting insert thickness (s)
10.5
mm
Setting length (E1)
5.25
mm
Form (Form)
A
Maximum milling depth (tmax)
8.9
mm
Katalog_SSC
279105R
DIN_SSC
HORN-279105000R
ISO_SSC
HORN279105000R$$$$$
Number of teeth gear wheel minimum (zmin)
135
St.
Module (Modul)
4
mm
eclass-shortcut
21-18-20-03
Number of teeth (Z)
2
St.
| Downloads | |
|---|---|
| RS27939724008.DXF | Download |
| RS27939724008_20240116_175613988.STP | Download |
| Download all files | |
