B105.0022.02
Toolholder
Part number B105002202

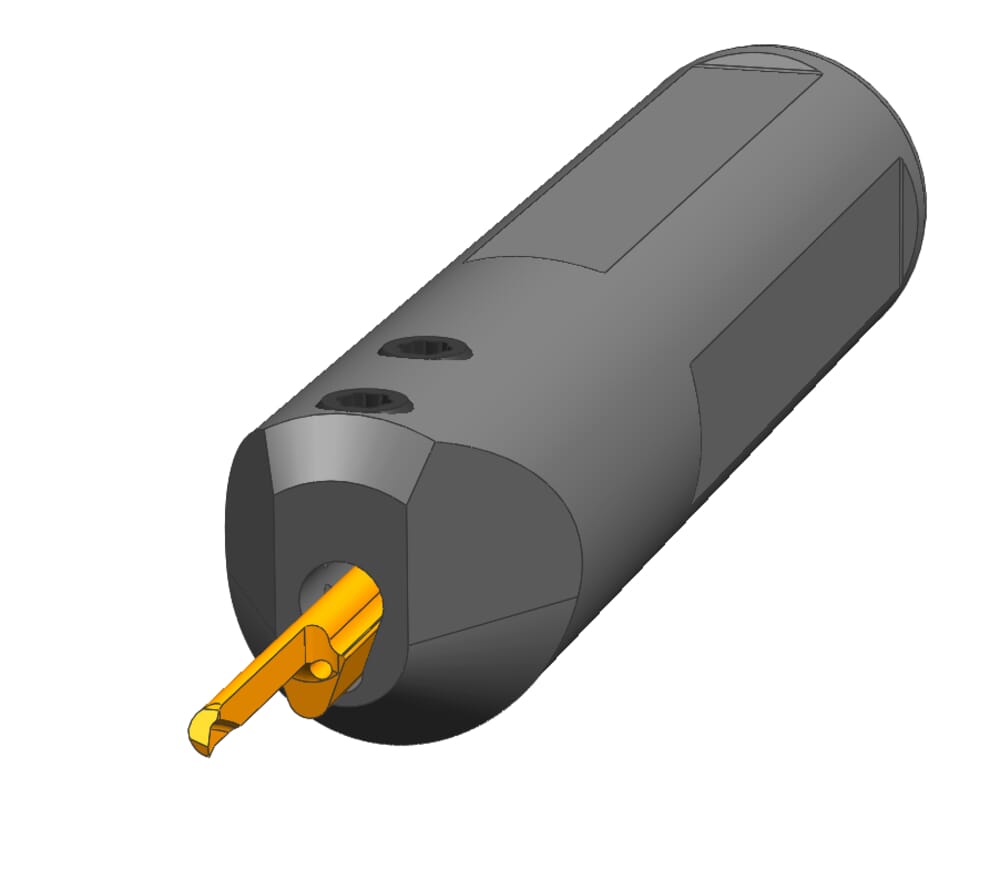

HORN Toolholder B105.0022.02 for Turning
Please note:Technical instructions
Total length (without cutting insert) (l1)
100
mm
Height clamping surface(s) (h)
20
mm
Length of clamping surface(s) (l4)
55
mm
Shank, clamping diameter (d)
22
ISO_CCTWS
HORN105225$95N$$$$$
DIN_CCTWS
HORN-10522595N
Katalog_CCTWS
105225
DIN_CCTMS
ZYL02202315
ISO_CCTMS
ZYL23G2200$$$$
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| B105002202_20210627_124513209.DXF | Download |
| B105_0022_02_20171121_231210266.STP | Download |
| Download all files | |
