B108.0012.02
Toolholders
Part number B108001202

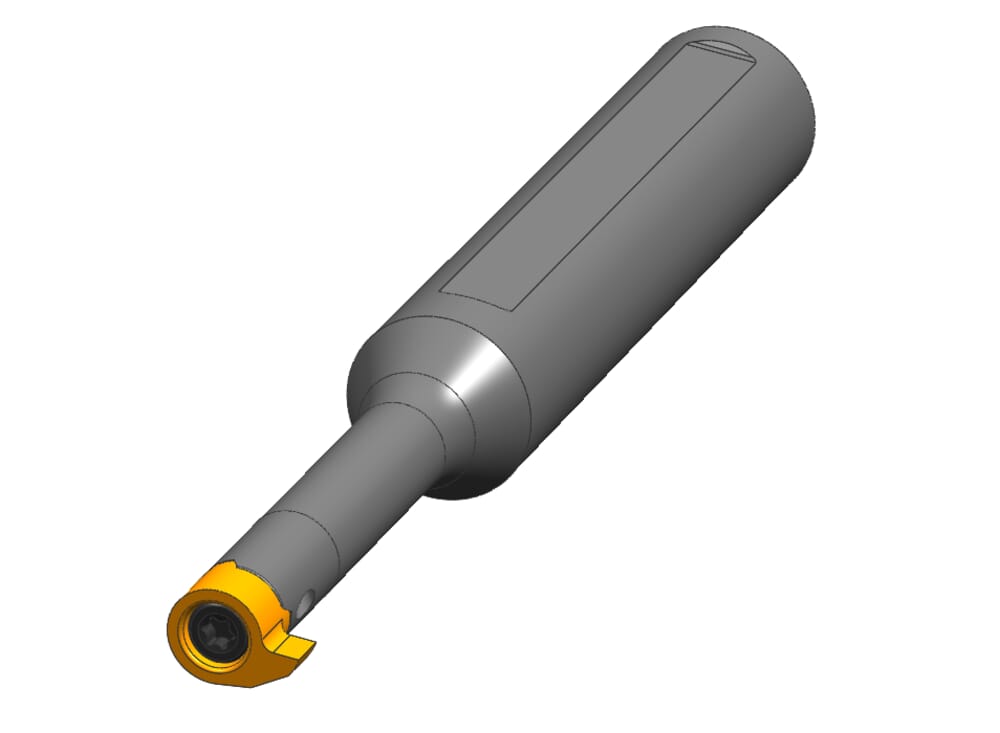

HORN Toolholders B108.0012.02 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05
Neck diameter (d1)
6
mm
ISO_CCTMS
ZYL23G1200$$$$
DIN_CCTMS
ZYL01202315
Katalog_CCTWS
108060R;108060L
DIN_CCTWS
HORN-10806084R;HORN-10806084L
ISO_CCTWS
HORN108060$84R$$$$$;HORN108060$84L$$$$$
Shank, clamping diameter (d)
12
mm
Length of clamping surface(s) (l4)
45
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
90
mm
Outcropping, neck, working length (l2)
30
mm
| Downloads | |
|---|---|
| B108001202_20210706_210453957.DXF | Download |
| B108_0012_02_20171121_235043347.STP | Download |
| Download all files | |
