B111.0008.01
Toolholder
Part number B111000801

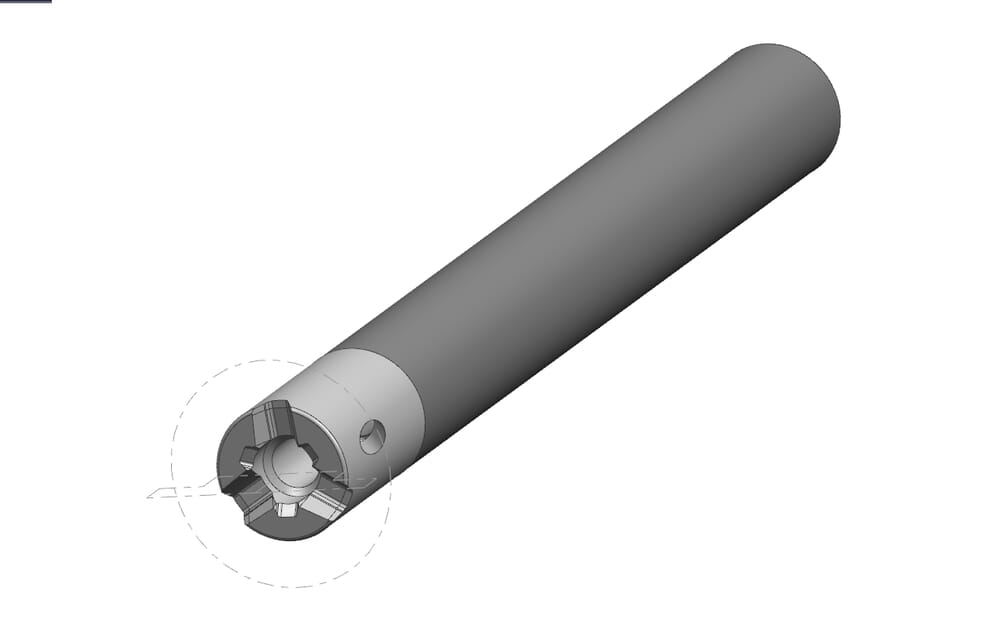

HORN Toolholder B111.0008.01 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-01

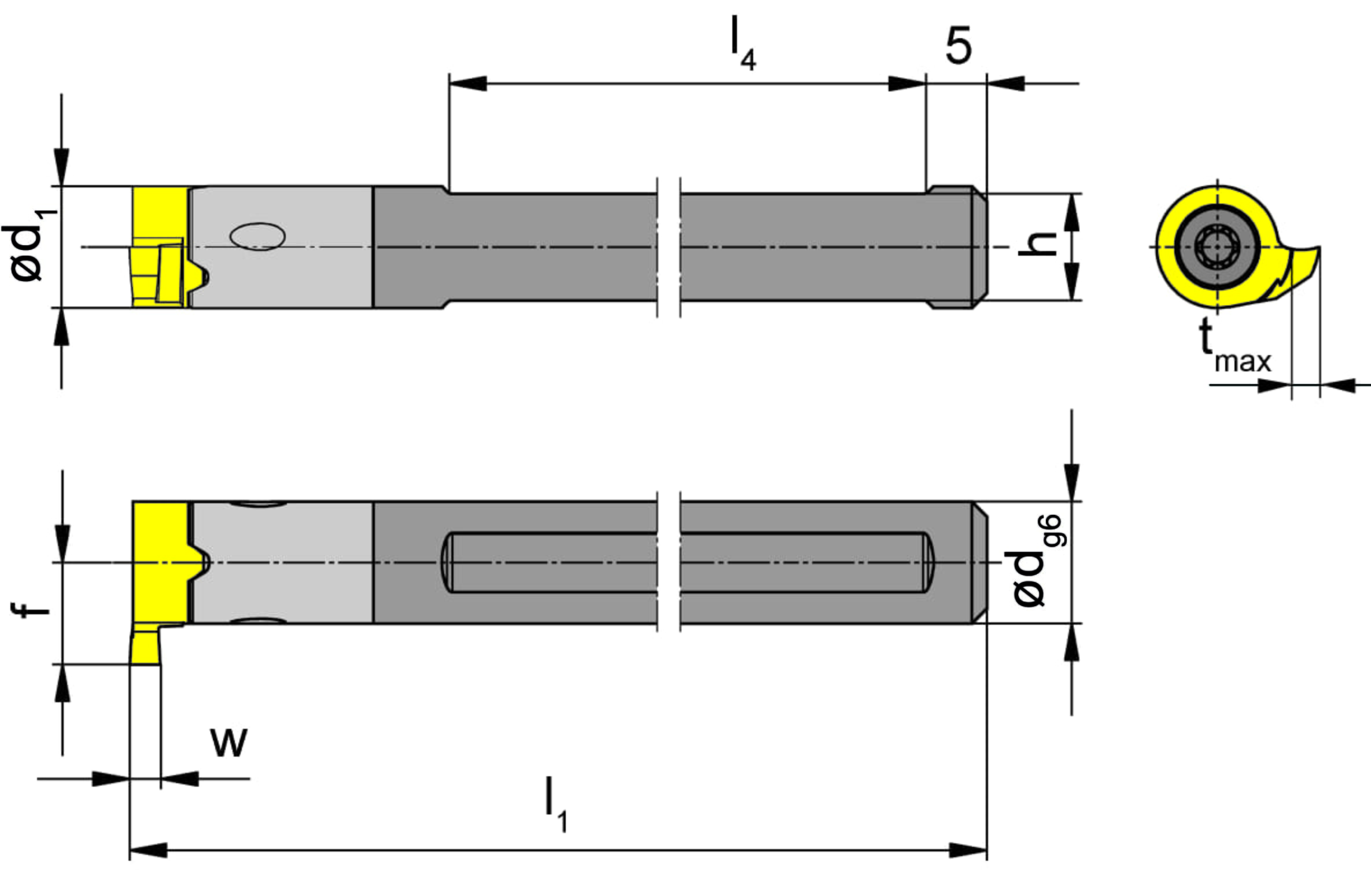

Neck diameter (d1)
8
mm
ISO_CCTMS
ZYL23F8000$$$$
DIN_CCTMS
ZYL00802315
Katalog_CCTWS
111080R;111080L
DIN_CCTWS
HORN-11108084R;HORN-11108084L
ISO_CCTWS
HORN111080$84R$$$$$;HORN111080$84L$$$$$
Shank, clamping diameter (d)
8
mm
Length of clamping surface(s) (l4)
55
mm
Height clamping surface(s) (h)
7
mm
Total length (including cutting insert) (l1)
80
mm
| Downloads | |
|---|---|
| B111000801.DXF | Download |
| B111_0008_01_20171121_180727302.STP | Download |
| Download all files | |
