B111.0012.01
Toolholders
Part number B111001201

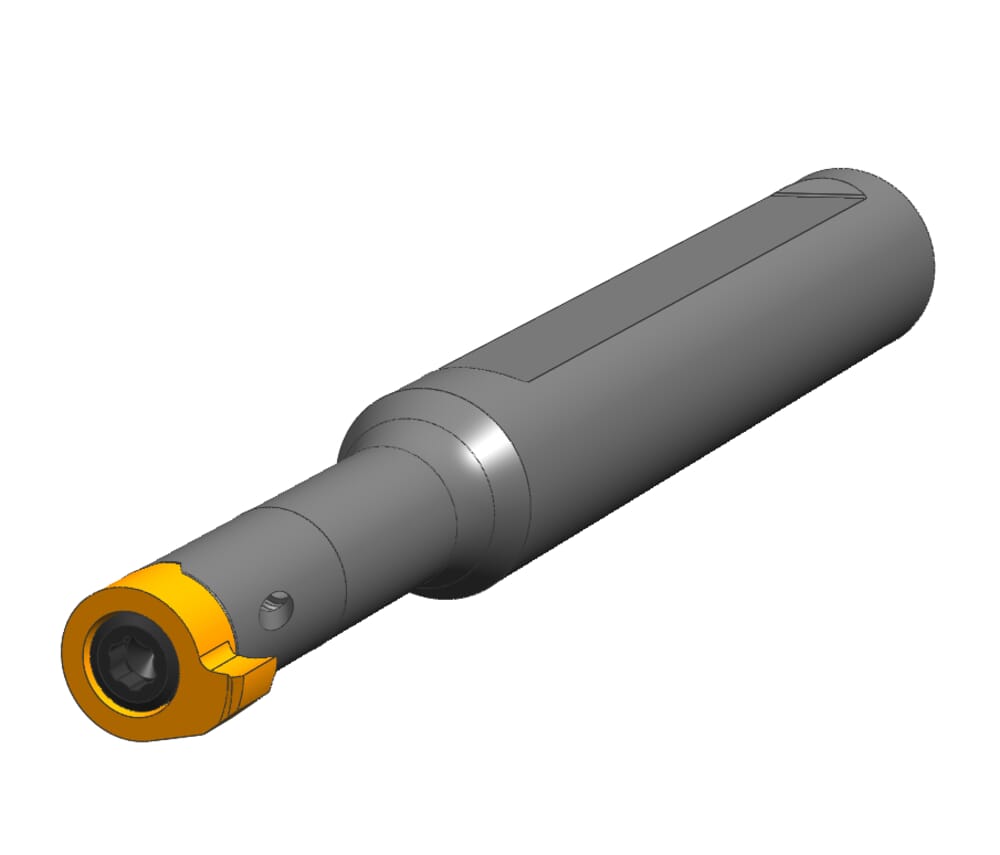

HORN Toolholders B111.0012.01 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05

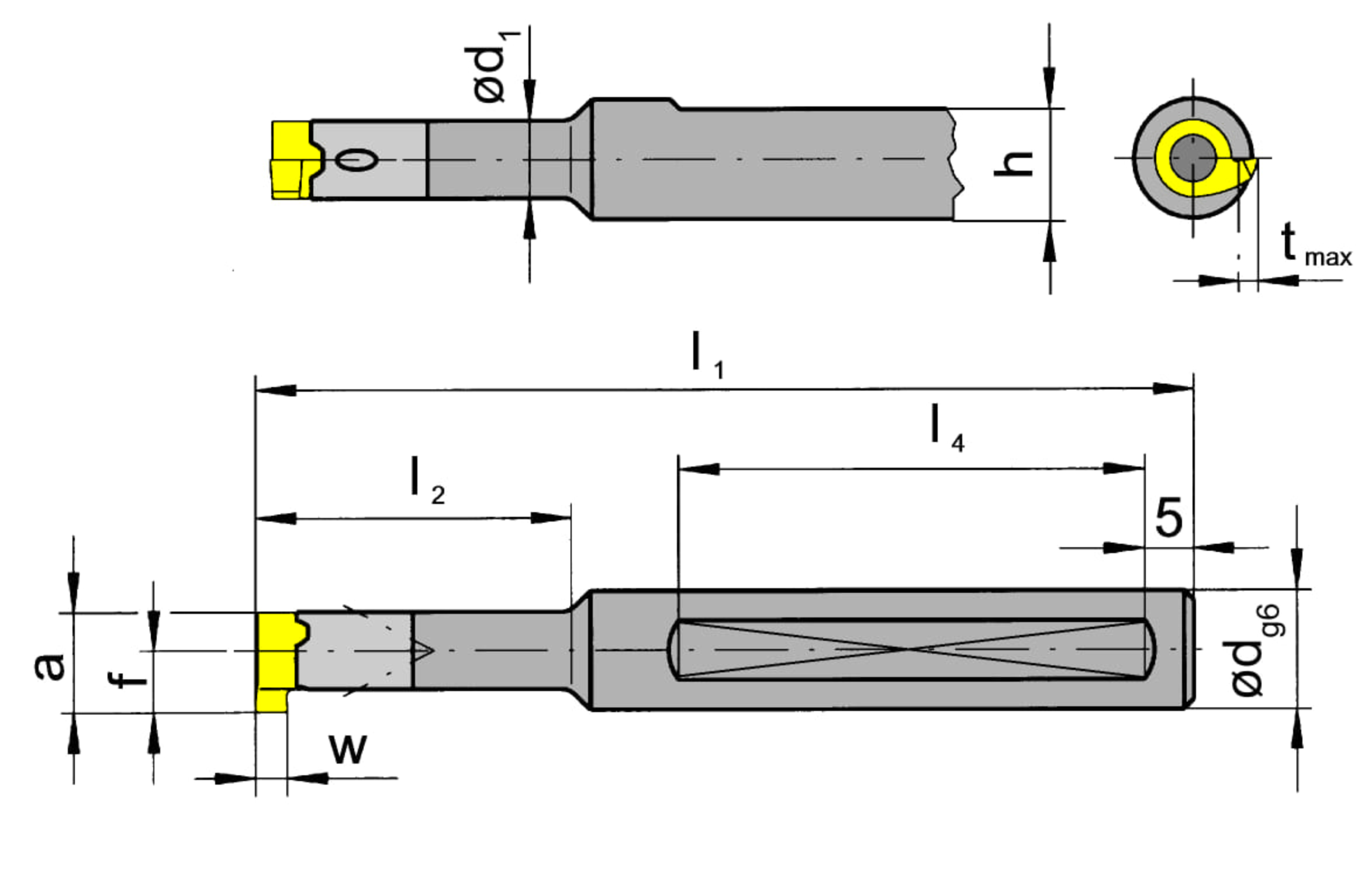

Neck diameter (d1)
8
mm
ISO_CCTMS
ZYL50G1200$$$$
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
111080R;111080L
DIN_CCTWS
HORN-11108084R;HORN-11108084L
ISO_CCTWS
HORN111080$84R$$$$$;HORN111080$84L$$$$$
Shank, clamping diameter (d)
12
mm
Length of clamping surface(s) (l4)
50
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
95
mm
Outcropping, neck, working length (l2)
29
mm
| Downloads | |
|---|---|
| B111001201_20210628_164818823.DXF | Download |
| B111_0012_01_20171121_212435824.STP | Download |
| Download all files | |
