B111.0012.01S
Toolholder
Part number B111001201S

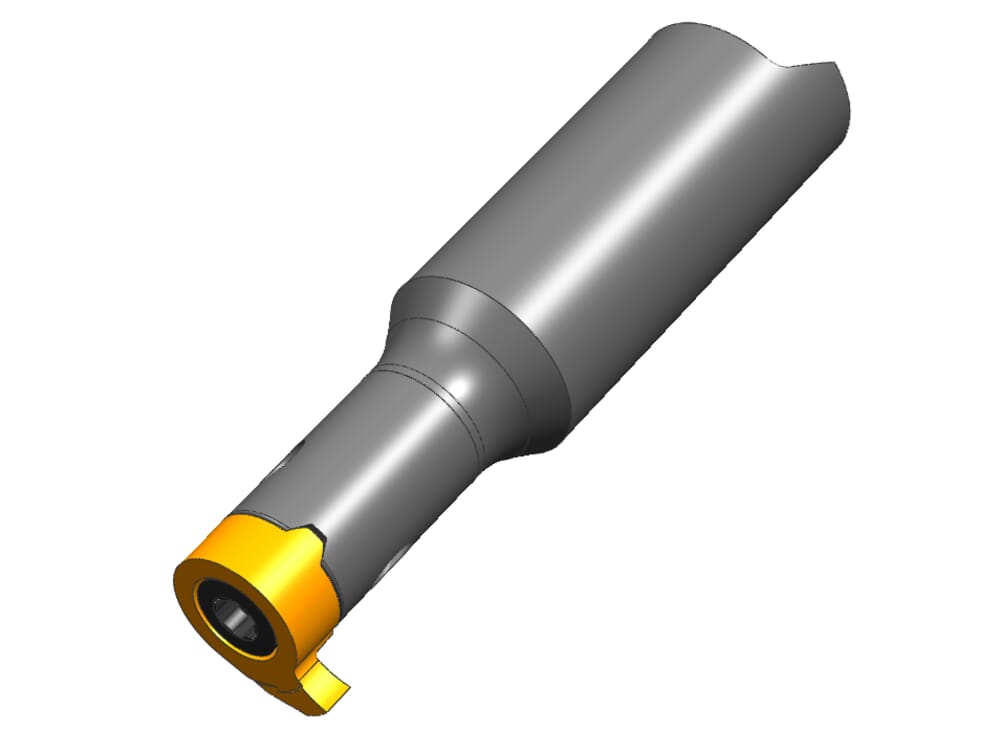

HORN Toolholder B111.0012.01S for Turning
Please note:Technical instructions

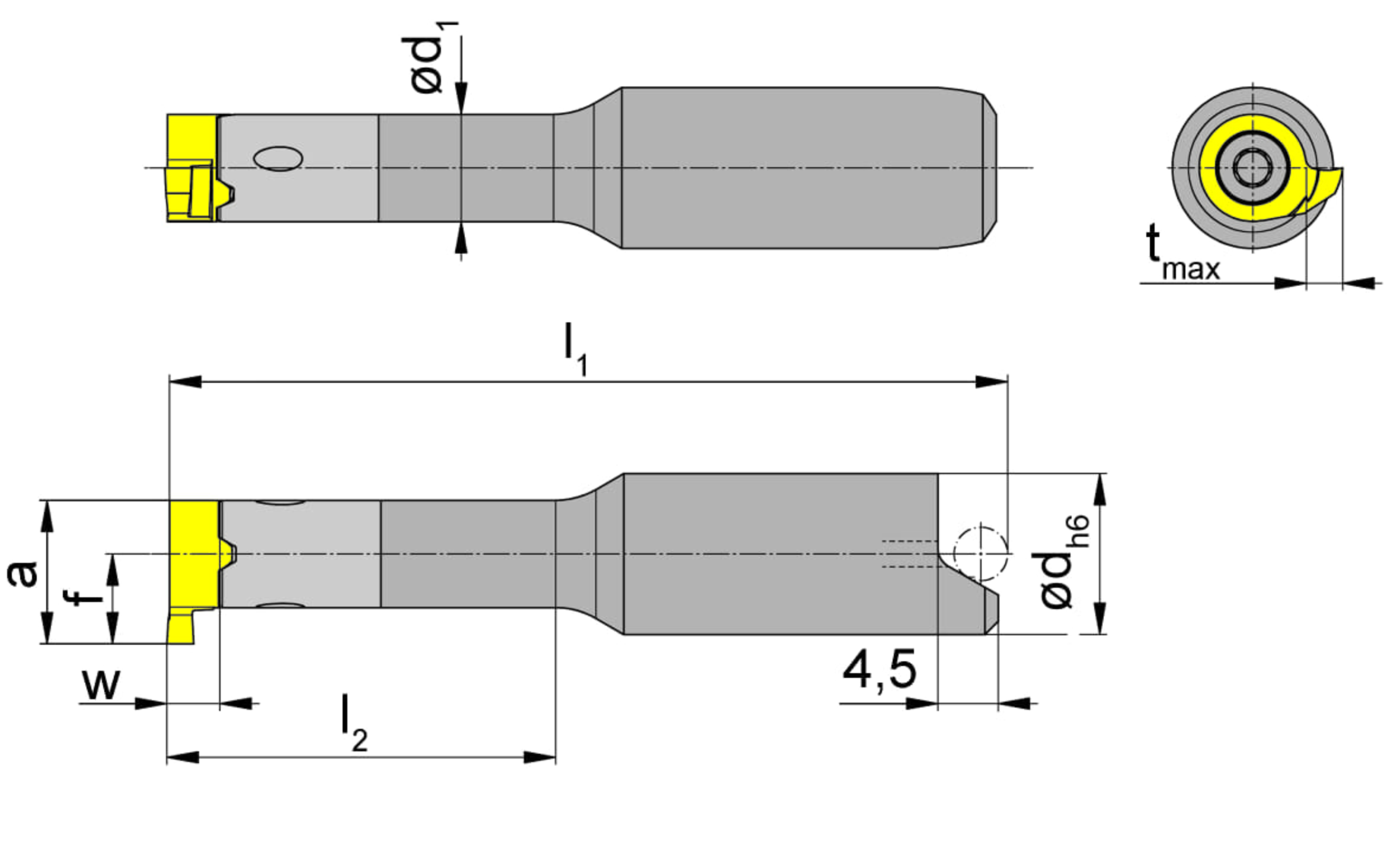

Outcropping, neck, working length (l2)
29
mm
Total length (including cutting insert) (l1)
62.7
mm
Shank, clamping diameter (d)
12
mm
ISO_CCTWS
HORN308080$84R$$$$$;HORN308080$84L$$$$$
DIN_CCTWS
HORN-30808084R;HORN-30808084L
Katalog_CCTWS
308080R;308080L
DIN_CCTMS
ZYL01200115
ISO_CCTMS
ZYL01G1200h$06
Neck diameter (d1)
8
mm
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| B111001201S.DXF | Download |
| B111_0012_01S_20171121_221406734.STP | Download |
| Download all files | |
