B111.0012.2.00
Toolholder
Part number B1110012200

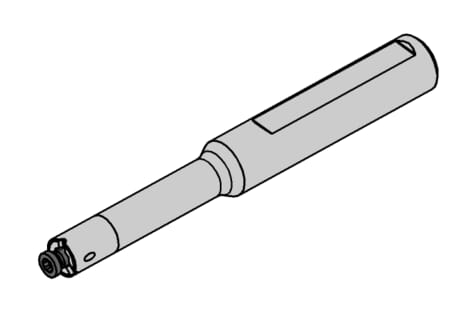

HORN Toolholder B111.0012.2.00 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05
Neck diameter (d1)
8
mm
ISO_CCTMS
ZYL23G1200$$$$
DIN_CCTMS
ZYL01202315
Katalog_CCTWS
111080R;111080L
DIN_CCTWS
HORN-11108084R;HORN-11108084L
ISO_CCTWS
HORN111080$84R$$$$$;HORN111080$84L$$$$$
Shank, clamping diameter (d)
12
Length of clamping surface(s) (l4)
40
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
75
mm
Outcropping, neck, working length (l2)
16.5
mm
| Downloads | |
|---|---|
| B1110012200_20210629_113908156.DXF | Download |
| B111_0012_2_00_20171121_234207760.STP | Download |
| Download all files | |
