BGT001.0022.30
Toolholders
Part number BGT001002230

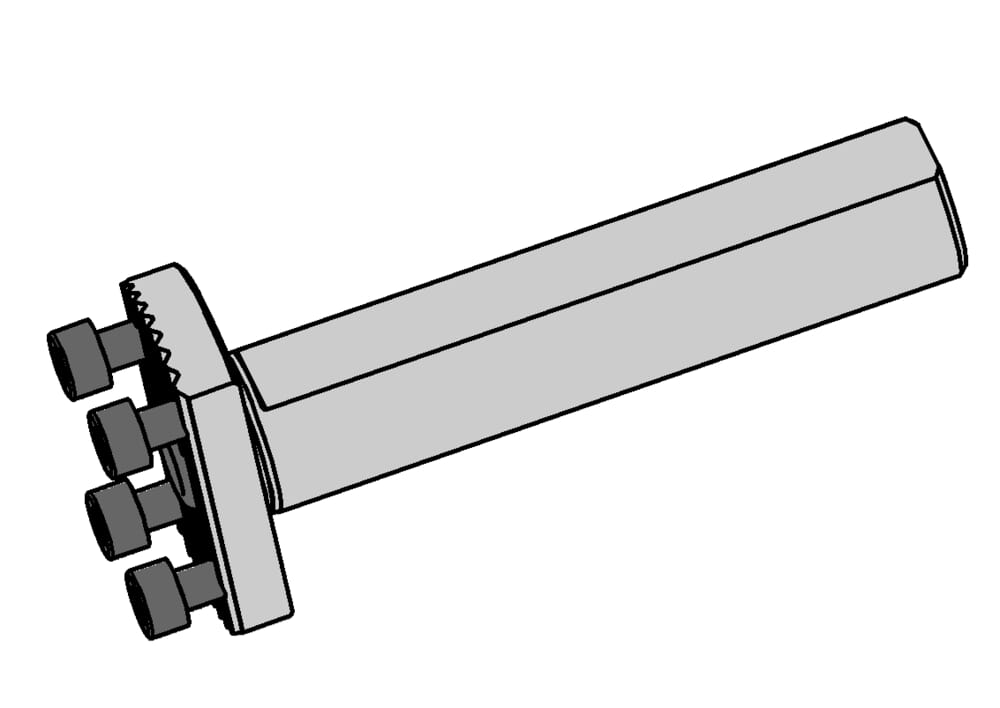

HORN Toolholders BGT001.0022.30 for Turning
Please note:Technical instructions

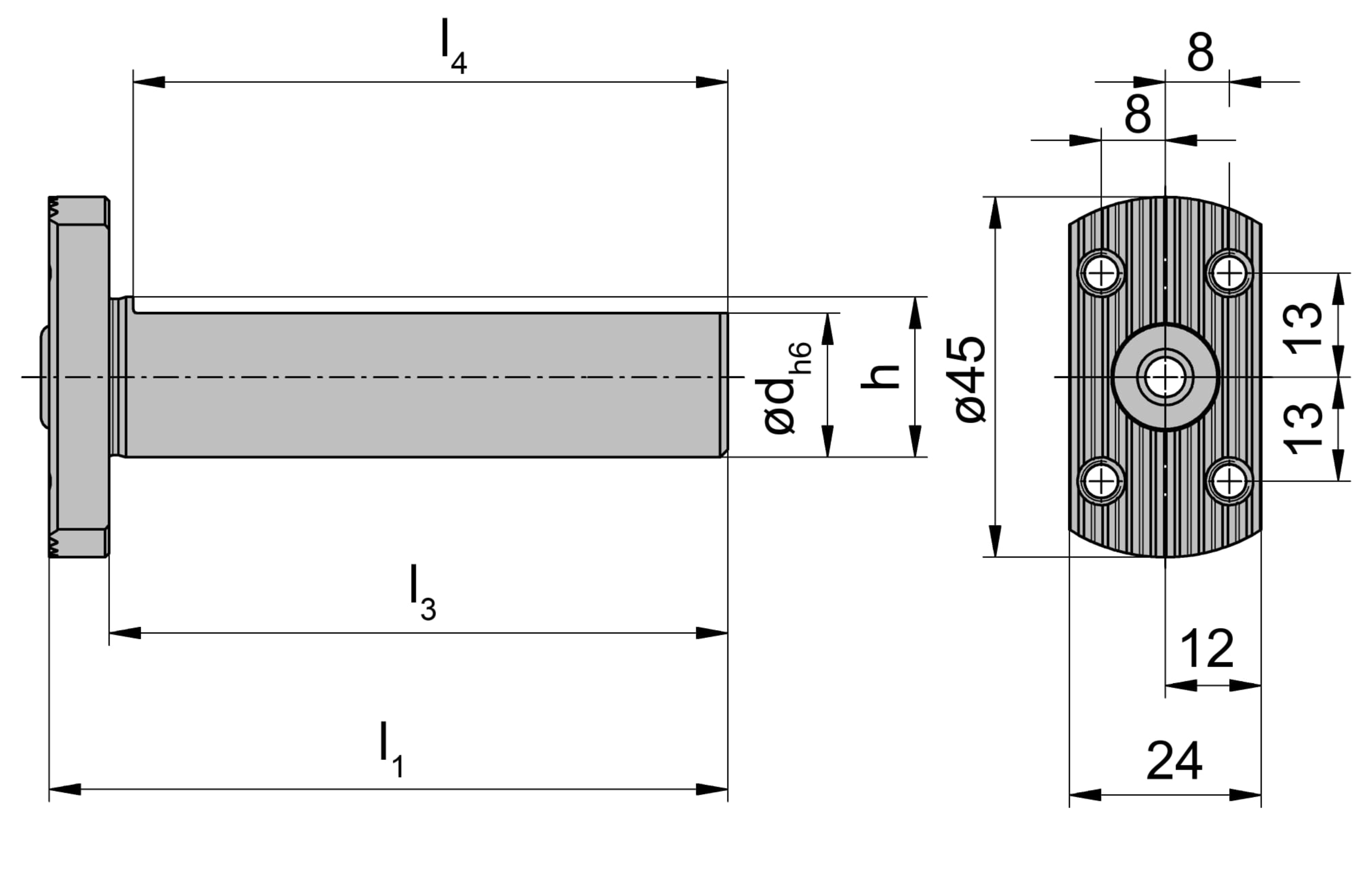

Shank diameter (d)
22
mm
Shank length (l3)
30
mm
Length of clamping surface(s) (l4)
27
mm
Machine type (Maschinentyp)
Star
Clamping height (h)
20
mm
Katalog_CCTMS
Kerbverzahnung 90° / T3
Total length (l1)
36.35
mm
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| BGT001_0022_30.DXF | Download |
| BGT001_0022_30_20171121_180902416.STP | Download |
| Download all files | |
