BGT001.0R22.25
Toolholder
Part number BGT0010R2225

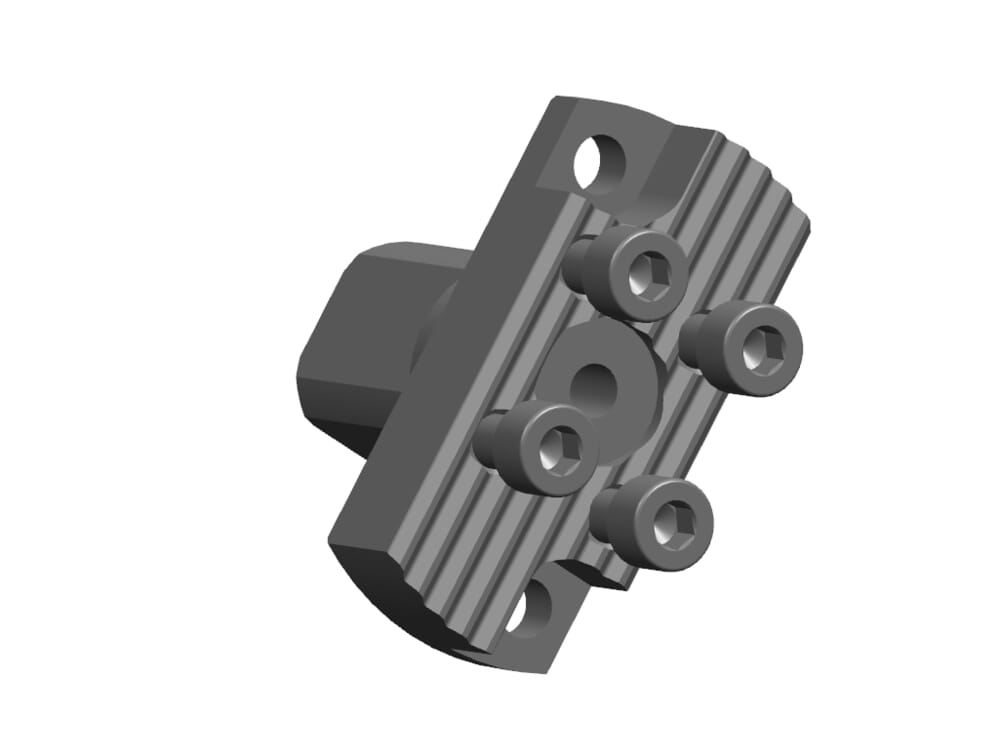

HORN Toolholder BGT001.0R22.25 for Turning
Please note:Technical instructions
Shank diameter (d)
22
mm
Shank length (l3)
25
mm
Length of clamping surface(s) (l4)
21
mm
Clamping height (h)
20
mm
Katalog_CCTMS
Kerbverzahnung 90° / T3
Total length (l1)
37
mm
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| BGT0010R2225_20210627_135316127.DXF | Download |
| BGT001_0R22_25_20171121_183221470.STP | Download |
| Download all files | |
