BGT001.1627.10
Toolholders
Part number BGT001162710

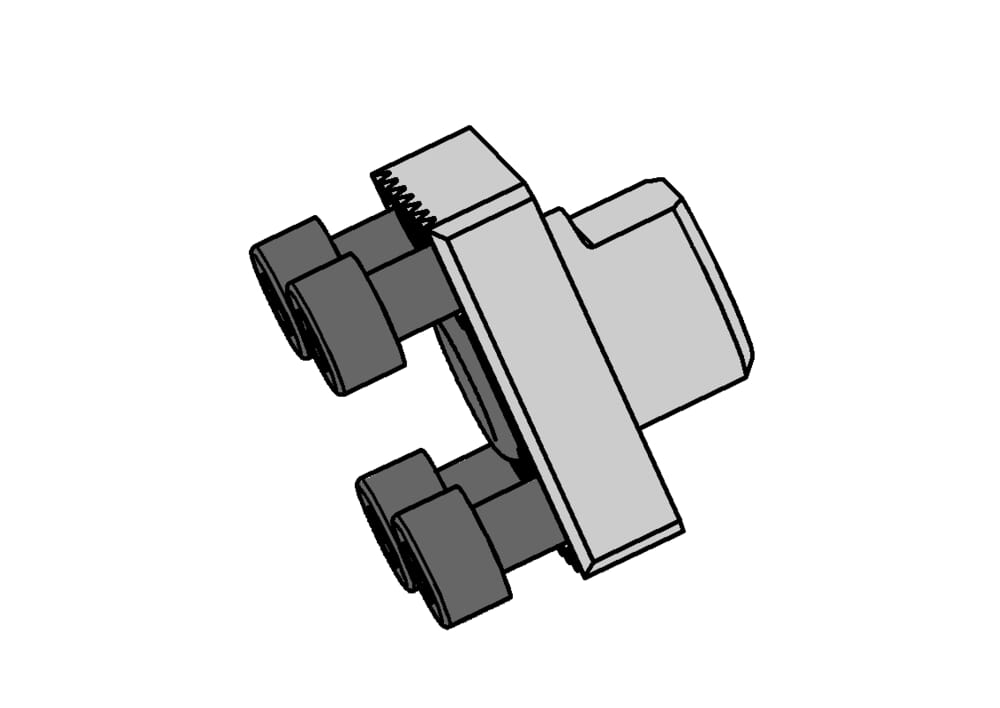

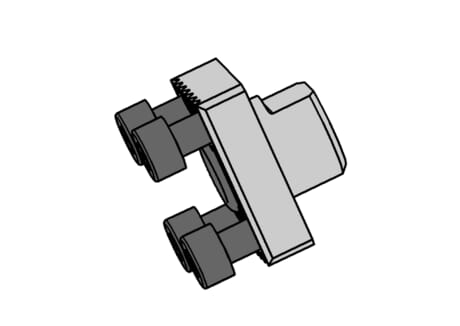

HORN Toolholders BGT001.1627.10 for Turning
Please note:Technical instructions

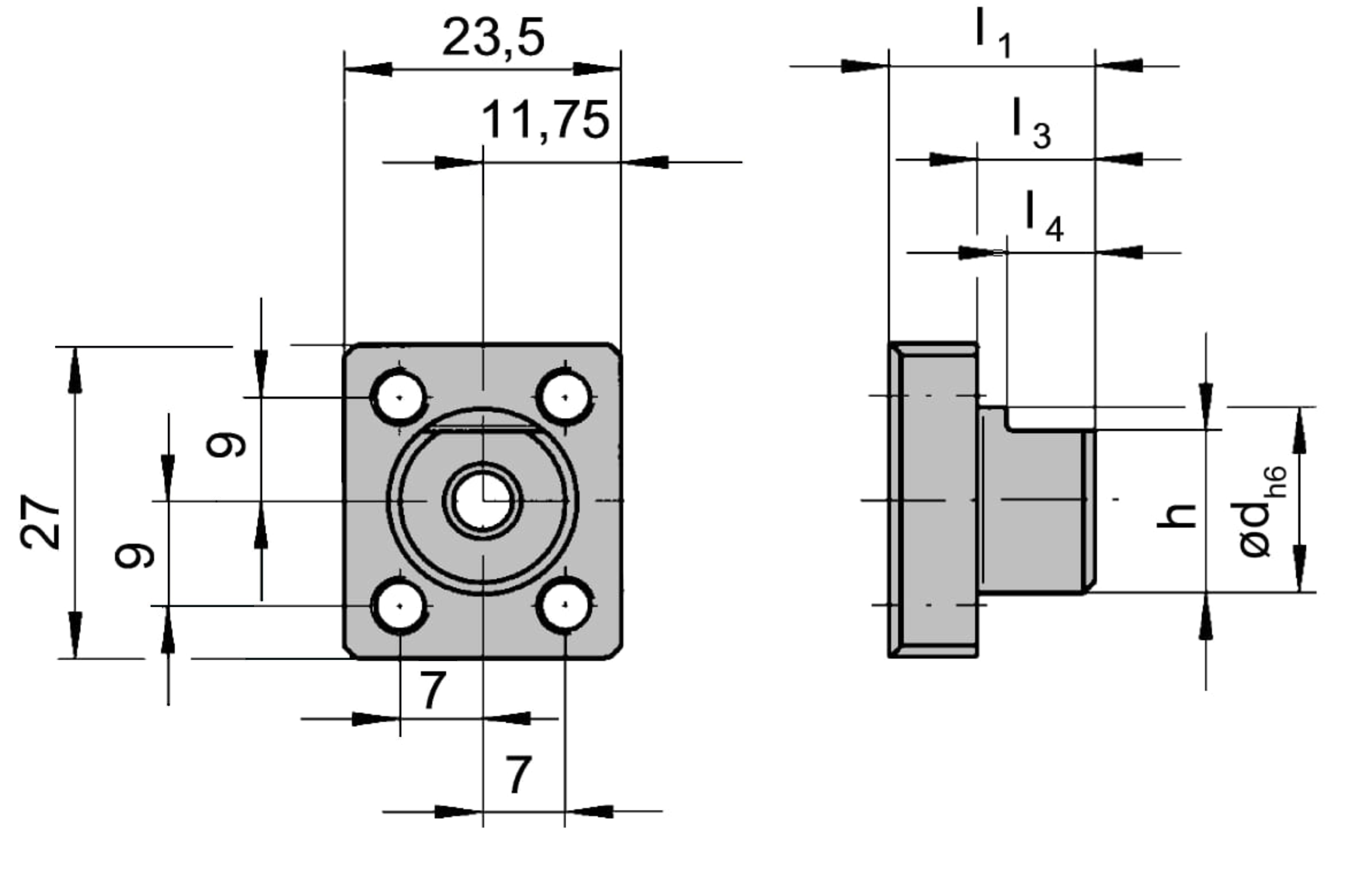

Shank diameter (d)
16
mm
Shank length (l3)
10
mm
Length of clamping surface(s) (l4)
7.5
mm
Machine type (Maschinentyp)
Star
Clamping height (h)
14
mm
Katalog_CCTMS
Kerbverzahnung 90° / T3
Total length (l1)
17.5
mm
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| BGT001_1627_10.DXF | Download |
| BGT001_1627_10_20171121_231240299.STP | Download |
| Download all files | |
