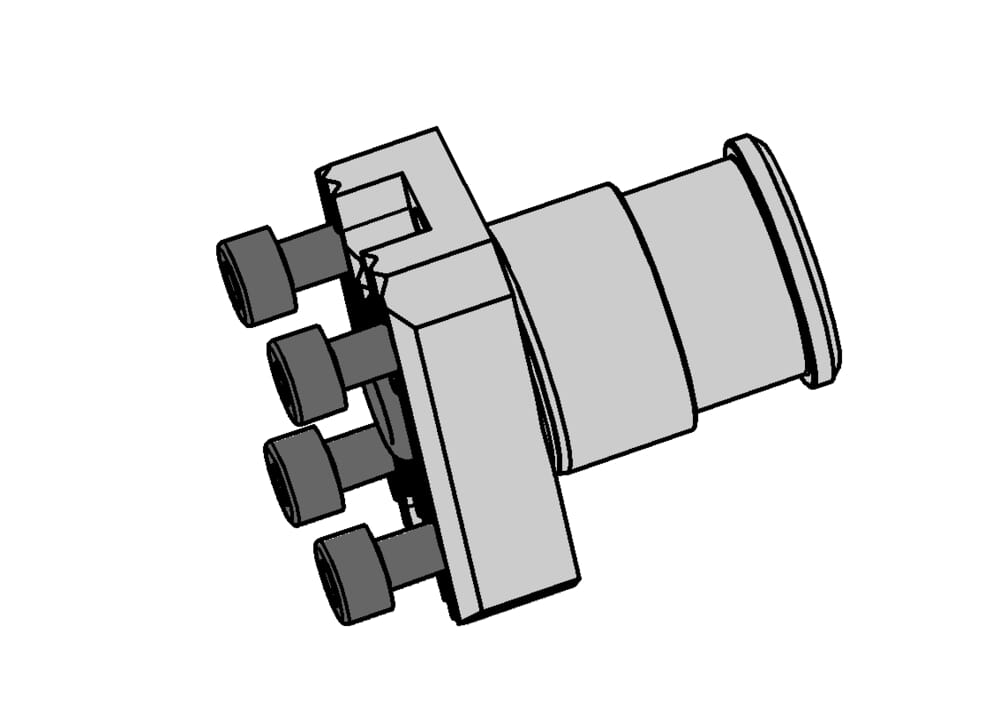

BGT001.C025.30IK

Toolholder

INNEN_EINSTECHEN.EPS

IK_GENERELL.EPS

INNEN_BOHRUNG_AUSDREHEN.EPS

AUSSEN_LAENGSDREHEN.EPS

Part number BGT001C02530IK

HORN Toolholder BGT001.C025.30IK for Turning

Please note:Technical instructions

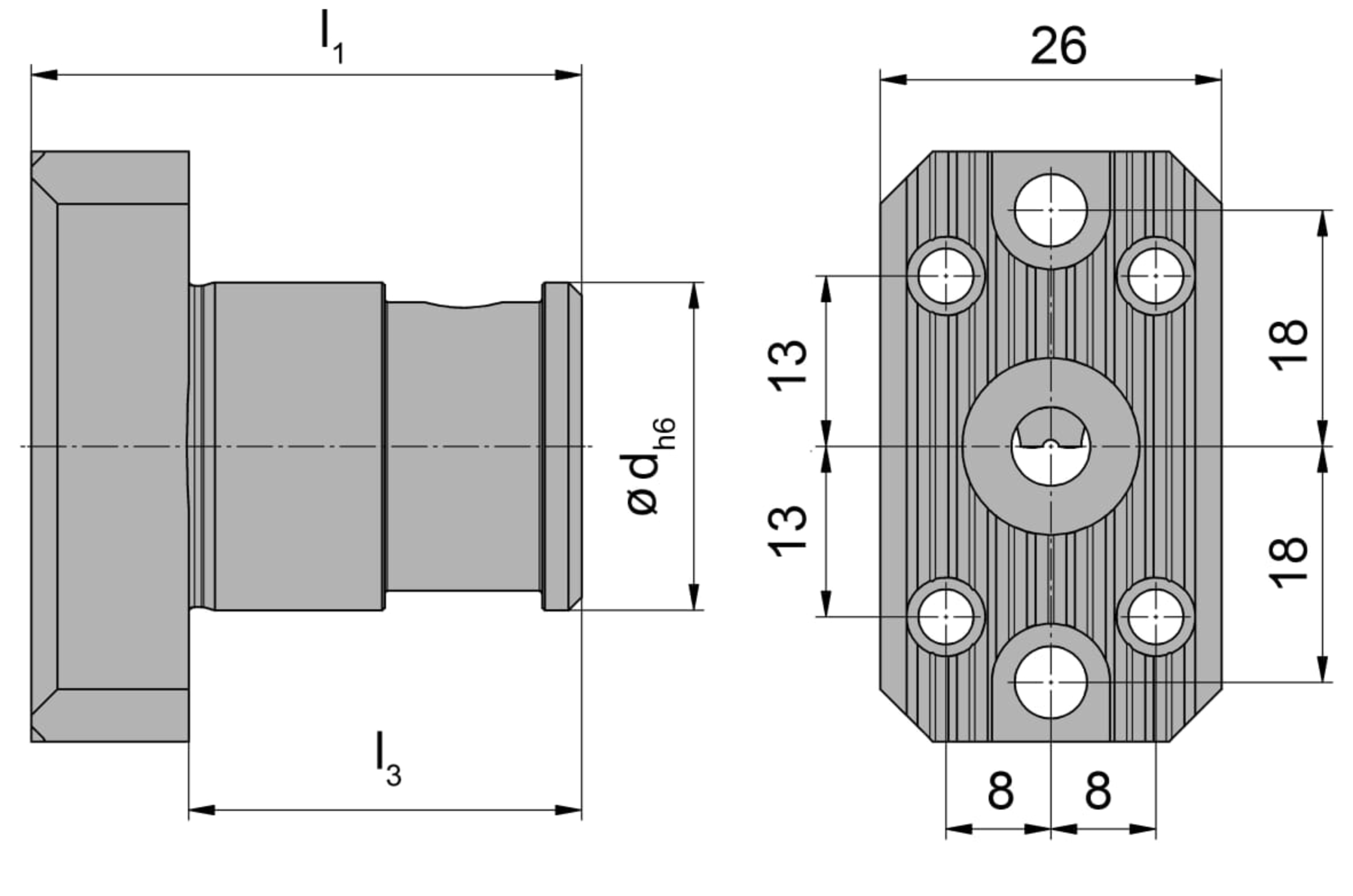

Shank diameter (d)

25 mm

Shank length (l3)

30 mm

Machine type (Maschinentyp)

Citizen L20X

Katalog_CCTMS

Kerbverzahnung 90° / T3

Total length (l1)

42 mm

eclass-shortcut

21-18-10-18

Downloads
BGT001C02530IK.DXF	Download
BGT001C02530IK_20230112_171635340.STP	Download
Download all files
