CCGT060204E2.N SG3GC
CBN-ISO Inserts
Part number CCGT060204E2NSG3GC
HORN CBN-ISO Inserts CCGT060204E2.N SG3GC for Turning

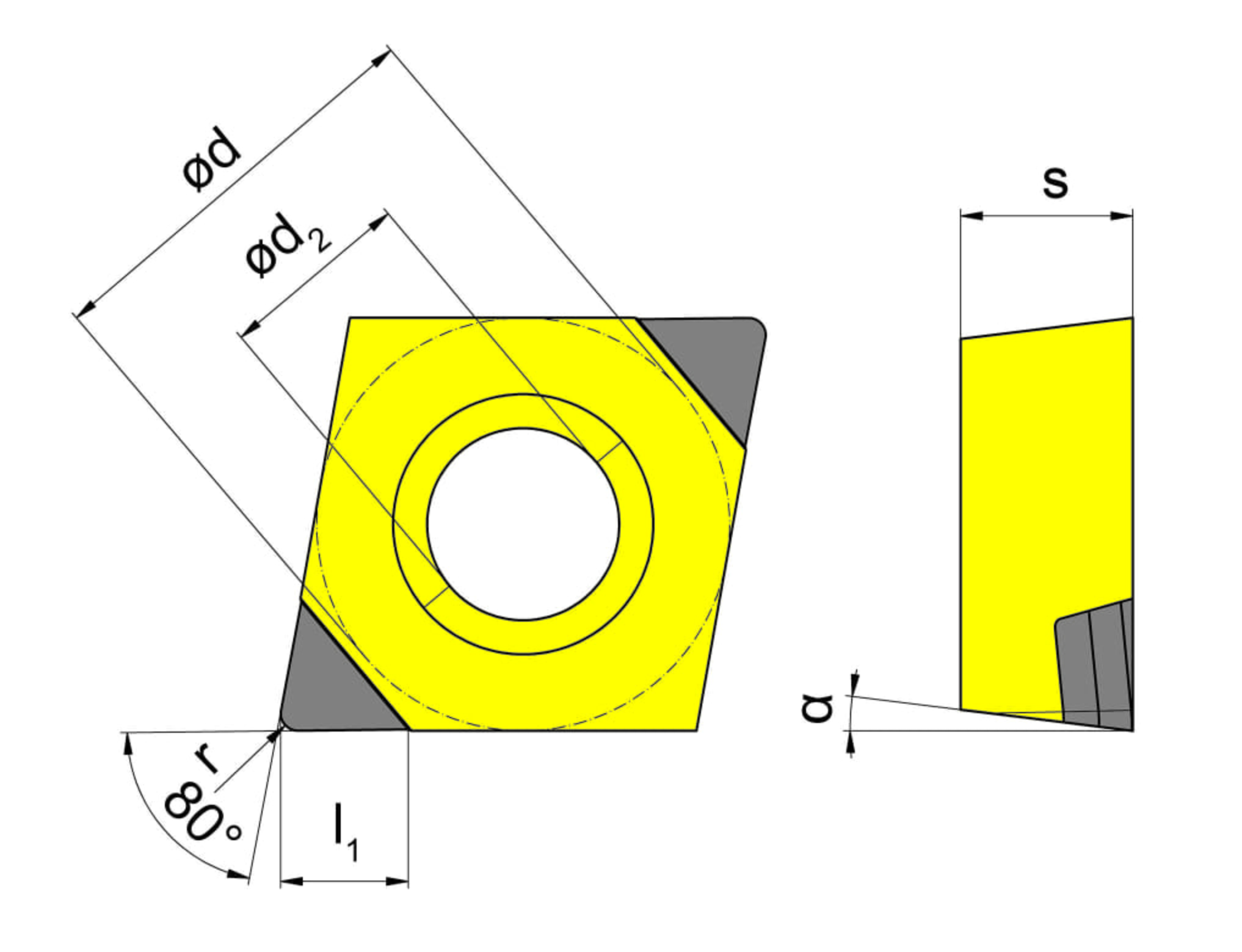

Please note:Technical instructions
Number of teeth (Z)
2
St.
Bore diameter (d2)
2.8
mm
Free angle (α)
7
°
Corner radius (r)
0.4
mm
Cutting insert height, Cutting insert thickness (s)
2.38
mm
Effective cutting length (l1)
3
mm
Inner circle diameter (d)
6.35
mm
