D1122.03.A0350C ES35

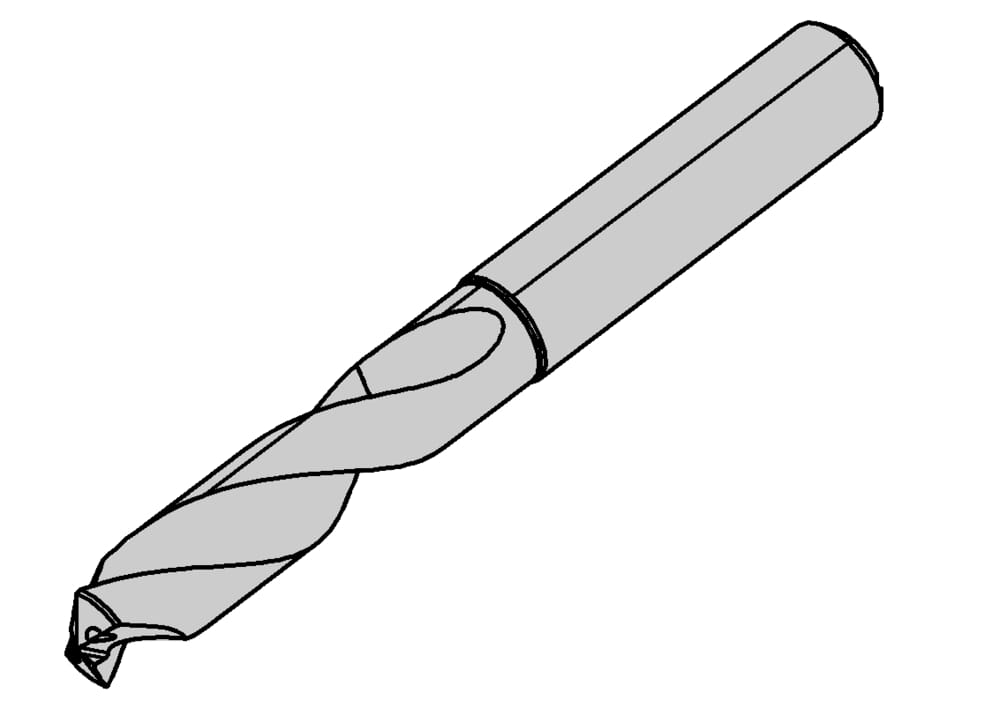

Solid carbide drill DIN6537 short
Part number D112203A0350CES35
HORN Solid carbide drill DIN6537 short D1122.03.A0350C ES35 for Drilling
Please note:Technical instructions

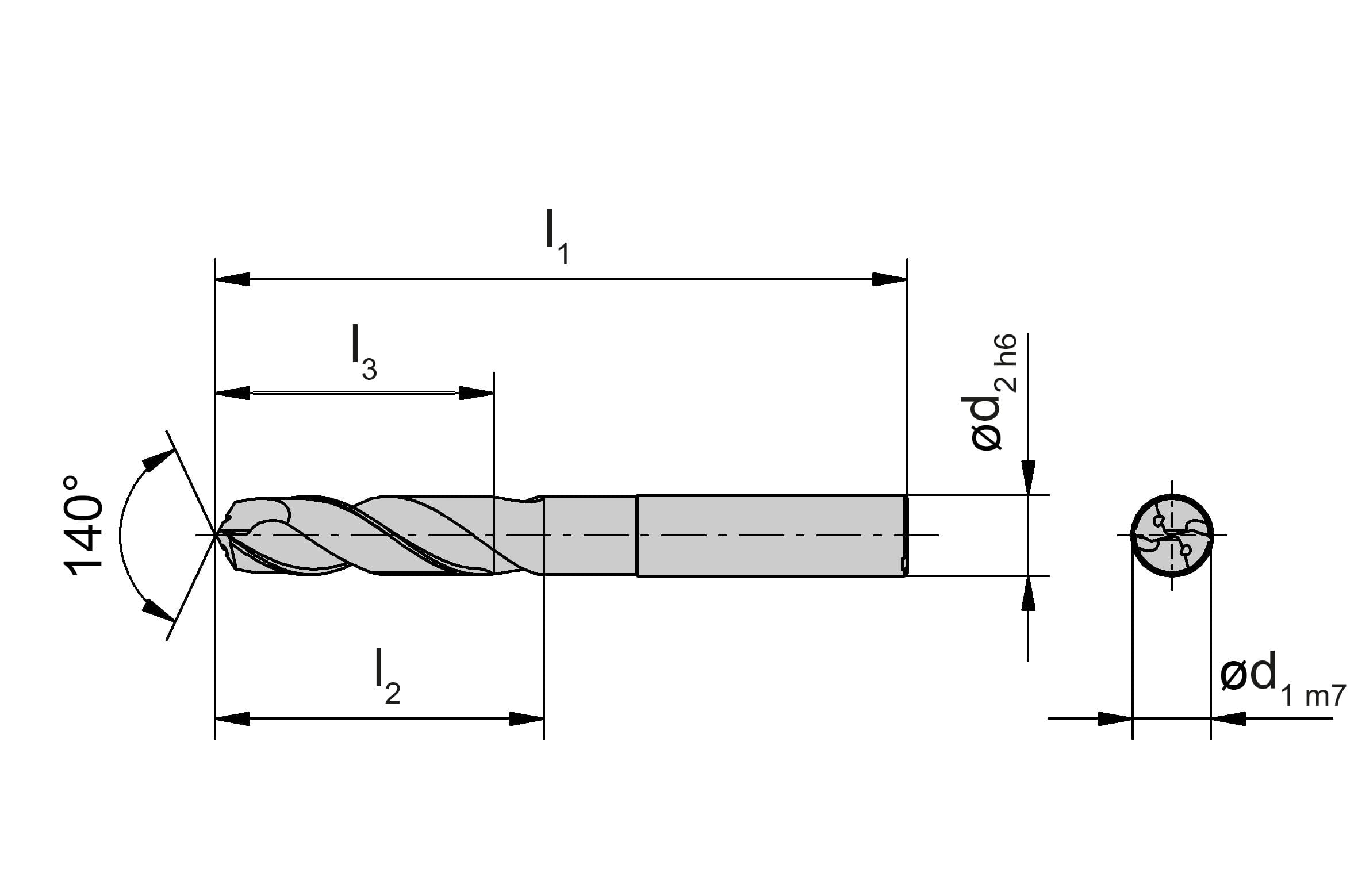

Shank diameter (d2h6)
6
mm
Chip flute length (l2)
20
mm
Nominal diameter (d1m7)
3.5
mm
Drilling depth (l3)
14
mm
Form (Form)
DIN 6335 HA
Total length (l1)
62
mm
| Downloads | |
|---|---|
| D112203A0350C.STP | Download |
| Download all files | |
