LH100.2020.3.05
Toolholder
Part number LH1002020305

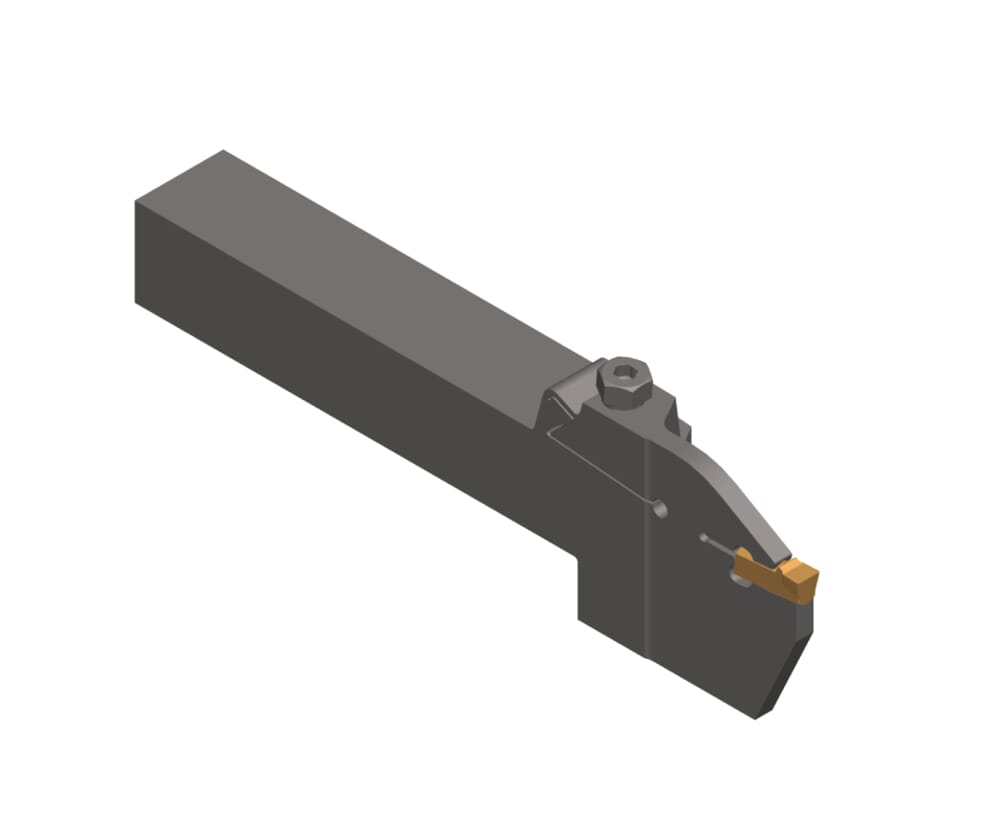

HORN Toolholder LH100.2020.3.05 for Turning
Please note:Technical instructions
Adjustment dimension (formula) (f)
f1+w/2
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200105
Katalog_CCTWS
100058
DIN_CCTWS
HORN-100050058N
ISO_CCTWS
HORN100050058N$$$$$
Head length top (including cutting edge) (l3)
60
mm
Head length (including cutting edge) (l2)
50
mm
Peak height (h1)
32
mm
Maximum insertion depth (tmax)
33
mm
Shank height (h)
20
mm
Size (Größe)
5
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
17.7
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| LH1002020305_20210627_015130593.DXF | Download |
| LH1002020305_20230113_120146092.STP | Download |
| Download all files | |
