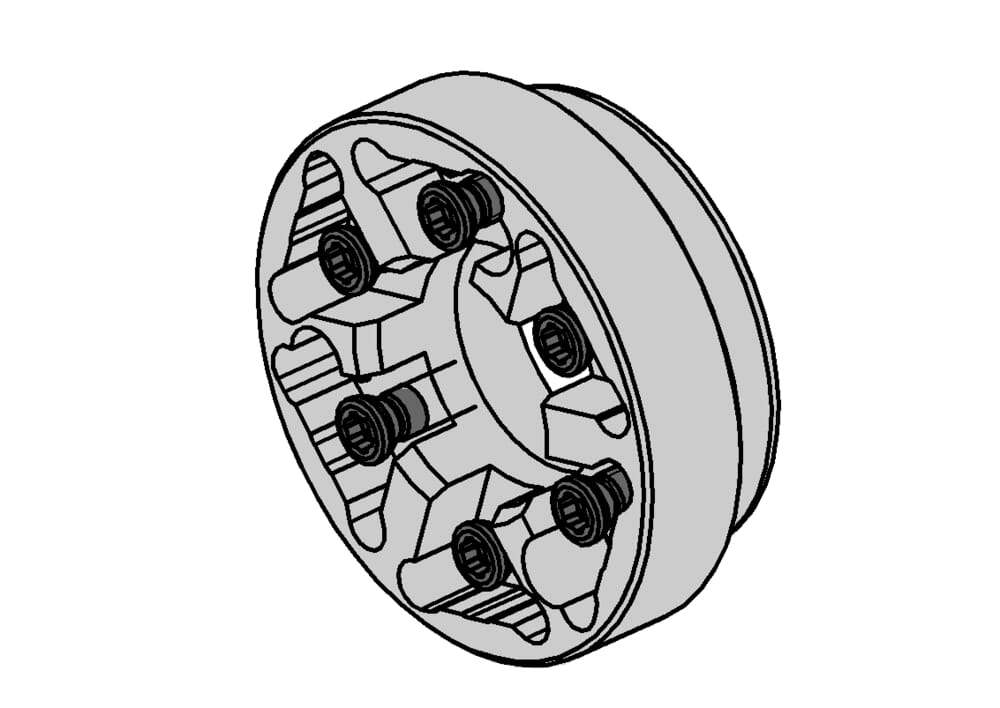

M302.U012.22.52.06
whirling head
Part number M302U012225206
HORN whirling head M302.U012.22.52.06 for Gewinden
Please note:Technical instructions

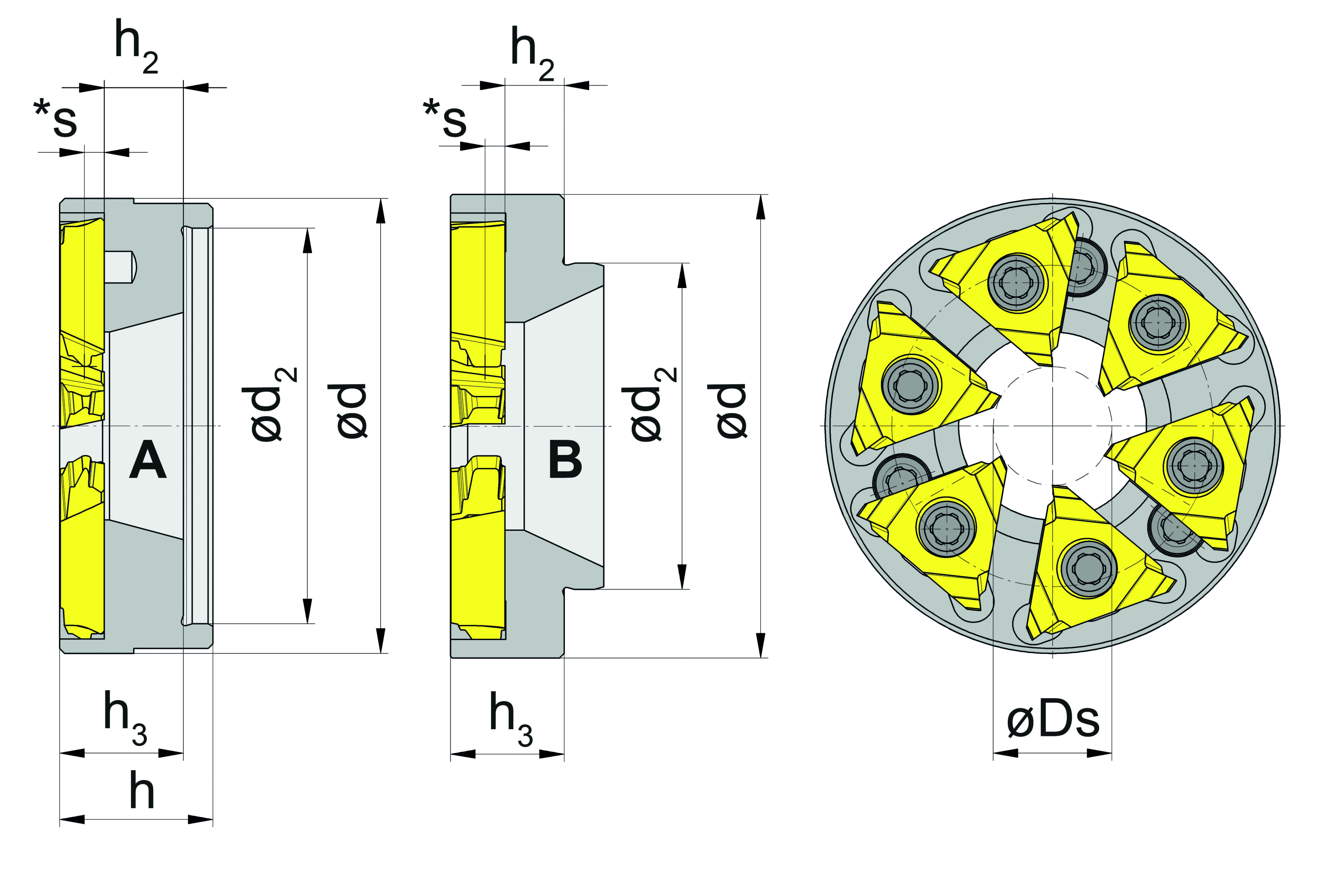

Cutting diameter (Ds)
12
mm
Number of teeth (Z)
6
St.
Total hight (h)
22
mm
Centre of form (h2)
20.05
mm
External diameter (d)
54
mm
Drive unit diameter (d2)
52
mm
Form (Form)
B
eclass-shortcut
21-18-15-90
