R368.1212.11
Toolholders
Part number R368121211

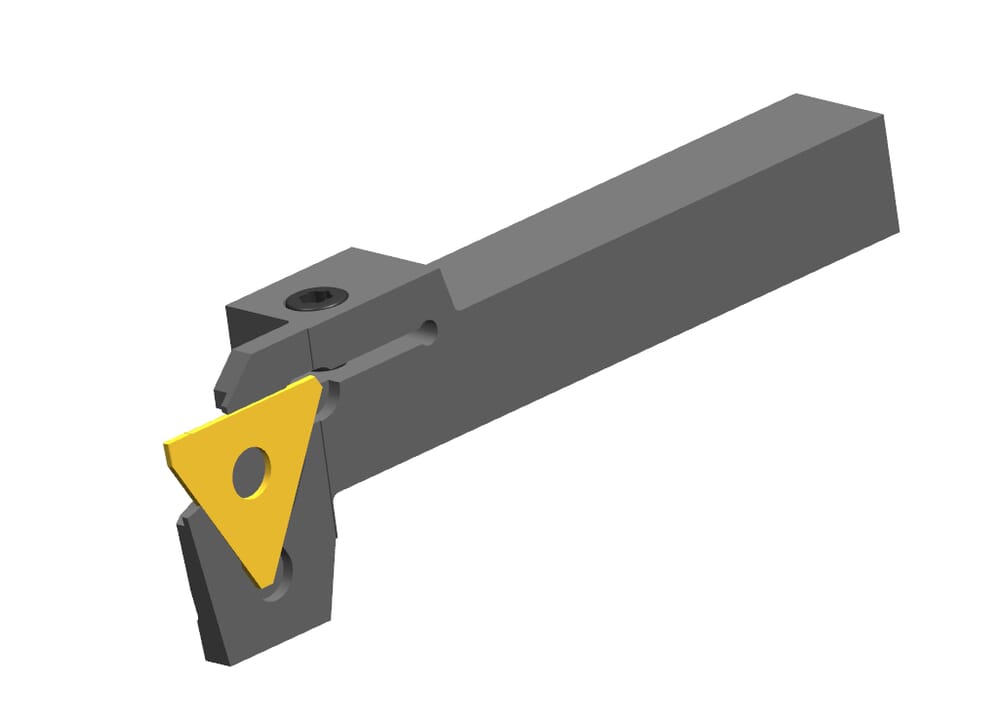

HORN Toolholders R368.1212.11 for Turning
Please note:Technical instructions

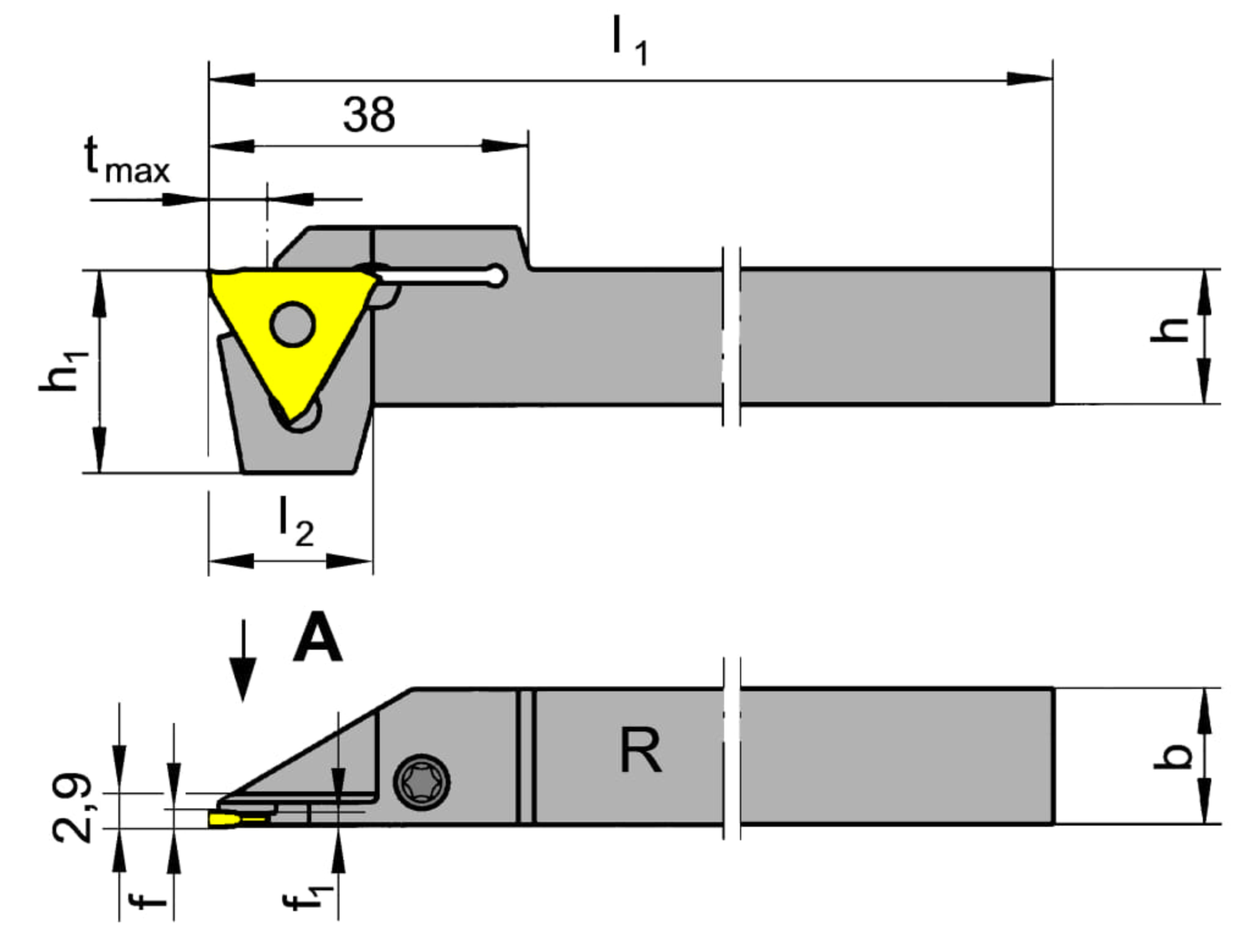

Head length (including cutting edge) (l2)
19.5
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A1212$$$$
DIN_CCTMS
VKT12120105
Katalog_CCTWS
31211N
DIN_CCTWS
HORN-31211000N
ISO_CCTWS
HORN-31211$000N$$$$$
Adjustment dimension locating face insert (f1)
1.3
mm
Adjustment dimension (formula) (f)
f1+a1
Peak height (h1)
24
mm
Maximum depth of groove (tmax)
8
mm
Shank height (h)
12
mm
Total length (including cutting insert) (l1)
95
mm
Shank width (b)
12
mm
| Downloads | |
|---|---|
| R368121211.DXF | Download |
| R368_1212_11_20171121_202732927.STP | Download |
| Download all files | |
