R369.2020.01

Toolholders

Part number R369202001

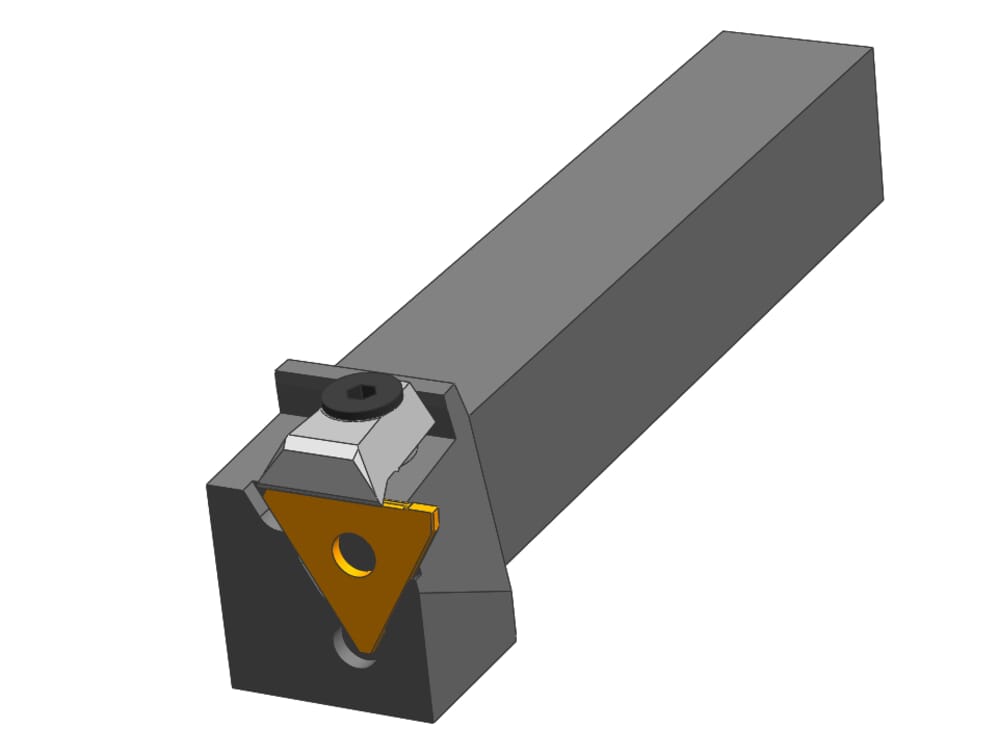

HORN Toolholders R369.2020.01 for Turning

Clamping range maximum (Spannbereich)

1.9 mm

eclass-shortcut

21-18-10-04

Plating seat size (Größe)

ISO_CCTMS

VKT01A2020$$$$

DIN_CCTMS

VKT20200105

Katalog_CCTWS

31201N;31201R;31201L;31208N;31211N

DIN_CCTWS

HORN-31201000N;HORN-31201000R;HORN-31201000L;HORN-31208000N;HORN-31211000N

ISO_CCTWS

HORN-31201$000N$$$$$;HORN-31201$000R$$$$$;HORN-31201$000L$$$$$;HORN-31208$000N$$$$$;HORN-31211$000N$$$$$

Head length bottom without insert (l2)

20 mm

Head width bottom (f2)

23.5 mm

Length overall formula (l1)

l-f1+w-a1

Clamping range minimum (Spannbereich)

0.5 mm

Peak height (h1)

25 mm

Insert width (f1)

1.5 mm

Maximum depth of groove (tmax)

4 mm

Shank height (h)

20 mm

Total length (without cutting insert) (l)

125 mm

Adjustment dimension (f)

27 mm

Shank width (b)

20 mm
