R369.2020.03

Toolholders

Part number R369202003

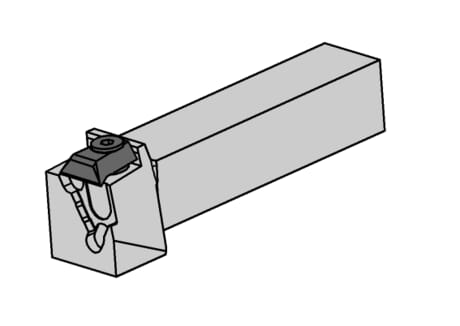

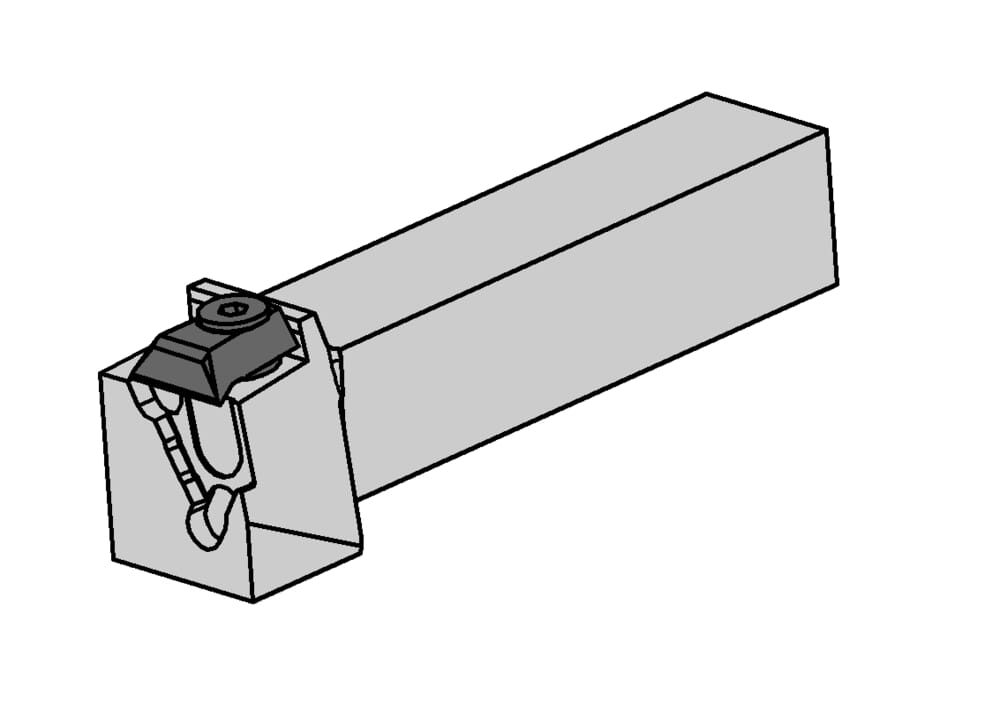

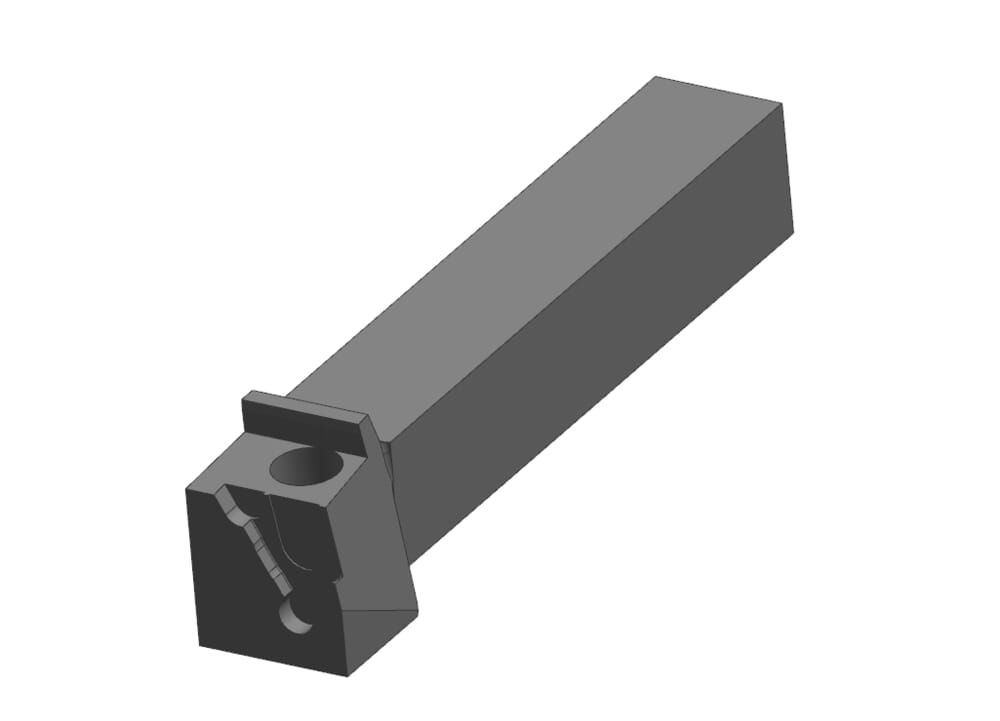

HORN Toolholders R369.2020.03 for Turning

Clamping range maximum (Spannbereich)

3.9 mm

eclass-shortcut

21-18-10-04

Plating seat size (Größe)

ISO_CCTMS

VKT01A2020$$$$

DIN_CCTMS

VKT20200105

Katalog_CCTWS

31203N;31203R;31203L

DIN_CCTWS

HORN-31203000N;HORN-31203000R;HORN-31203000L

ISO_CCTWS

HORN-31203$000N$$$$$;HORN-31203$000R$$$$$;HORN-31203$000L$$$$$

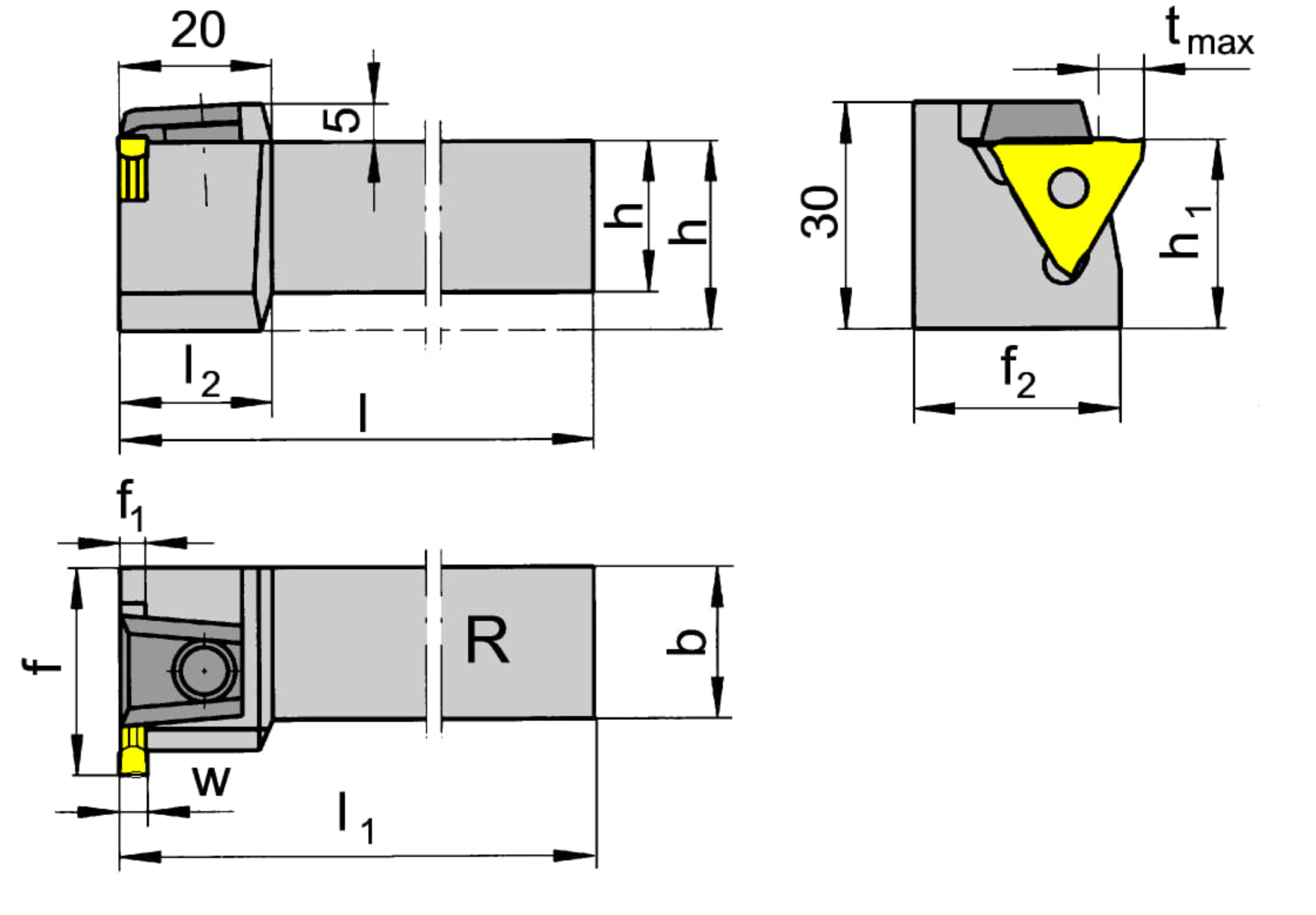

Head length bottom without insert (l2)

20 mm

Head width bottom (f2)

23.5 mm

Length overall formula (l1)

l-f1+w-a1

Clamping range minimum (Spannbereich)

2.9 mm

Peak height (h1)

25 mm

Insert width (f1)

3.5 mm

Maximum depth of groove (tmax)

6 mm

Shank height (h)

20 mm

Total length (without cutting insert) (l)

125 mm

Adjustment dimension (f)

27 mm

Shank width (b)

20 mm
