RB105.00C3.20.1.01
Toolholder
Part number RB10500C320101

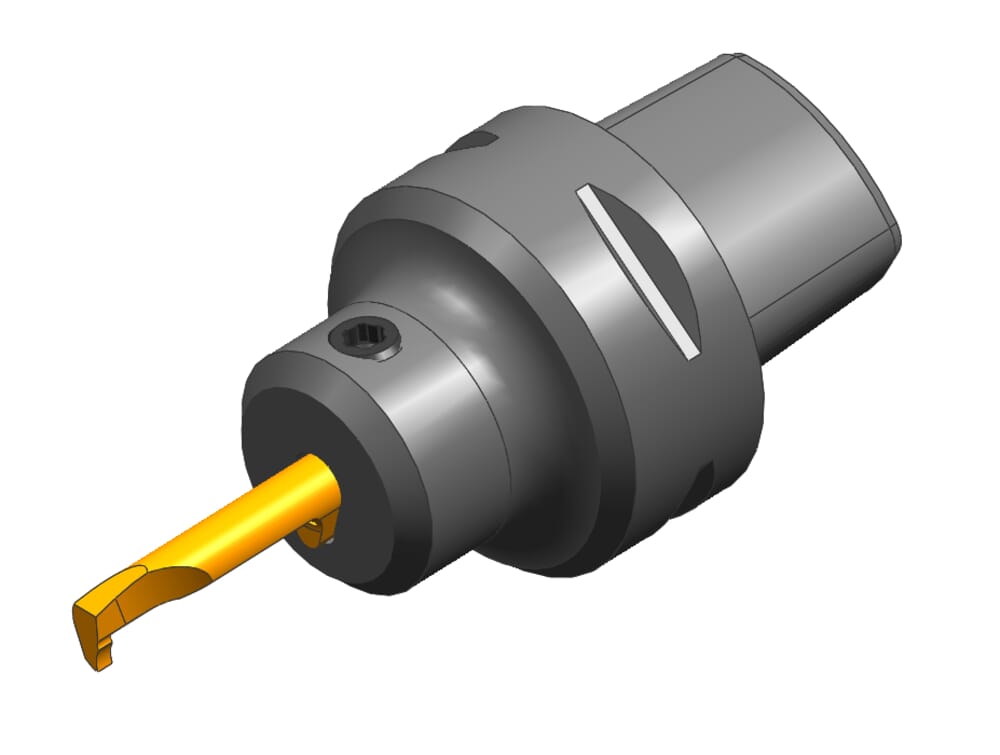

HORN Toolholder RB105.00C3.20.1.01 for Turning
Please note:Technical instructions

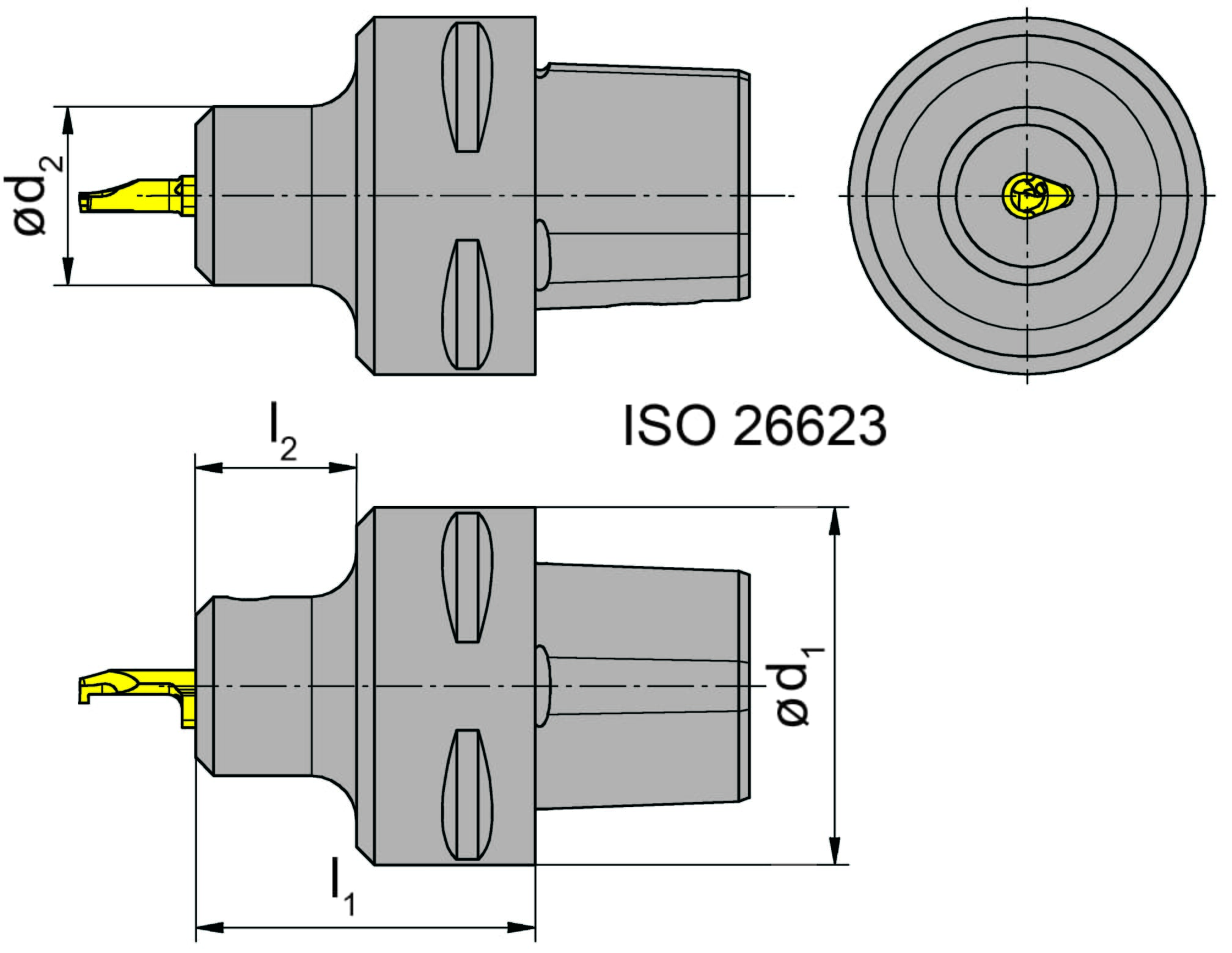

Bore diameter rotate (d1)
32
mm
Length from bore (l1)
30
mm
Working length, Extension length (l2)
15
mm
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
DIN_CCTMS
CCS03200195
ISO_CCTMS
CCS01C0320$$$$
Neck diameter (d2)
20
mm
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| RB10500C320101_20210628_234519648.DXF | Download |
| RB105_00C3_20_1_01.STP | Download |
| Download all files | |
