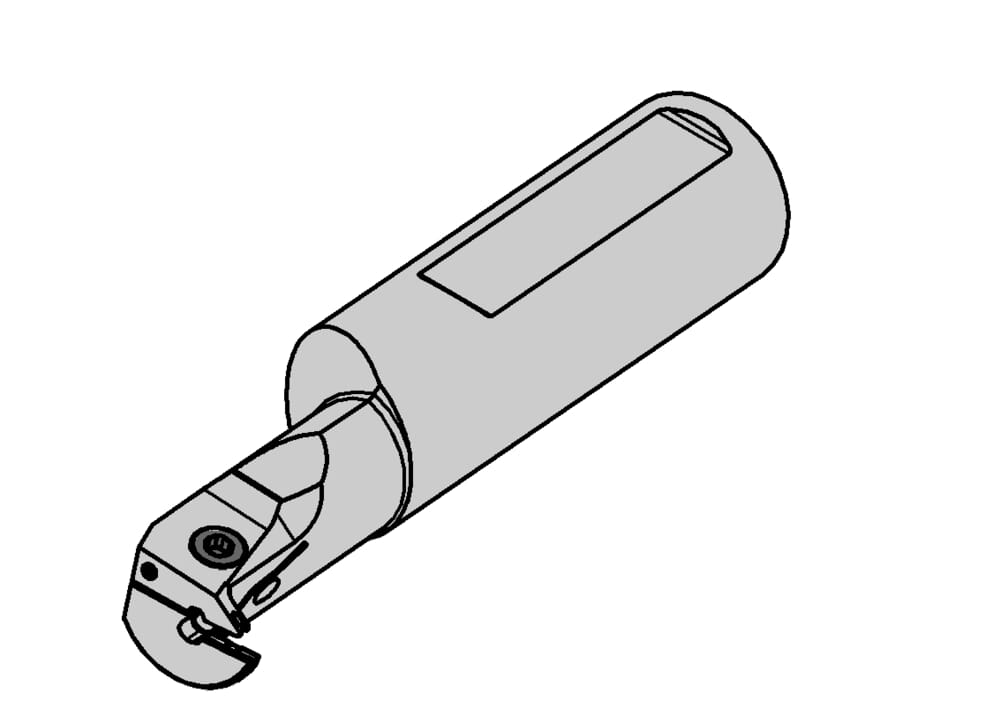

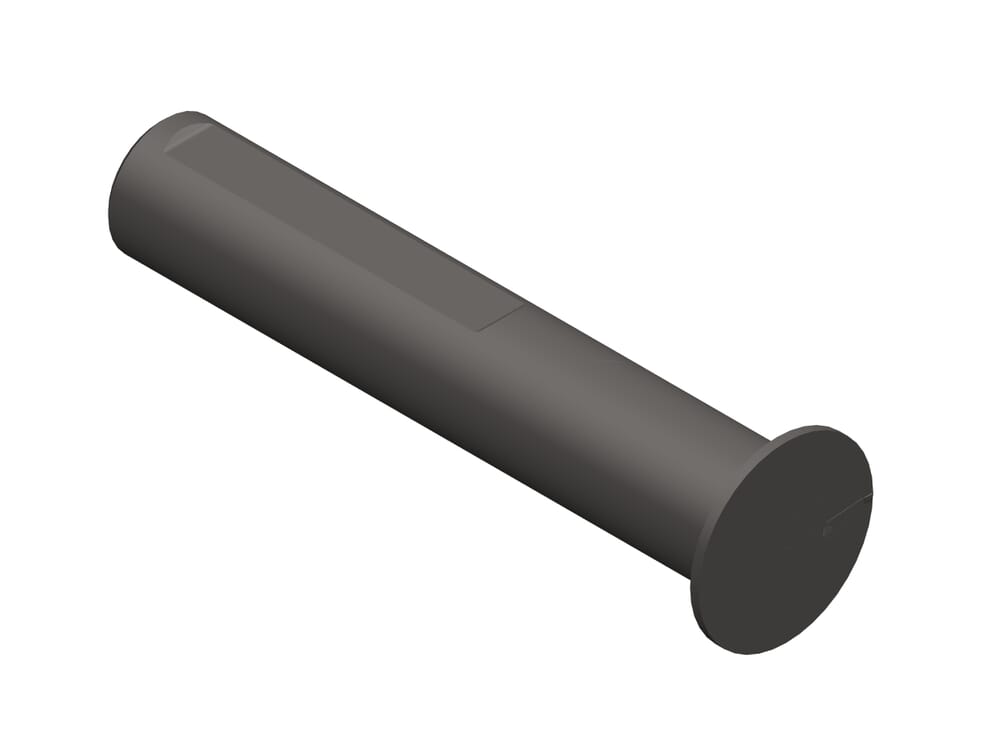

Toolholder type 209
Part number RB2090020113IK
HORN Toolholder type 209 RB209.0020.1.13.IK for Turning
Please note:Technical instructions
Clamping range minimum (Spannbereich)
3
mm
eclass-shortcut
21-18-10-05
Plating seat size (Größe)
30
ISO_CCTMS
ZYL23G2000$$$$
DIN_CCTMS
ZYL02002315
Katalog_CCTWS
20930
DIN_CCTWS
HORN-209300058N
ISO_CCTWS
HORN209300058N$$$$$
Clamping range maximum (Spannbereich)
3
mm

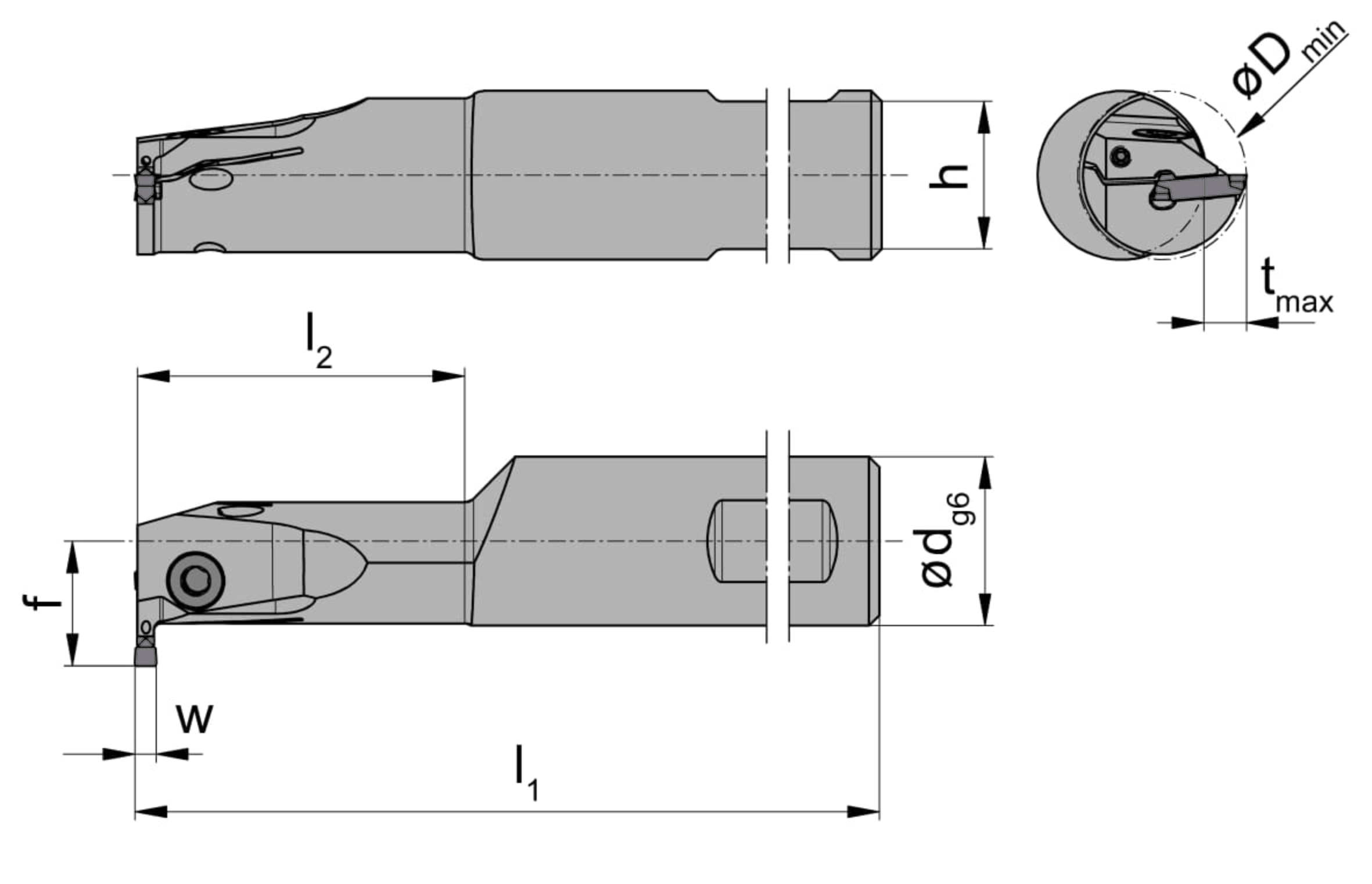

Shank, clamping diameter (d)
20
Minimum drilling diameter (Dmin)
18
mm
Maximum depth of groove (tmax)
5
mm
Height clamping surface(s) (h)
18
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension from center (f)
15.3
mm
Outcropping, neck, working length (l2)
30
mm
