RBA114.0016.01
Toolholder
Part number RBA114001601

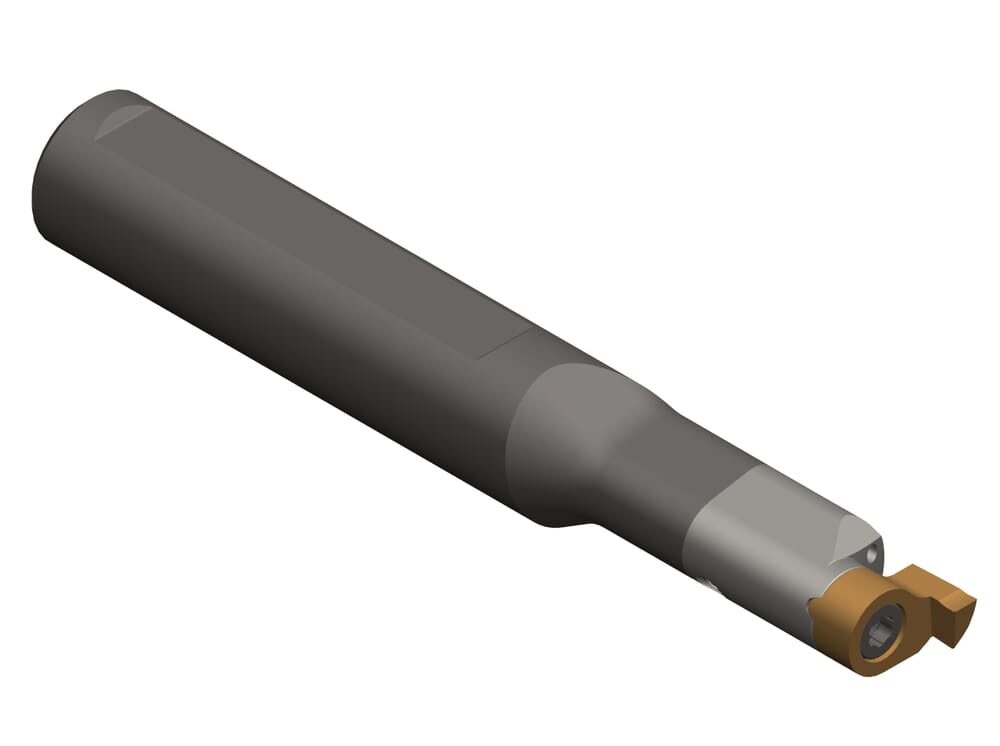

HORN Toolholder RBA114.0016.01 for Turning
Please note:Technical instructions
Shank, clamping diameter (d)
16
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL50G1600$$$$
DIN_CCTMS
ZYL01605015
Katalog_CCTWS
114090R;114090L
DIN_CCTWS
HORN-11409084R;HORN-11409084L
ISO_CCTWS
HORN114090$84R$$$$$;HORN114090$84L$$$$$
Length of clamping surface(s) (l4)
50
mm
Height clamping surface(s) (h)
15
mm
Total length (without cutting insert) (l1)
99.7
mm
Outcropping, neck, working length (l2)
28.7
mm
| Downloads | |
|---|---|
| RBA114001601_20210629_003944424.DXF | Download |
| RBA114001601_20230116_144640861.STP | Download |
| Download all files | |
