RH100.2020.21
Toolholders
Part number RH100202021

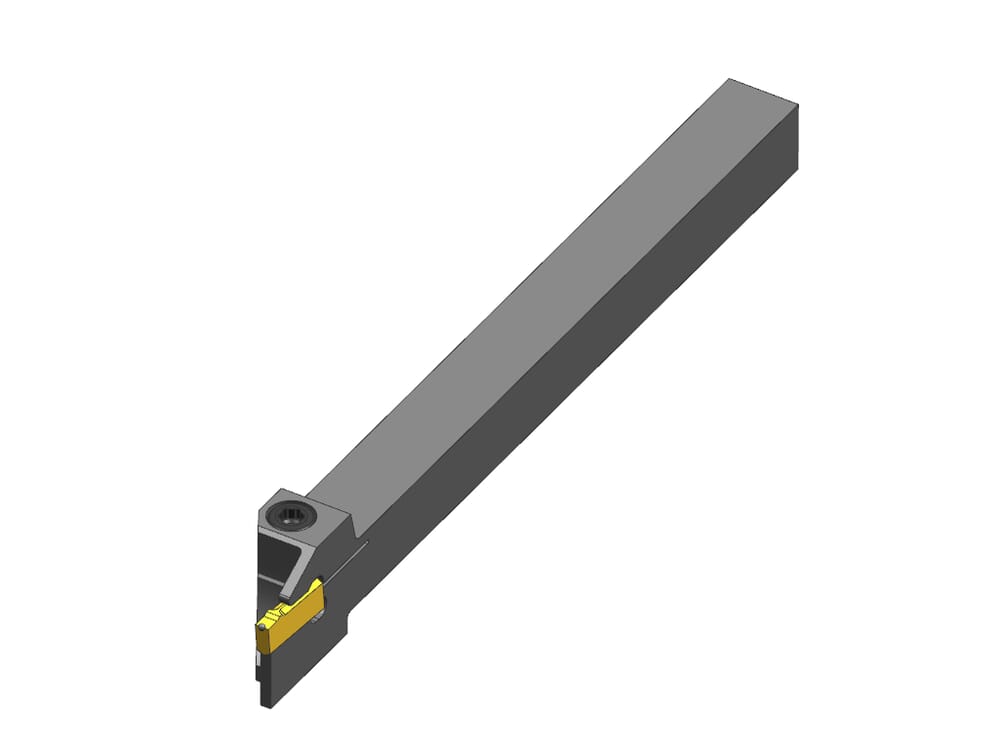

HORN Toolholders RH100.2020.21 for Turning
Please note:Technical instructions
Maximum workpiece diameter (Dmax)
42
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200105
Katalog_CCTWS
100018
DIN_CCTWS
HORN-100010058N
ISO_CCTWS
HORN100010058N$$$$$
Head length top (including cutting edge) (l3)
33.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
20
mm
Maximum insertion depth (tmax)
21
mm
Head height (HK)
25
mm
Shank height (h)
20
mm
Size (Größe)
1
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
19.25
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| RH100202021.DXF | Download |
| RH100_2020_21_20171121_214121701.STP | Download |
| Download all files | |
