RH100.2525.14
Toolholders
Part number RH100252514

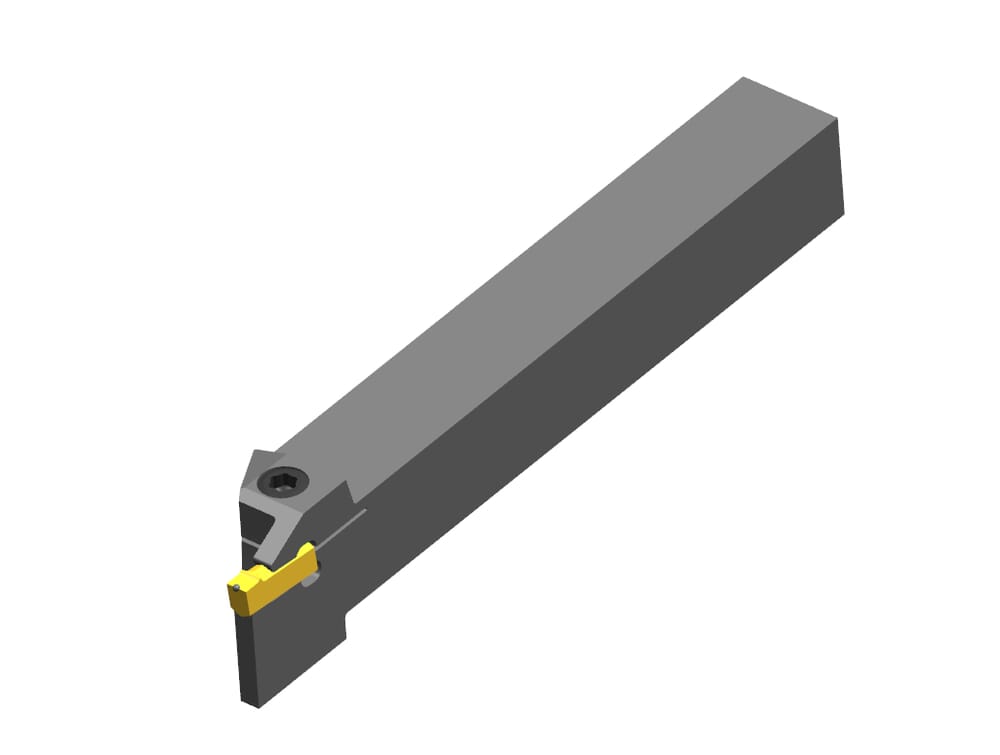

HORN Toolholders RH100.2525.14 for Turning
Please note:Technical instructions
Peak height (h1)
25
mm
eclass-shortcut
21-18-10-04
Form (Form)
A
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
100048
DIN_CCTWS
HORN-100040058N
ISO_CCTWS
HORN100040058N$$$$$
Head length top (including cutting edge) (l3)
28.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
16
mm
Head height (HK)
30
mm
Shank height (h)
25
mm
Size (Größe)
4
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
23.45
mm
Shank width (b)
25
mm
