RH100.2525.21
Toolholder
Part number RH100252521

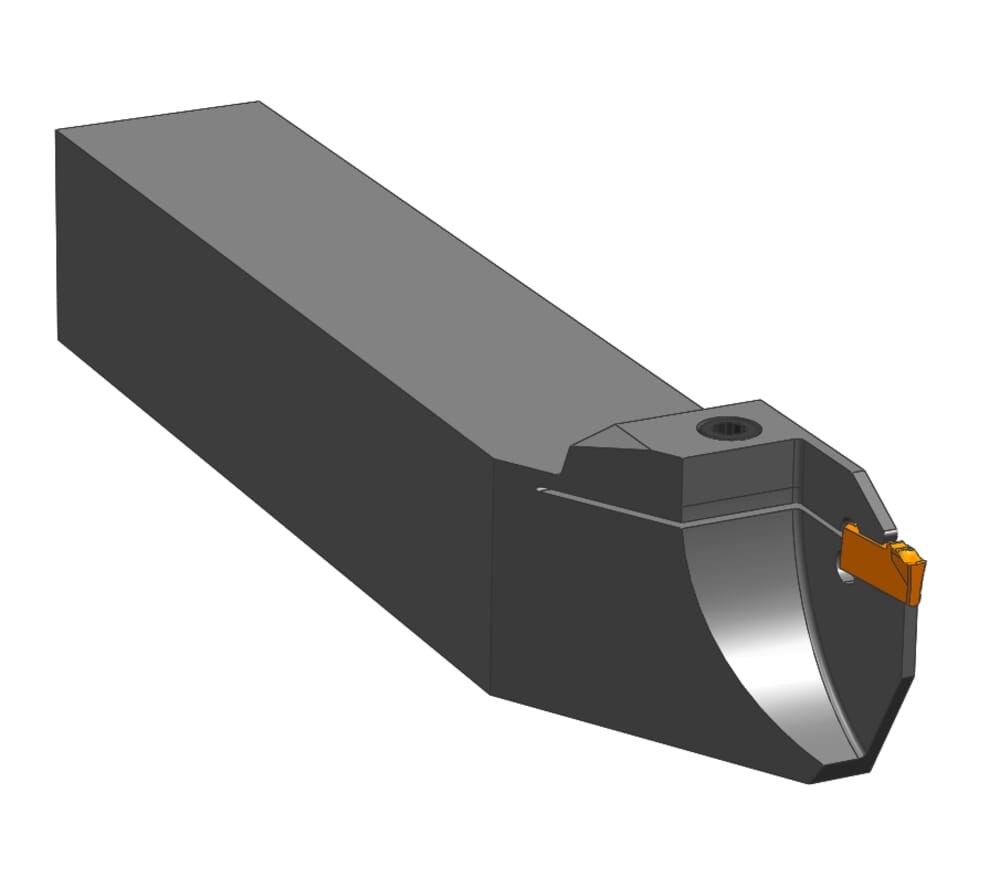

HORN Toolholder RH100.2525.21 for Turning
Please note:Technical instructions
Maximum workpiece diameter (Dmax)
42
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
100018
DIN_CCTWS
HORN-100010058N
ISO_CCTWS
HORN100010058N$$$$$

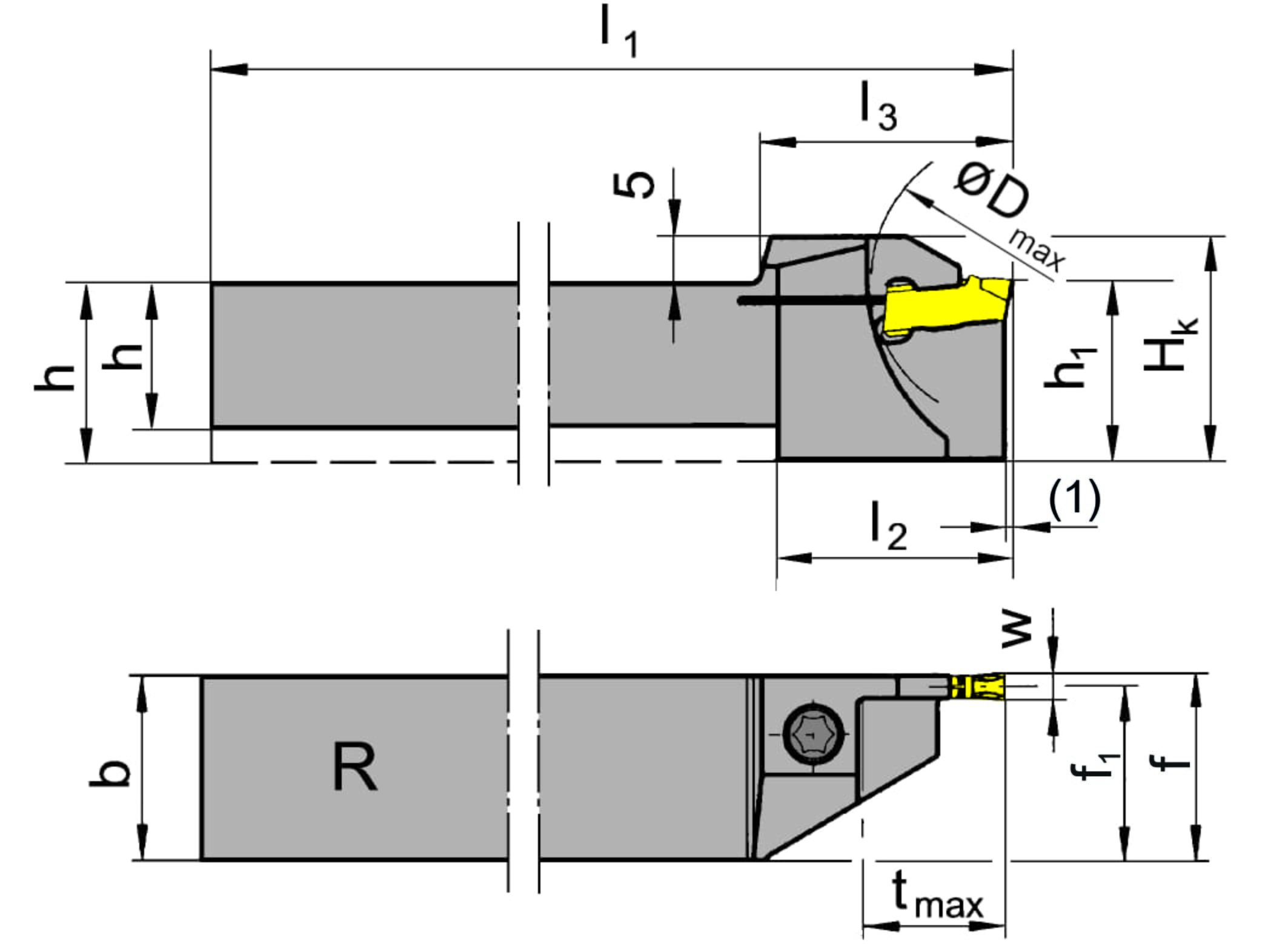

Head length top (including cutting edge) (l3)
33.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
21
mm
Head height (HK)
30
mm
Shank height (h)
25
mm
Size (Größe)
1
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
24.3
mm
Shank width (b)
25
mm
