RH100.2525.73
Toolholder
Part number RH100252573

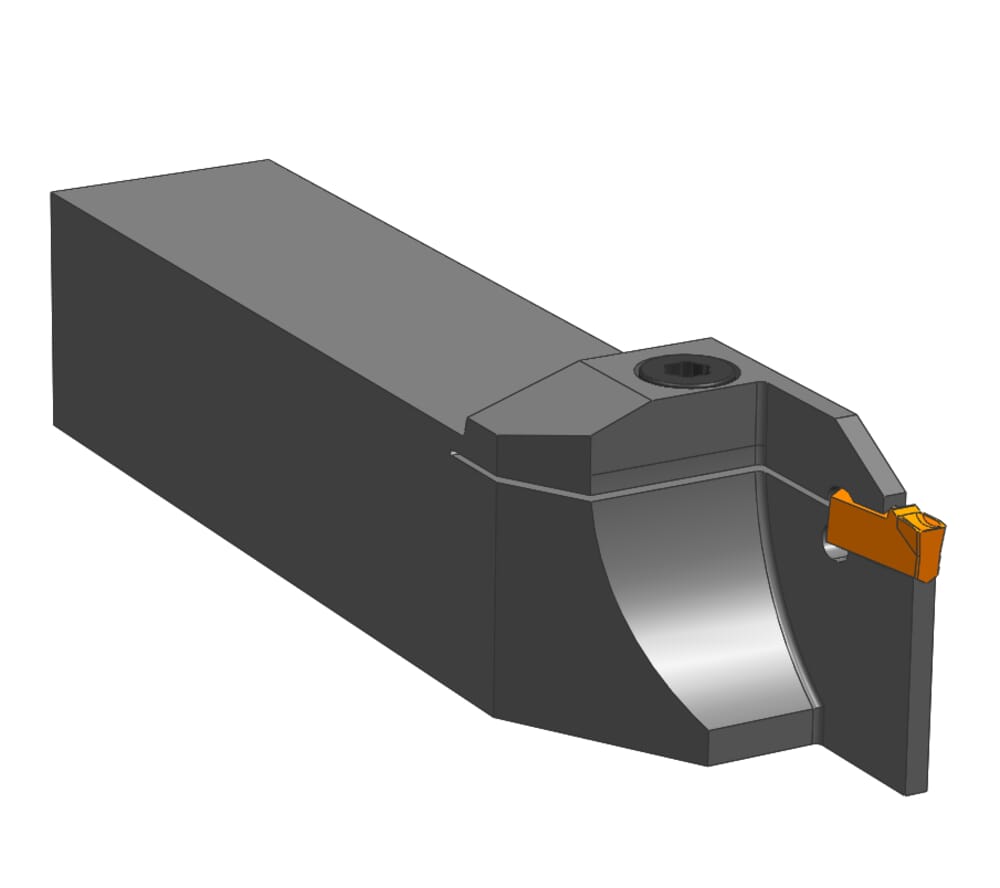

HORN Toolholder RH100.2525.73 for Turning
Please note:Technical instructions

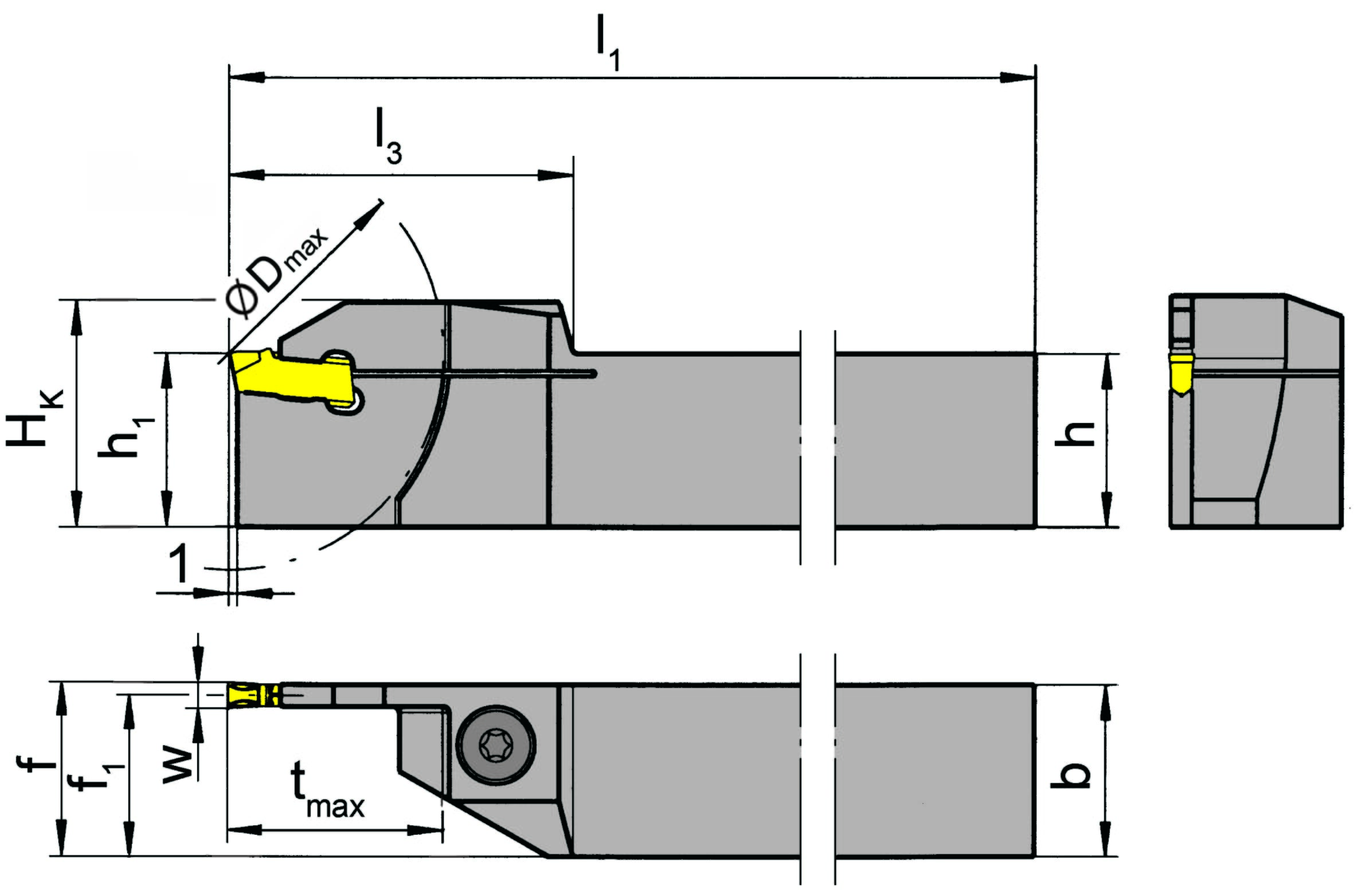

Maximum workpiece diameter (Dmax)
50
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
Head length top (including cutting edge) (l3)
40
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
25
mm
Head height (HK)
31
mm
Shank height (h)
25
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
23.85
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| RH100252573_20210626_083609185.DXF | Download |
| RH100_2525_73_20171121_205644401.STP | Download |
| Download all files | |
