RH100.3225.4.08
Toolholder
Part number RH1003225408

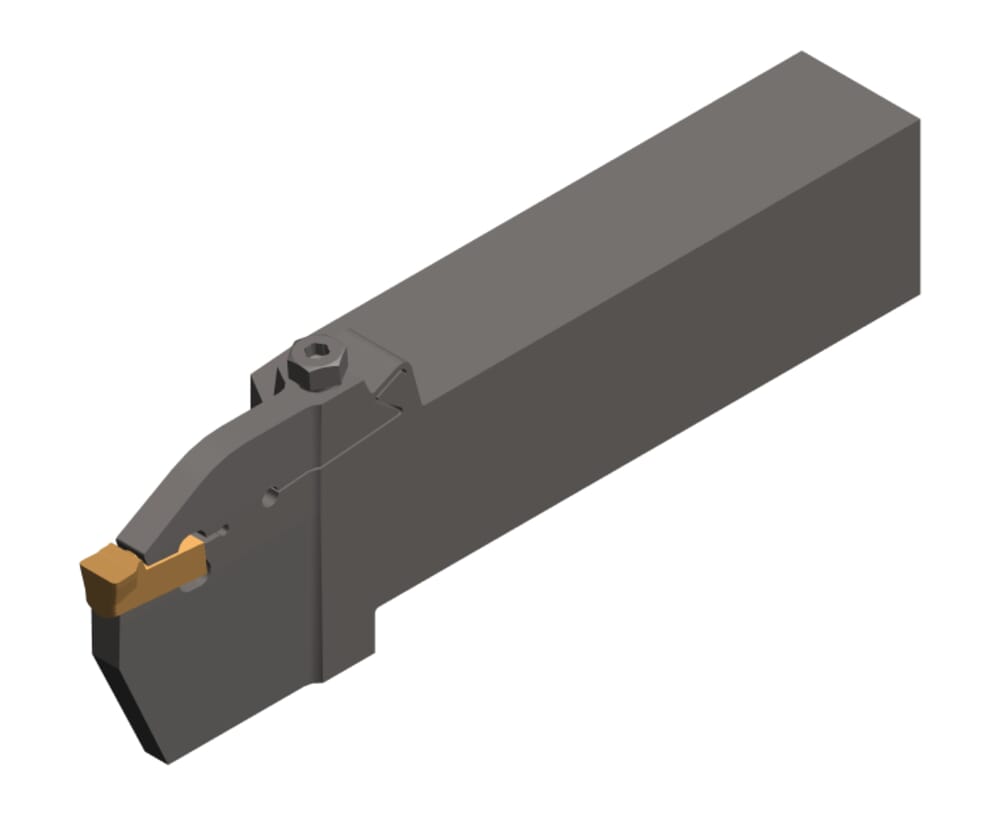

HORN Toolholder RH100.3225.4.08 for Turning
Please note:Technical instructions
Adjustment dimension (formula) (f)
f1+w/2
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A3225$$$$
DIN_CCTMS
VKT32250105
Katalog_CCTWS
100088
DIN_CCTWS
HORN-100080058N
ISO_CCTWS
HORN100080058N$$$$$
Head length top (including cutting edge) (l3)
65
mm
Head length (including cutting edge) (l2)
55
mm
Peak height (h1)
40
mm
Maximum insertion depth (tmax)
41
mm
Shank height (h)
32
mm
Size (Größe)
8
Total length (including cutting insert) (l1)
170
mm
Adjustment dimension cutting center (f1)
21.2
mm
Shank width (b)
25
mm
