RH224.1212.81

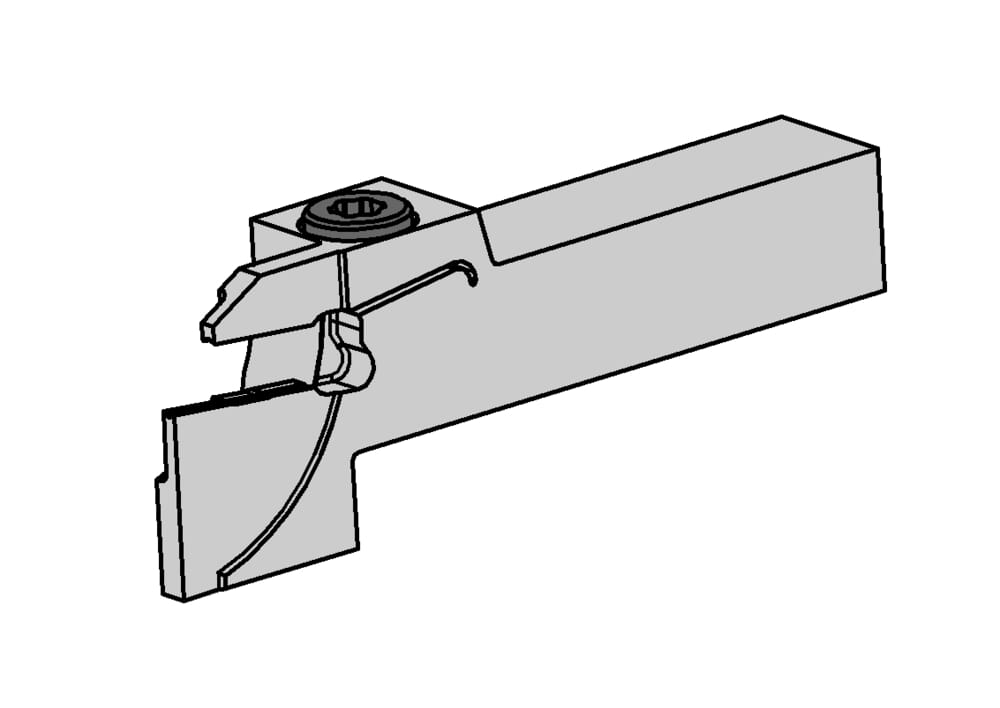

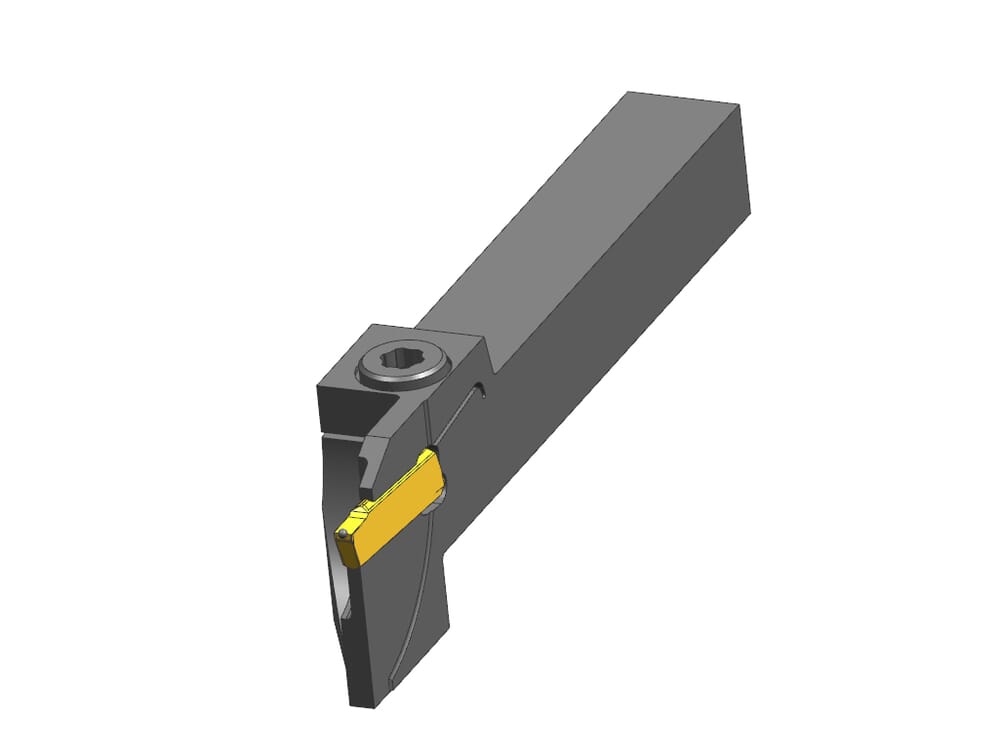

Toolholder
Part number RH224121281
HORN Toolholder RH224.1212.81 for Turning
Please note:Technical instructions

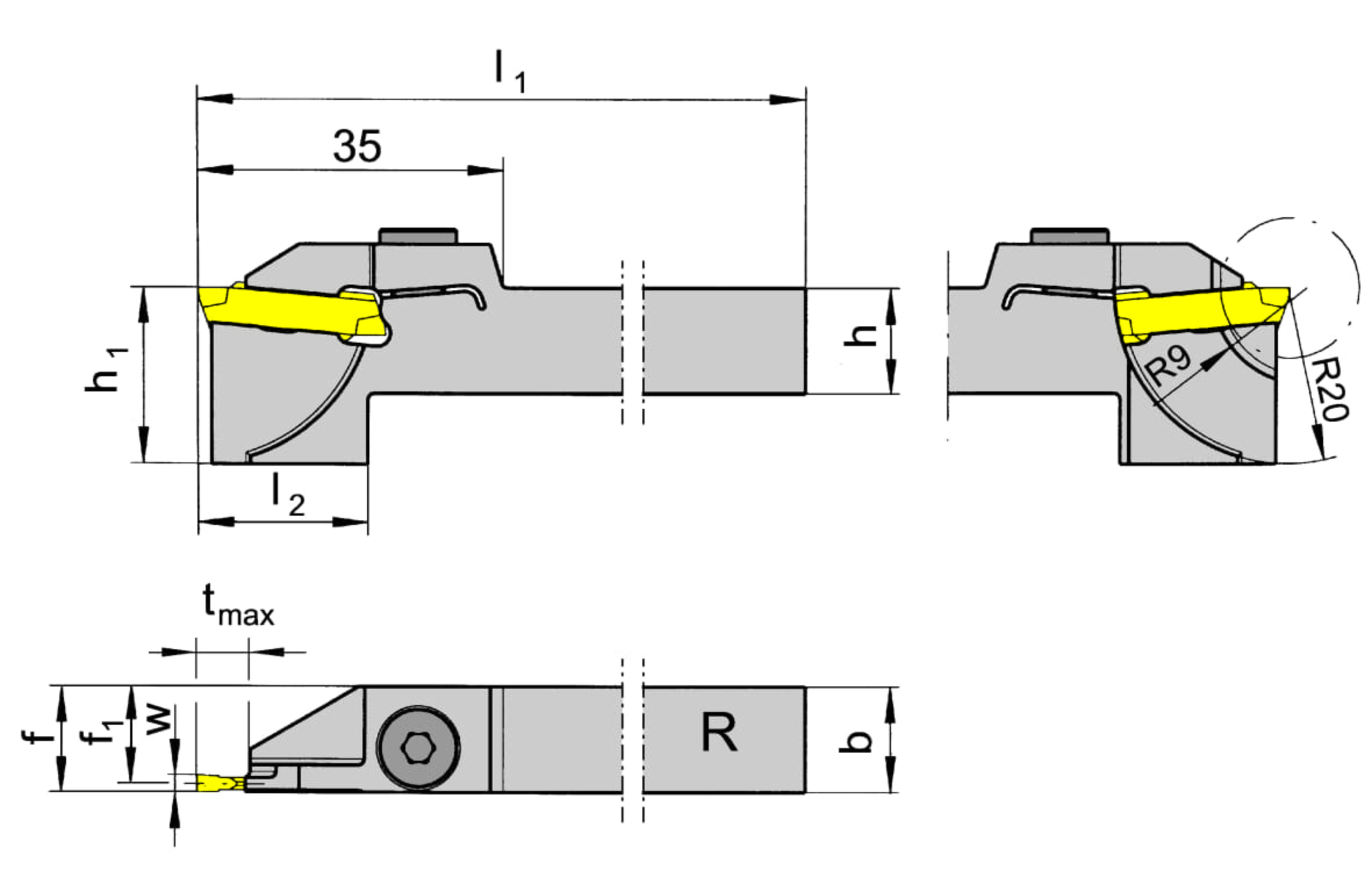

Adjustment dimension (formula) (f)
f1+w/2
eclass-shortcut
21-18-10-04
Width of groove (w)
2
mm
Plating seat size (Größe)
1
ISO_CCTMS
VKT01A1212$$$$
DIN_CCTMS
VKT12120105
Katalog_CCTWS
224018
DIN_CCTWS
HORN-224010058N
ISO_CCTWS
HORN224010058N$$$$$
Head length (including cutting edge) (l2)
19.5
mm
Clamping range maximum (Spannbereich)
2.4
mm
Clamping range minimum (Spannbereich)
2
mm
Peak height (h1)
20
mm
Maximum insertion depth (tmax)
8.2
mm
Shank height (h)
12
mm
Total length (including cutting insert) (l1)
95
mm
Adjustment dimension cutting center (f1)
11.1
mm
Shank width (b)
12
mm
