RH224.1608.02
Toolholder
Part number RH224160802

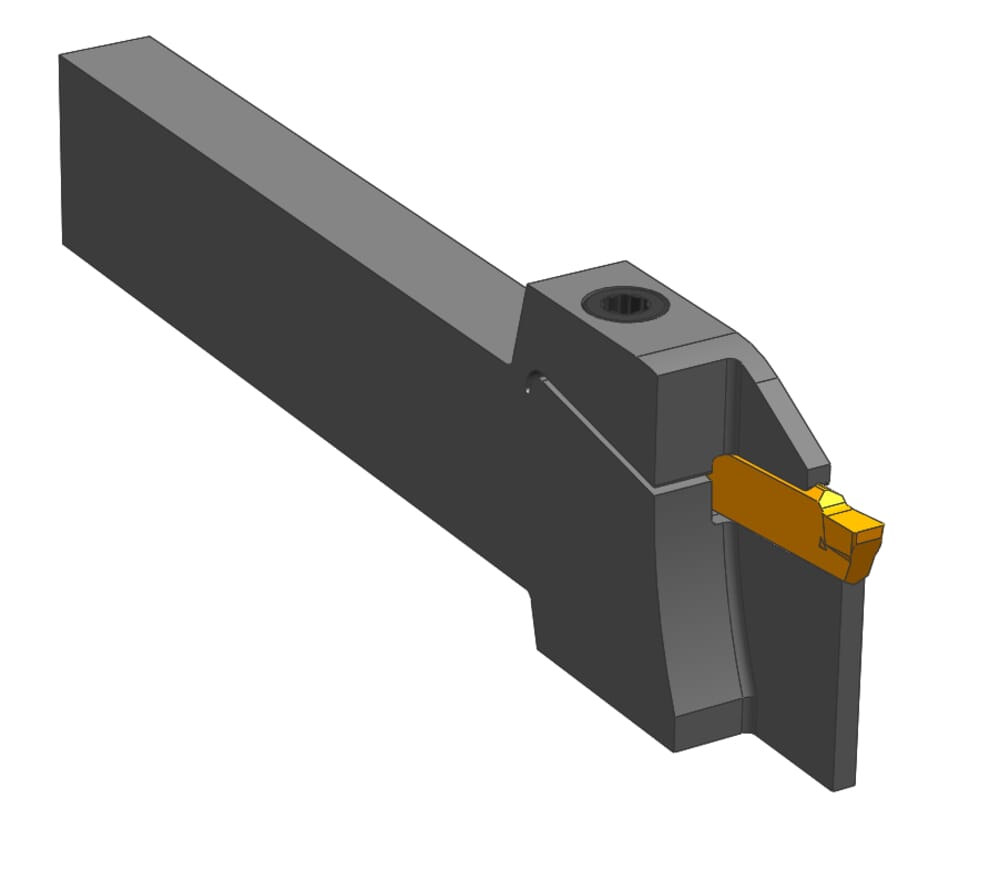

HORN Toolholder RH224.1608.02 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
2.8
mm
eclass-shortcut
21-18-10-04
Width of groove (w)
2.5
mm
Plating seat size (Größe)
2
ISO_CCTMS
VKT01A1608$$$$
DIN_CCTMS
VKT16080105
Katalog_CCTWS
224028
DIN_CCTWS
HORN-224020058N
ISO_CCTWS
HORN224020058N$$$$$
Head length (including cutting edge) (l2)
30
mm
Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
2.4
mm
Peak height (h1)
20
mm
Maximum workpiece diameter (Dmax)
80
mm
Maximum insertion depth (tmax)
14
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
100
mm
Adjustment dimension cutting center (f1)
7.1
mm
Shank width (b)
8
mm
| Downloads | |
|---|---|
| RH224160802_20210626_112830799.DXF | Download |
| RH224_1608_02_20171121_191158847.STP | Download |
| Download all files | |
