RH224.2020.01
Toolholders
Part number RH224202001

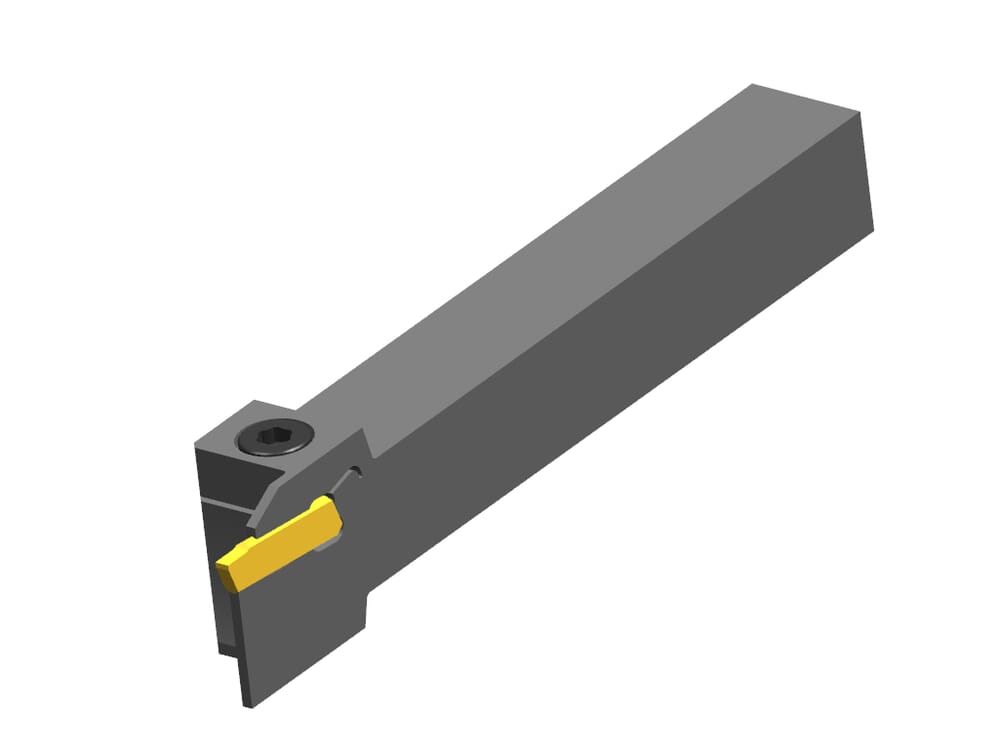

HORN Toolholders RH224.2020.01 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
2.4
mm
eclass-shortcut
21-18-10-04
Width of groove (w)
2
mm
Plating seat size (Größe)
1
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200105
Katalog_CCTWS
224018
DIN_CCTWS
HORN-224010058N
ISO_CCTWS
HORN224010058N$$$$$
Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
2
mm
Peak height (h1)
20
mm
Maximum workpiece diameter (Dmax)
80
mm
Maximum insertion depth (tmax)
14
mm
Shank height (h)
20
mm
Total length (including cutting insert) (l1)
125
mm
Adjustment dimension cutting center (f1)
19.3
mm
Shank width (b)
20
mm
