RH224.2020.63
Toolholder
Part number RH224202063
HORN Toolholder RH224.2020.63 for Turning
Please note:Technical instructions
Clamping range minimum (Spannbereich)
2.8
mm
eclass-shortcut
21-18-10-04
Width of groove (w)
3
mm
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200105
Katalog_CCTWS
224038
DIN_CCTWS
HORN-224030058N
ISO_CCTWS
HORN224030058N$$$$$
Clamping range maximum (Spannbereich)
3.7
mm

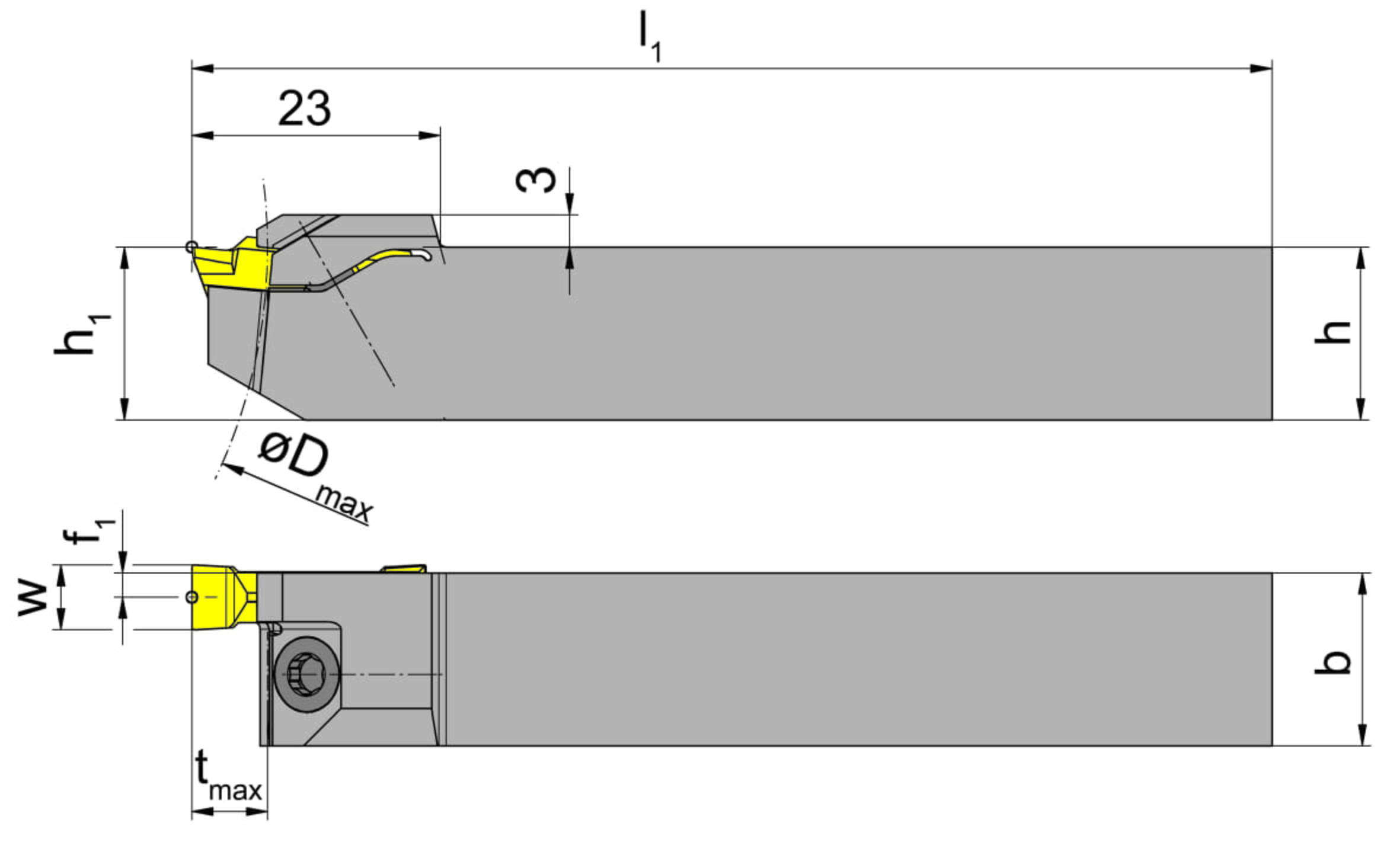

Peak height (h1)
20
mm
Maximum workpiece diameter (Dmax)
100
mm
Maximum insertion depth (tmax)
7
mm
Shank height (h)
20
mm
Total length (including cutting insert) (l1)
100
mm
Adjustment dimension cutting center (f1)
1.1
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| RH224202063.DXF | Download |
| RH224_2020_63.STP | Download |
| Download all files | |
