RH224.2525.24
Toolholders
Part number RH224252524

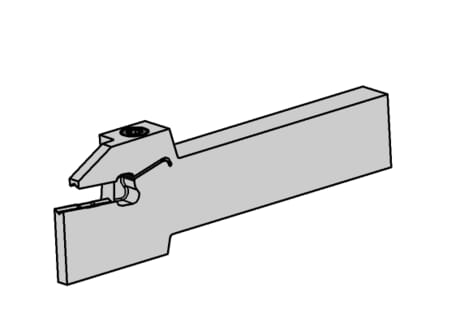

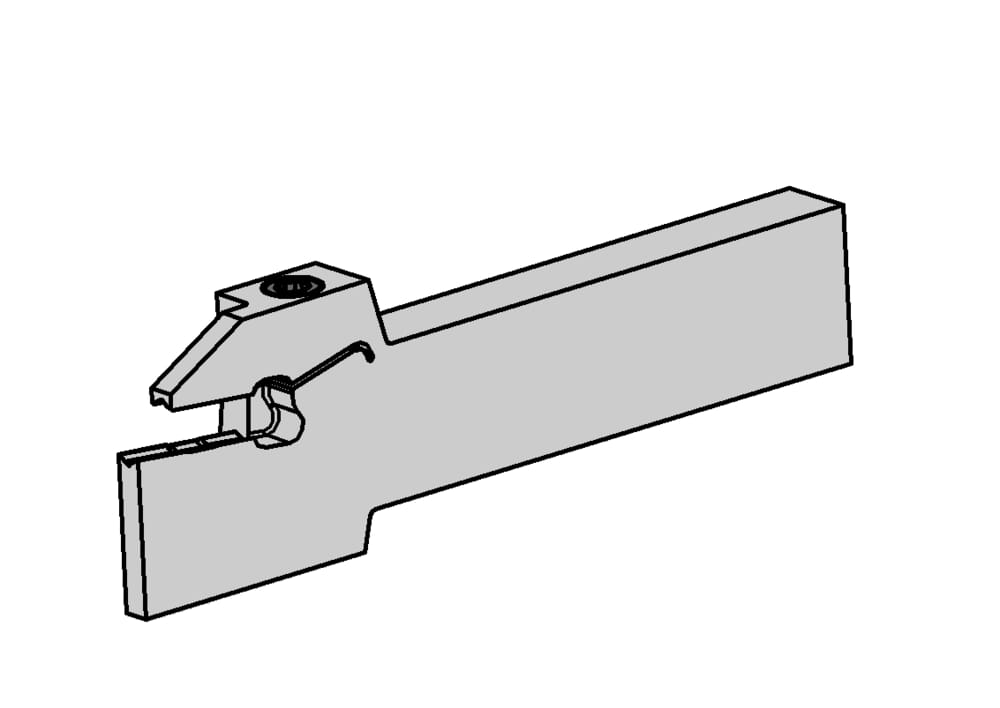

HORN Toolholders RH224.2525.24 for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
4.4
mm
eclass-shortcut
21-18-10-04
Width of groove (w)
4
mm
Plating seat size (Größe)
4
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
224048
DIN_CCTWS
HORN-224040058N
ISO_CCTWS
HORN224040058N$$$$$

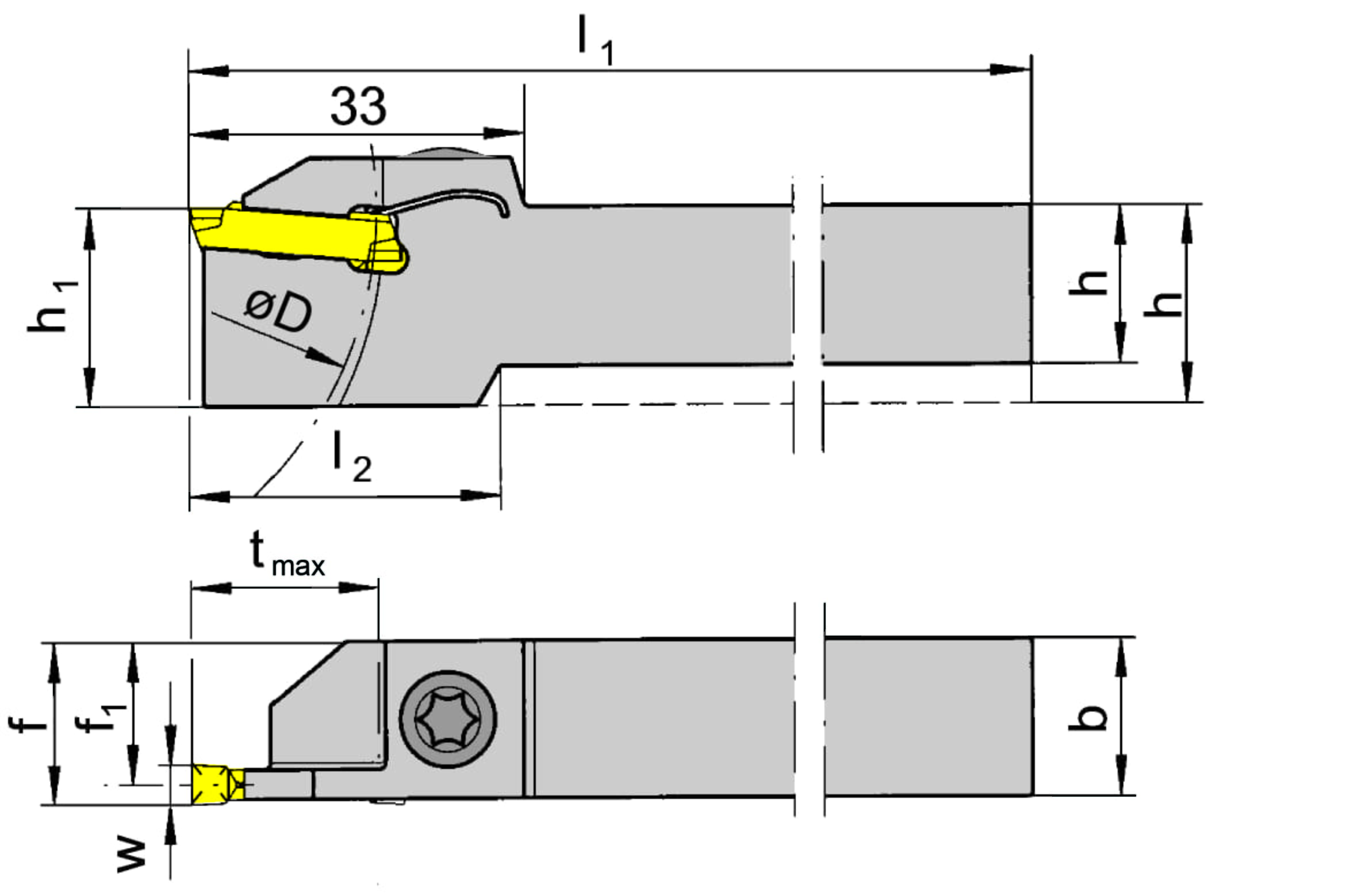

Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
3.7
mm
Peak height (h1)
25
mm
Maximum workpiece diameter (Dmax)
80
mm
Maximum insertion depth (tmax)
18
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
23.5
mm
Shank width (b)
25
mm
