RH264.1616.02
Toolholder
Part number RH264161602

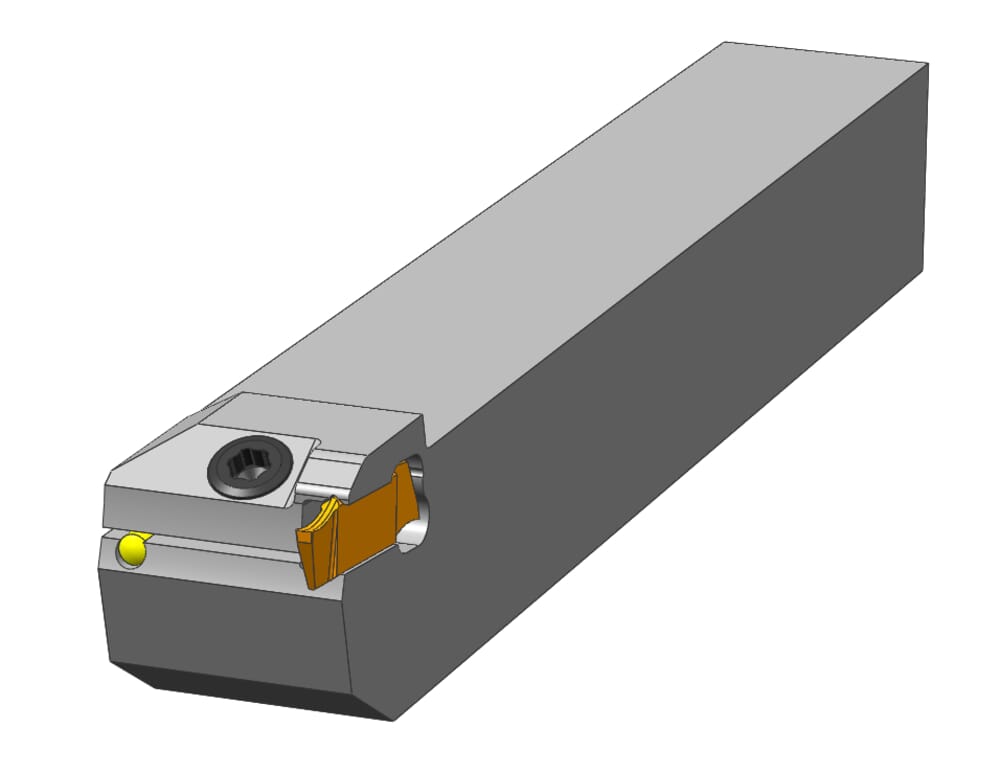

HORN Toolholder RH264.1616.02 for Turning
Please note:Technical instructions
Maximum workpiece diameter (Dmax)
32
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
2
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160105
Katalog_CCTWS
26402
DIN_CCTWS
HORN-264020058N
ISO_CCTWS
HORN264020058N$$$$$
Head length top (including cutting edge) (l3)
17.5
mm
Peak height (h1)
16
mm
Maximum insertion depth (tmax)
4
mm
Head height (HK)
18.5
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
120
mm
Adjustment dimension cutting center (f1)
15
mm
Adjustment dimension (f)
16
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| RH264_1616_02.STP | Download |
| Download all files | |
