RH274.A022.12.07
Toolholder
Part number RH274A0221207

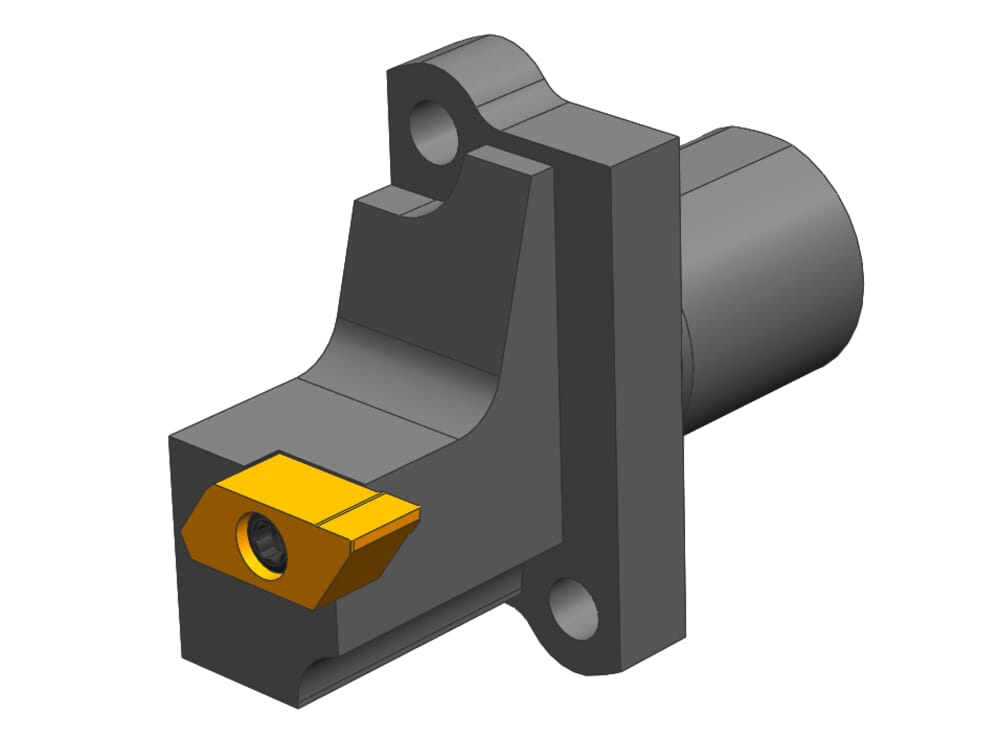

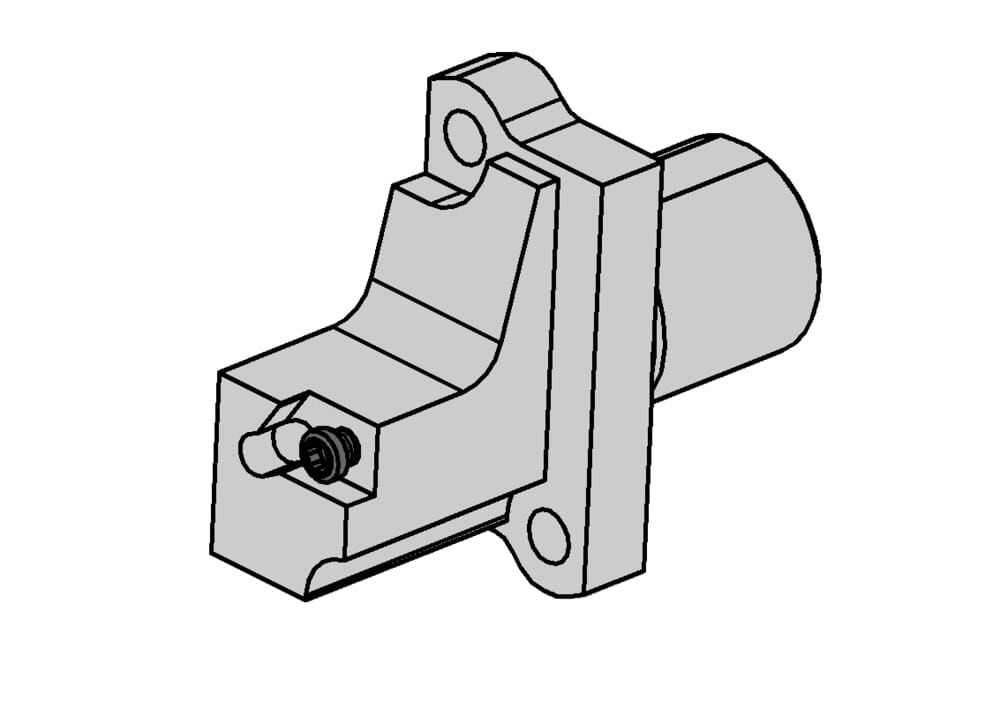

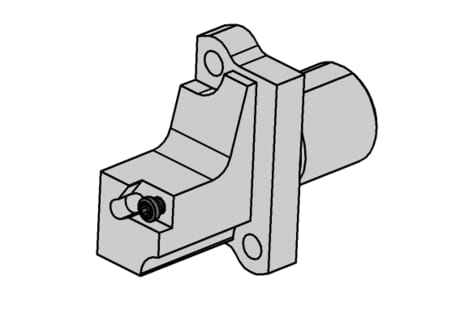

HORN Toolholder RH274.A022.12.07 for Turning
Please note:Technical instructions

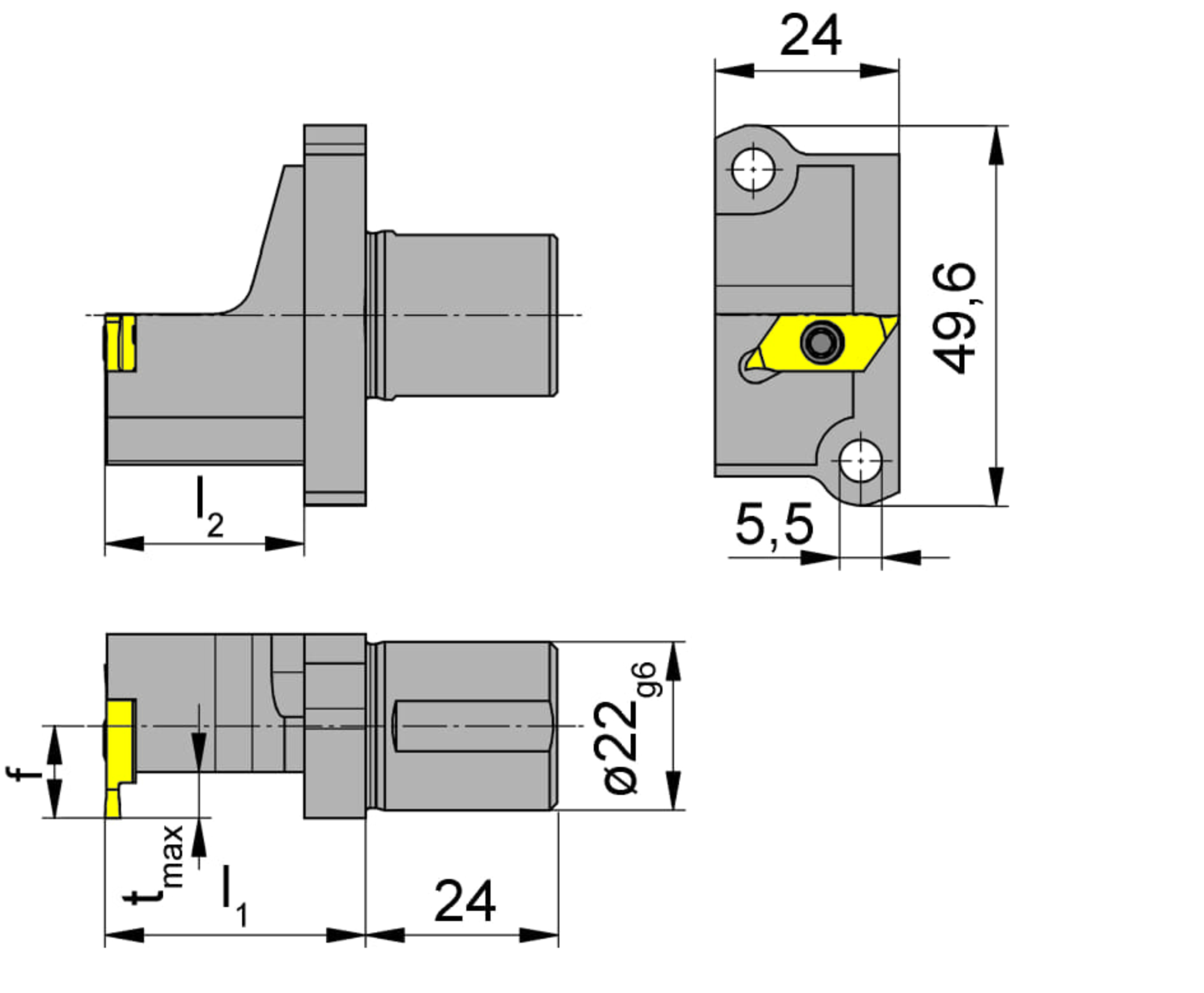

Outcropping, neck, working length (l2)
26
mm
Adjustment dimension center (f)
12
mm
Length from bore (including cutting insert) (l1)
34
mm
Maximum depth of groove (tmax)
6
mm
ISO_CCTWS
HORN274070000L$$$$$
DIN_CCTWS
HORN-274070000L
Katalog_CCTWS
274070L
Katalog_CCTMS
Star
Plating seat size (Größe)
7
eclass-shortcut
21-18-10-04
| Downloads | |
|---|---|
| RH274A0221207.DXF | Download |
| RH274_A022_12_07.STP | Download |
| Download all files | |
