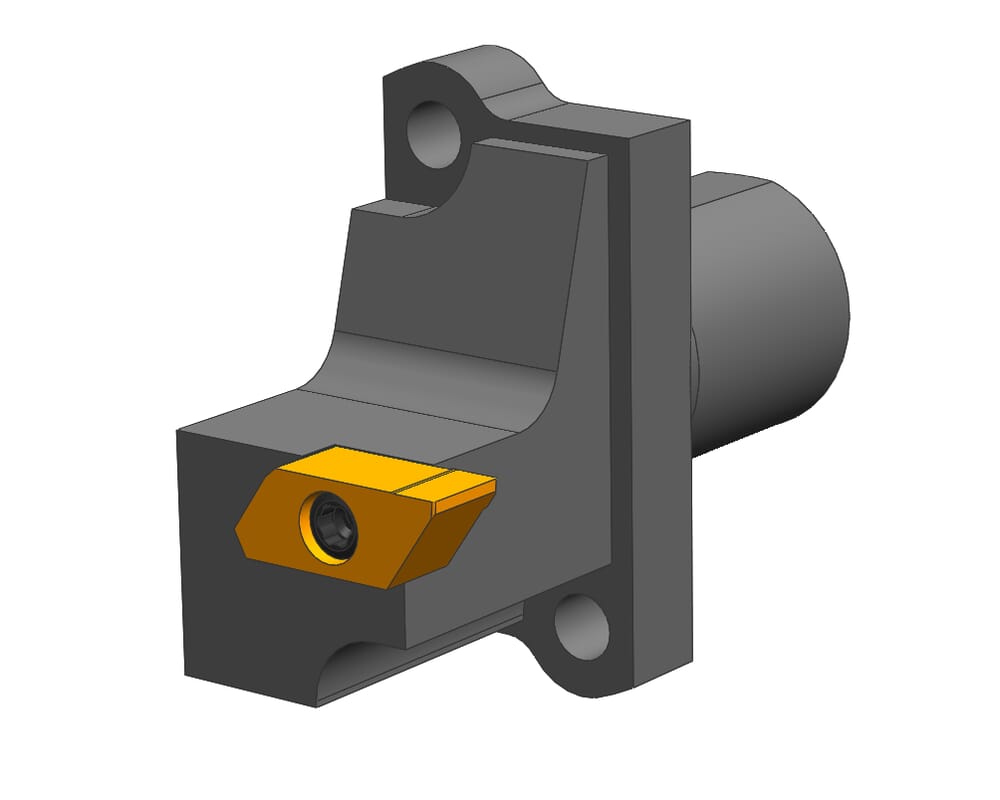

RH274.A022.16.04
Toolholder
Part number RH274A0221604
HORN Toolholder RH274.A022.16.04 for Turning
Please note:Technical instructions
Outcropping, neck, working length (l2)
26
mm
Adjustment dimension center (f)
16
mm
Length from bore (including cutting insert) (l1)
34
mm
Maximum depth of groove (tmax)
6
mm
ISO_CCTWS
HORN274040000L$$$$$
DIN_CCTWS
HORN-274040000L
Katalog_CCTWS
274040L
Katalog_CCTMS
Star
Plating seat size (Größe)
4
eclass-shortcut
21-18-10-04
| Downloads | |
|---|---|
| RH274A0221604_20210628_232534942.DXF | Download |
| RH274_A022_16_04.STP | Download |
| Download all files | |
