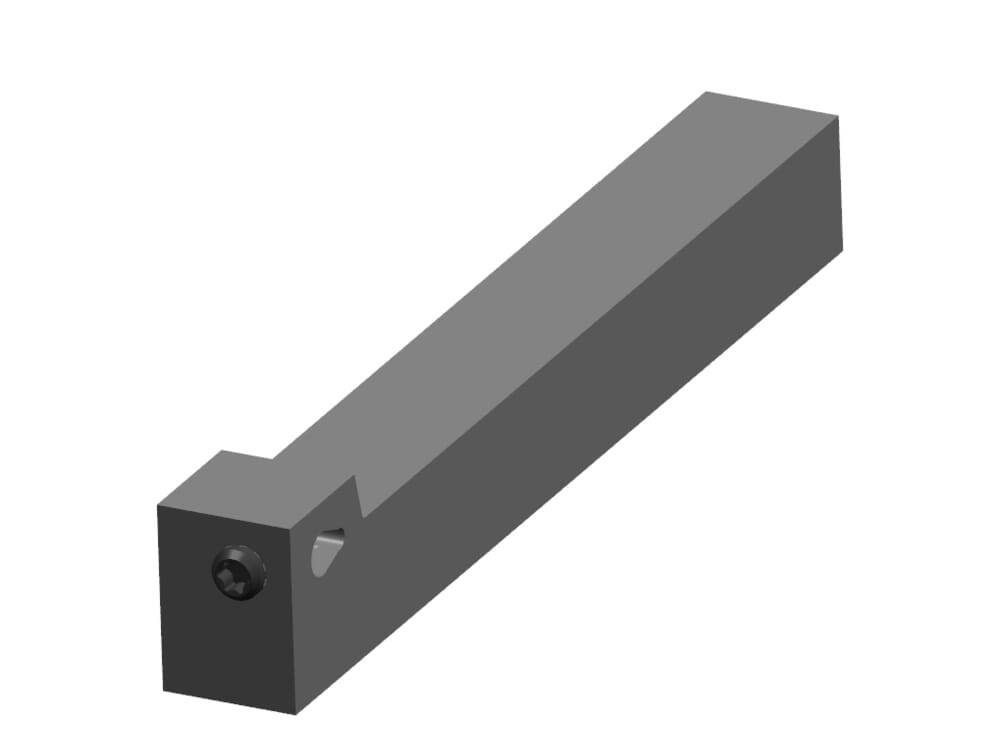

RHC105.1616.01

Toolholder

Part number RHC105161601

HORN Toolholder RHC105.1616.01 for Turning

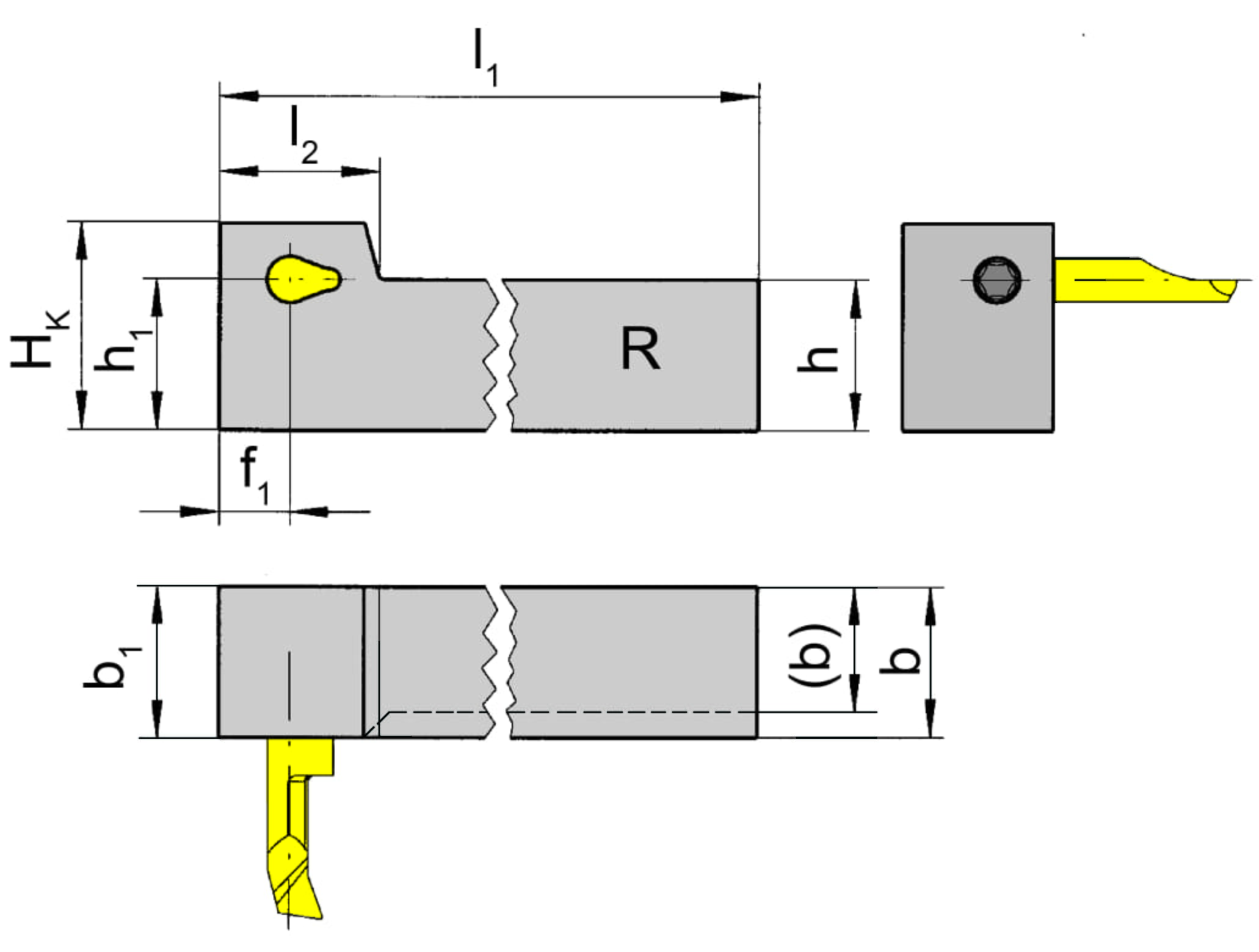

Peak height (h1)

16 mm

eclass-shortcut

21-18-10-05

ISO_CCTMS

VKT01A1616$$$$

DIN_CCTMS

VKT16160105

Katalog_CCTWS

105123;105124;105125

DIN_CCTWS

HORN-10512395N;HORN-10512495N;HORN-10512595N

ISO_CCTWS

HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$

Head length top without insert (l2)

17 mm

Head height (HK)

22 mm

Head width (b1)

16 mm

Shank height (h)

16 mm

Total length (without cutting insert) (l1)

130 mm

Adjustment dimension cutting center (f1)

7.5 mm

Shank width (b)

16 mm
