RS108.0815.GM2 EG55
Insert
Part number RS1080815GM2EG55
HORN Insert RS108.0815.GM2 EG55 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-10806084R

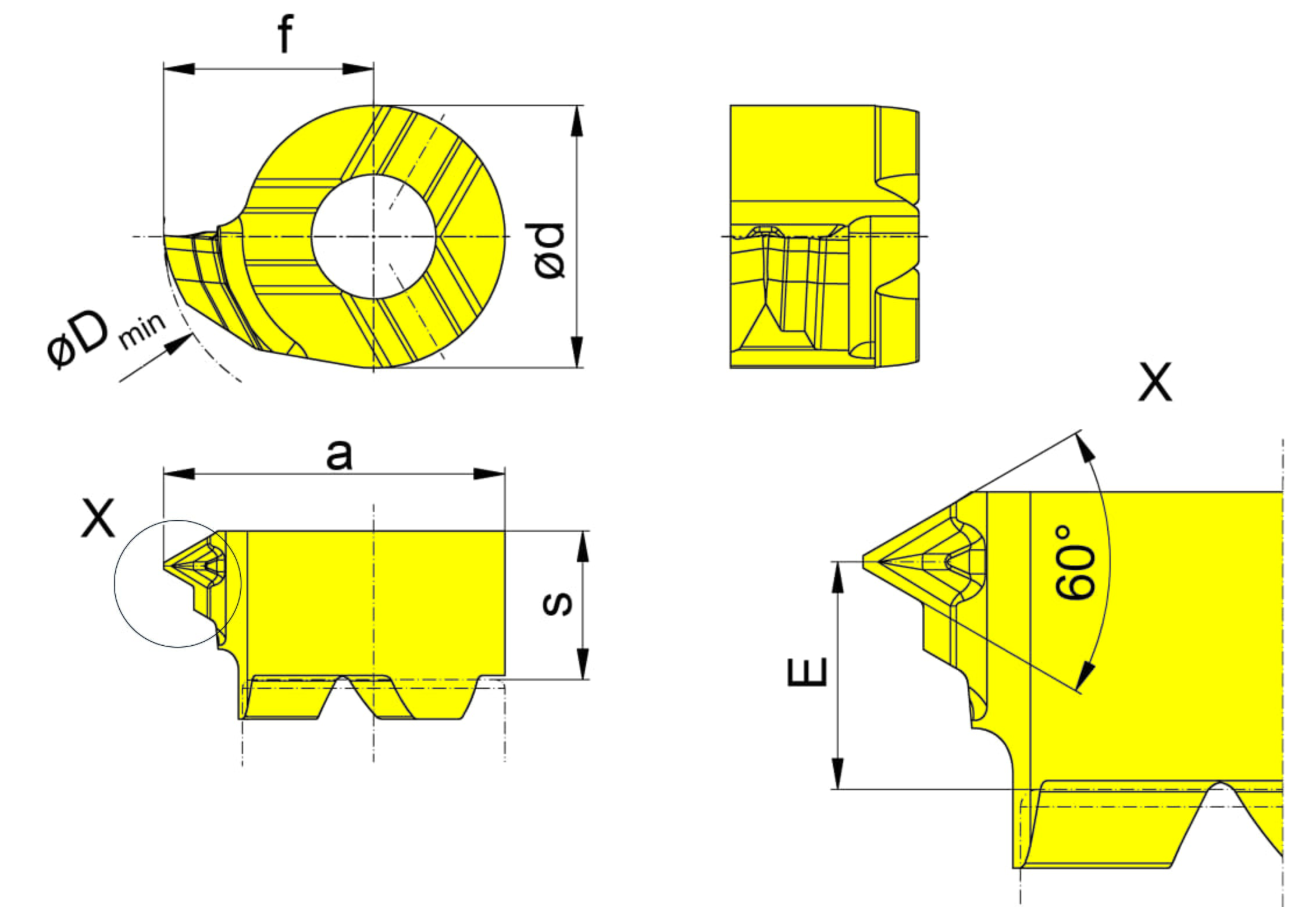

Pitch (P)
1.5
mm
Smallest bore diameter (Dmin)
8
mm
Cutting insert height, Cutting insert thickness (s)
3.4
mm
Setting length (E)
2.6
mm
Tooth diameter, head diameter (d)
6
mm
Cutting insert width (a)
7.8
mm
Setting range radial (f)
4.8
mm
Katalog_SSC
108060R
ISO_SSC
HORN108060$84R$$$$$
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| RS1080815GM2.STP | Download |
| Download all files | |
