R114.1420.10.00 EG55

Insert

Part number R11414201000EG55

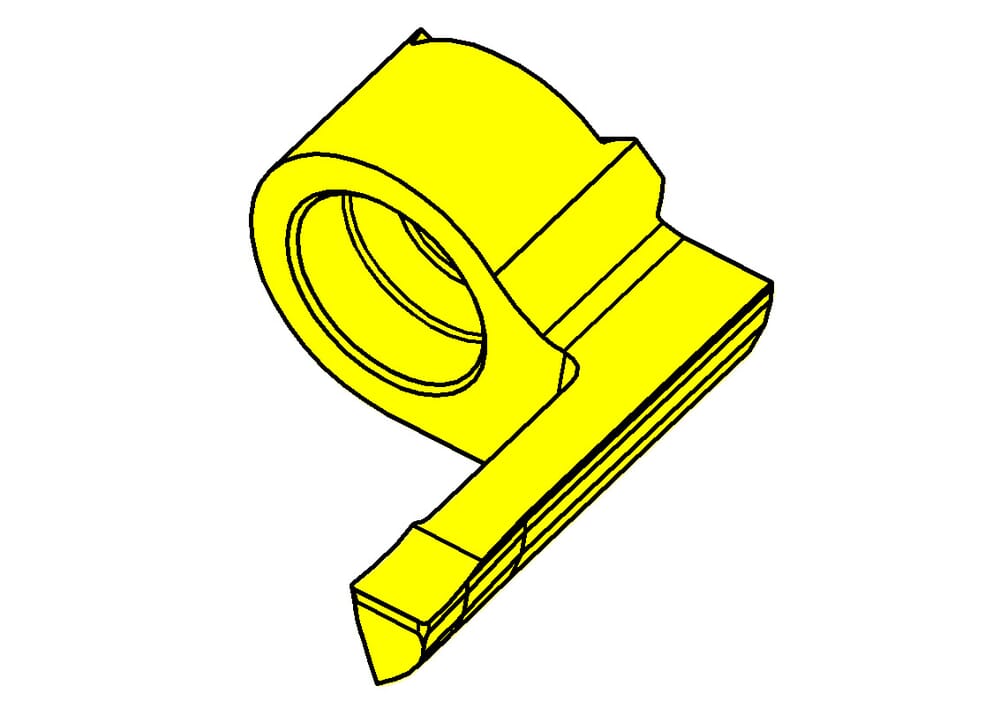

HORN Insert R114.1420.10.00 EG55 for Turning

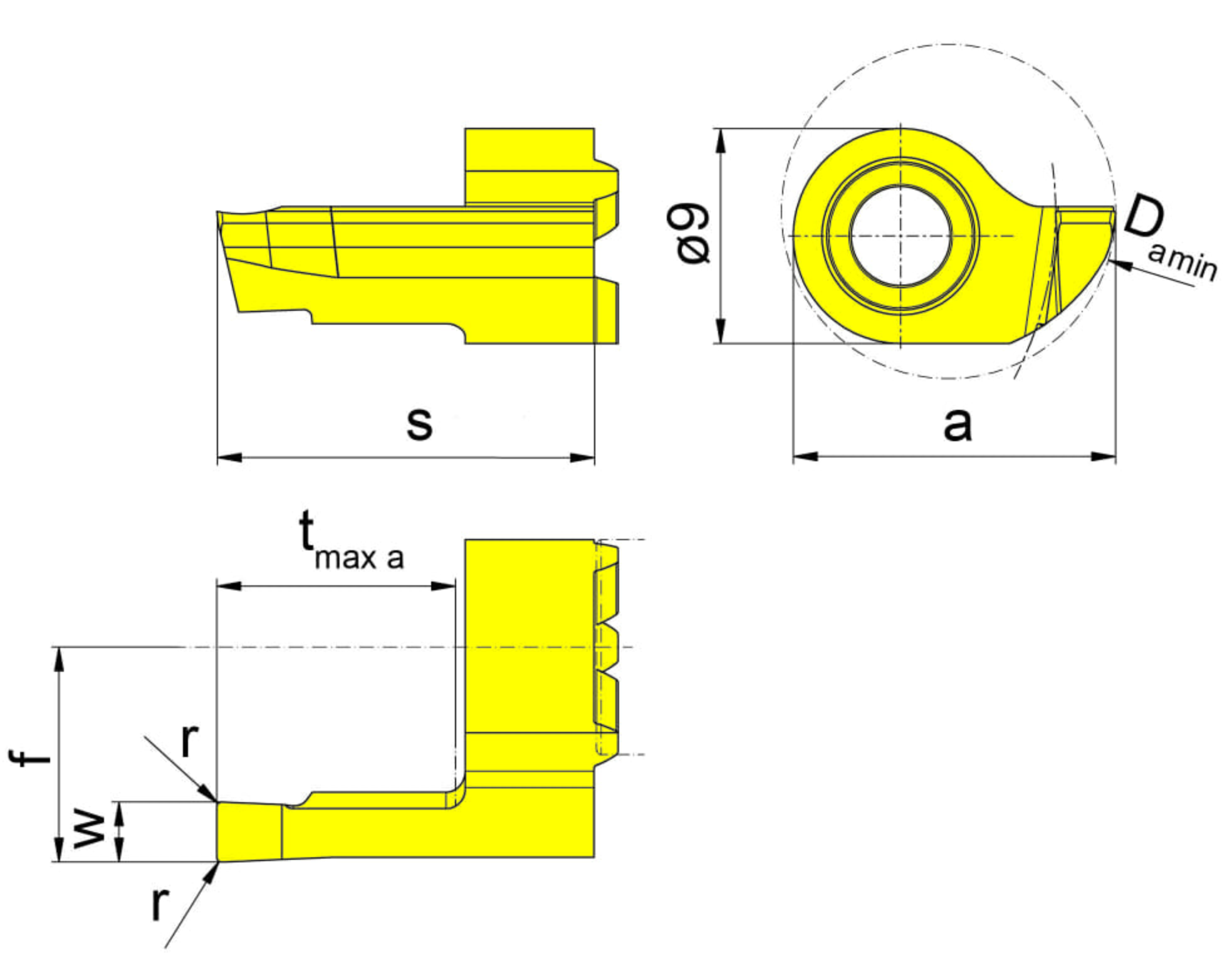

Smallest bore diameter (Da min)

14 mm

Cutting insert height, Cutting insert thickness (s)

15.9 mm

Corner radius (r)

0.2 mm

Setting range radial (f)

9 mm

Width of groove (w)

2 mm

Katalog_SSC

114090R

DIN_SSC

HORN-11409084R

ISO_SSC

HORN114090$84R$$$$$

Smallest axial bore diameter (Da max)

34 mm

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax a)

10 mm

Head size (a)

13.5 mm
