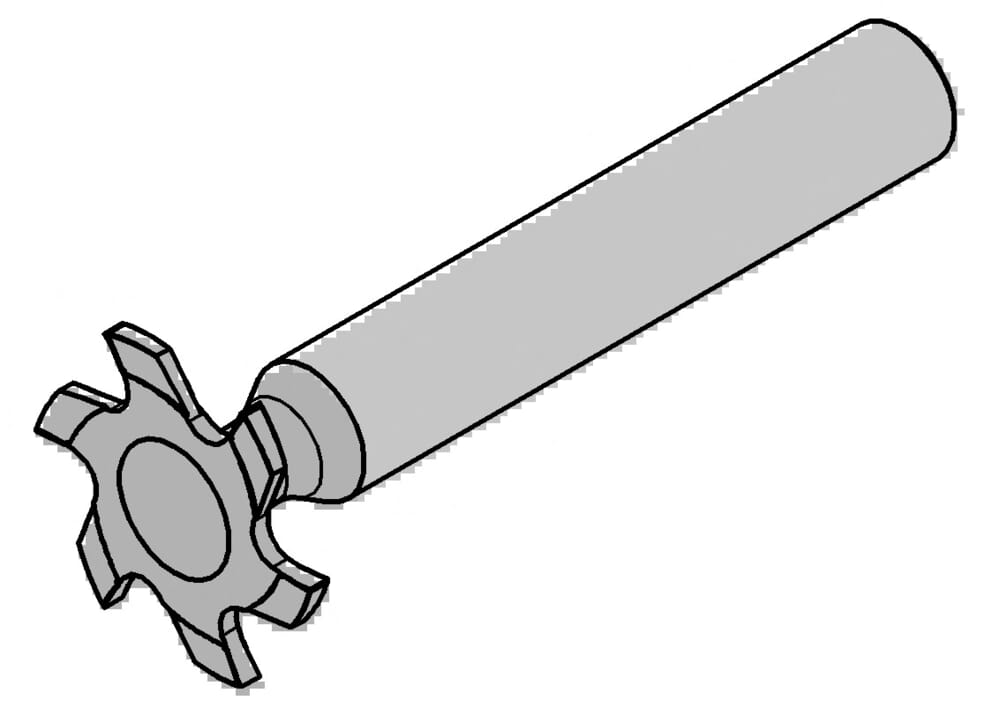

DCX.6.25.250.2.06.10 RC45
DC Slot Cutter Toolholder
Part number DCX62525020610RC45
HORN DC Slot Cutter Toolholder DCX.6.25.250.2.06.10 RC45 for Milling
Please note:Technical instructions
Shank diameter (d2)
10
mm
Neck length (l3)
6
mm
Cutting diameter (d1)
25
mm
Number of teeth (Z)
6
St.
Width of groove (w)
2.53
mm
Shank, clamping length (l4)
40
mm
cutting-width-met
2.53
mm
Neck diameter (d3)
6
mm
Maximum milling depth/ depth of groove (tmax)
9
mm
Total length (l1)
64
mm
smallest-bore-diameter-met
26
mm
| Downloads | |
|---|---|
| DCX_6_25_250_2_06_10_RC45-DXF.DXF | Download |
| DCX_6_25_250_2_06_10_RC45-STP.STP | Download |
| DCX_6_25_250_2_06_10_RC45-DIN.XML | Download |
| Download all files | |
