R105.0533.3.6.B CB10
Insert
Part number R105053336BCB10

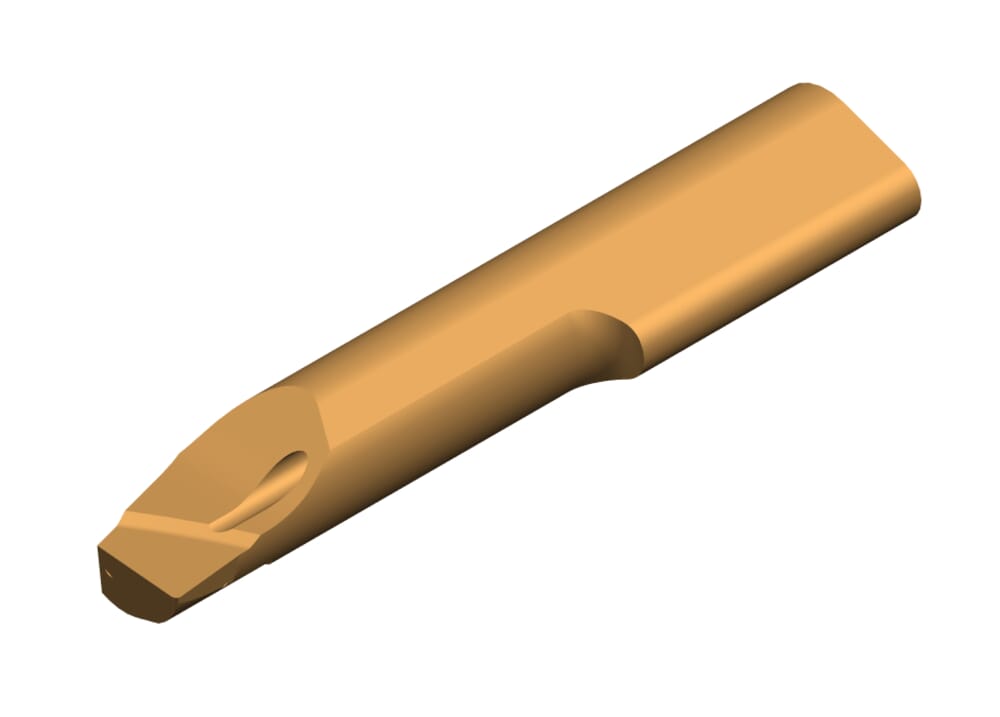

HORN Insert R105.0533.3.6.B CB10 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
6
mm
Total length (l5)
35
mm
Setting range radial (f)
3.3
mm
Neck diameter (d)
5.3
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.15
mm
Head size (a)
5.7
mm
Free angle (α)
5
°
Top radius (r)
0.2
mm
Neck length (l2)
20
mm
