304.0004.08 IG35

Insert

Part number 304000408IG35

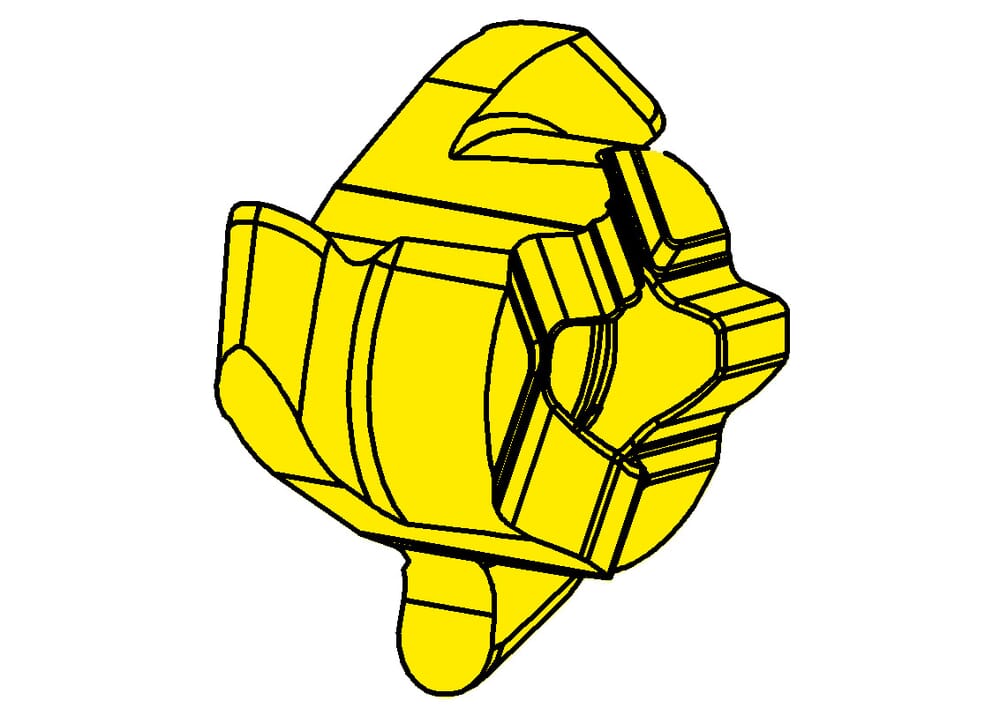

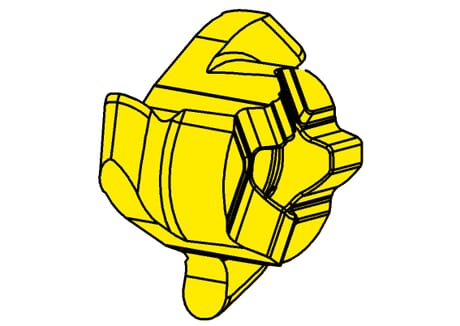

HORN Insert 304.0004.08 IG35 for Milling

Cutting diameter (Ds)

7.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN304044$84R$$$$$

Katalog_SSC

304044R

Width of groove (w)

0.8 mm

Maximum milling depth/ depth of groove (tmax)

1.3 mm

Cutting insert thickness, setting length complete (s)

2.6 mm

Radius, full-radius (r)

0.4 mm
