613.R300.00 AS45

Insert

Part number 613R30000AS45

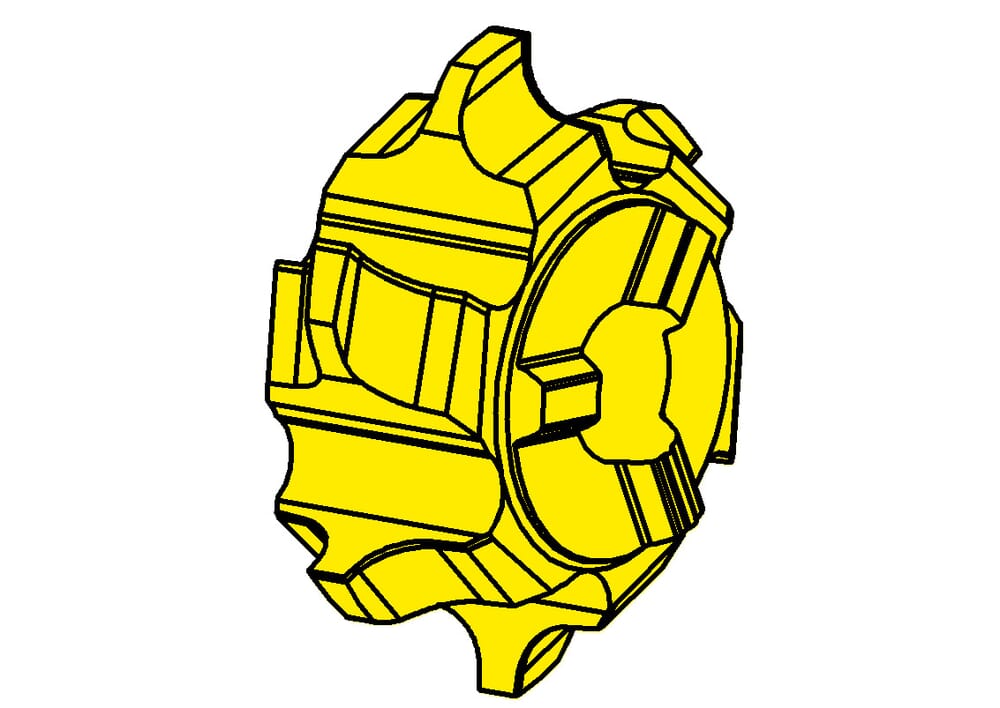

HORN Insert 613.R300.00 AS45 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

1.5 mm

Cutting insert thickness, setting length complete (s)

9.9 mm

Setting range radial (s1)

5.75 mm

Corner radius (r)

3 mm

Chamfer size (tmax)

3.5 mm
