380.0044.03B
Toolholders
Part number 380004403B

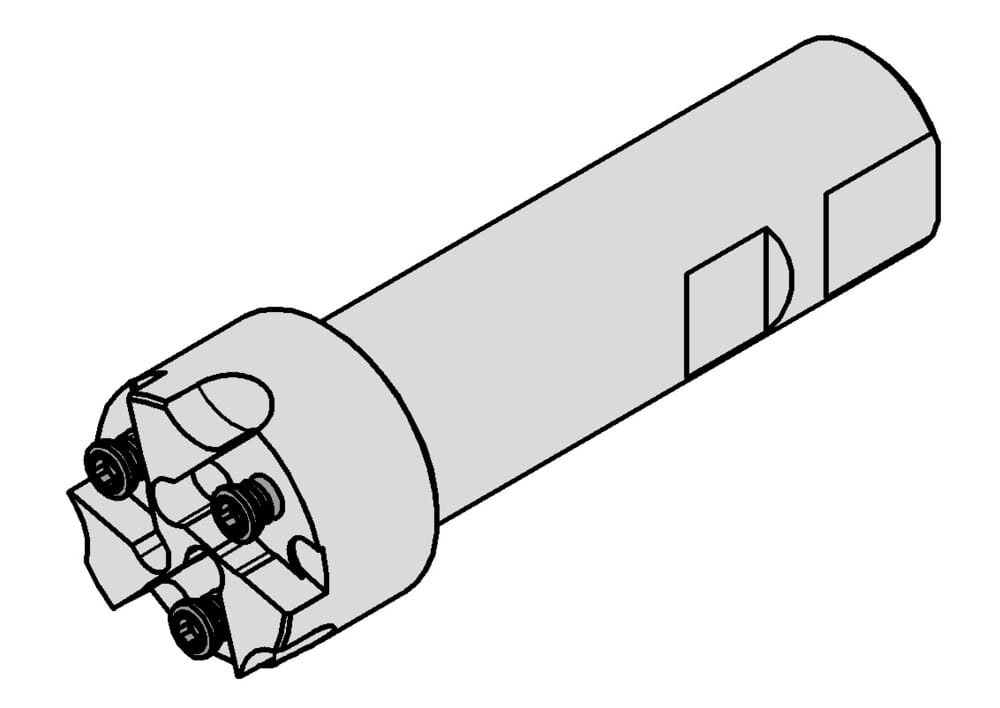

HORN Toolholders 380.0044.03B for Milling
Please note:Technical instructions
DIN_CCTWS
HORN-314027101R;HORN-314041101R;HORN-314052101R
eclass-shortcut
21-18-08-92
Form (Form)
HB
Total length insert (l1)
125
mm
Neck diameter (d1)
34
mm
ISO_CCTMS
ZYL01G2500h$06
DIN_CCTMS
ZYL02501005
Katalog_CCTWS
314027R;314041R;314052R
ISO_CCTWS
HORN314027101R$$$$$;HORN314041101R$$$$$;HORN314052101R$$$$$
Einlegewinkel Wendeschneidplatte (λ)
14
°
Cutting diameter (Ds)
44
mm
Shank diameter (d)
25
mm
| Downloads | |
|---|---|
| 380_0044_03B-DIN.XML | Download |
| 380_0044_03B-STP.STP | Download |
| 380_0044_03B-ISO.XML | Download |
| 380_0044_03B-DXF.DXF | Download |
| Download all files | |
