380.0063.05IK

Toolholder

Part number 380006305IK

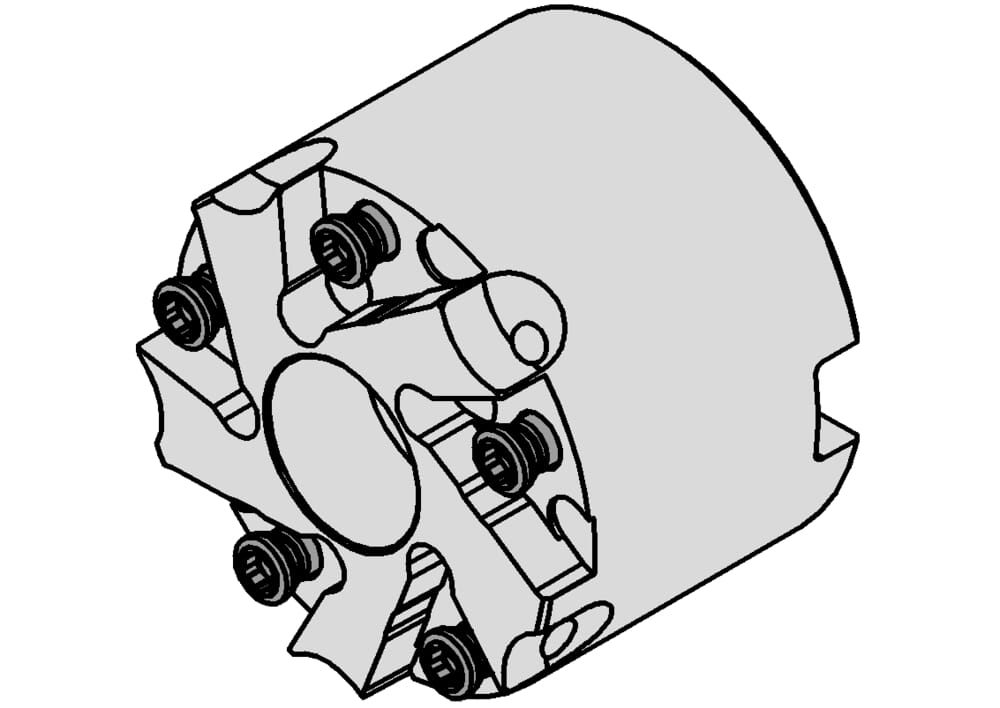

HORN Toolholder 380.0063.05IK for Milling

Katalog_CCTWS

314027R;314041R;314052R

eclass-shortcut

21-18-08-92

Diameter of the mandrel (d2)

51 mm

Length from stop to base fastening screw head (l2)

27.6 mm

Mounting hole depth (l1)

20 mm

Mounting hole diameter (d3)

22 mm

Miller length without indexable insert (h2)

39.6 mm

Miller length with indexable insert (h)

40 mm

ISO_CCTMS

FDA22G2200$$$$

DIN_CCTMS

FDA02202210

DIN_CCTWS

HORN-314027101R;HORN-314041101R;HORN-314052101R

ISO_CCTWS

HORN314027101R$$$$$;HORN314041101R$$$$$;HORN314052101R$$$$$

Einlegewinkel Wendeschneidplatte (λ)

10 °

Number of teeth (Z)

5 St.

bore-diameter-met

18.5 mm

Cutting diameter (Ds)

63 mm
