382.0080.27.08
Toolholders
Part number 38200802708

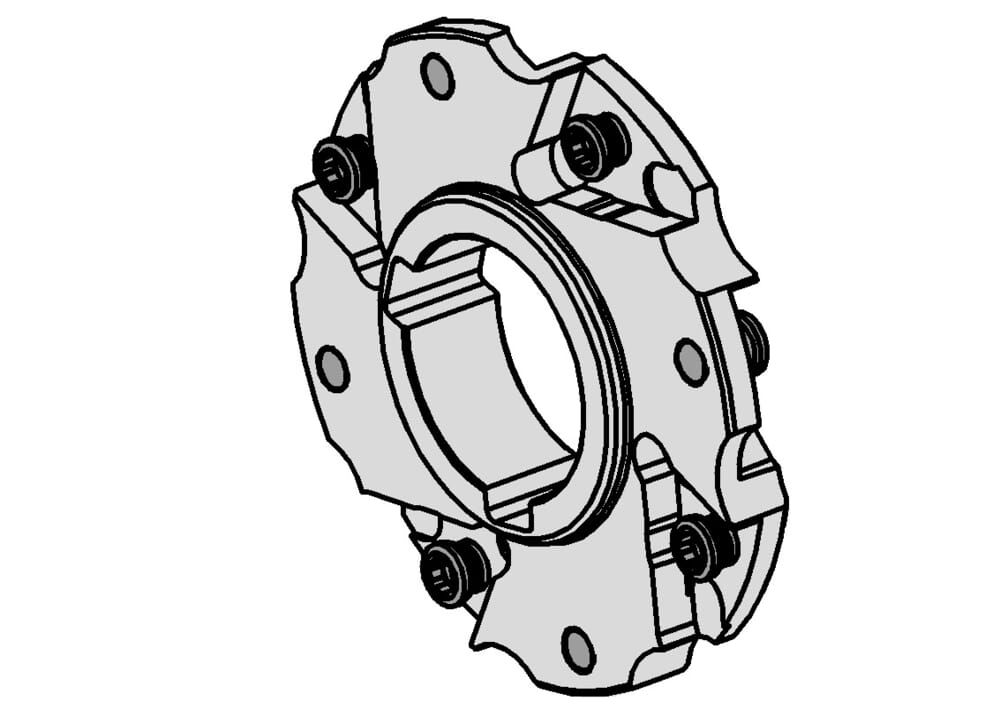

HORN Toolholders 382.0080.27.08 for Milling
Please note:Technical instructions
Katalog_CCTWS
314041R;314041L
eclass-shortcut
21-18-09-06
Total width with drive rings (b2)
12
mm
Maximum milling depth/ depth of groove (tmax)
21
mm
Left hand indexable insert (linke WSP)
4x L314...
Right hand indexable insert (rechte WSP)
4x R314....
Cutting width maximum (w)
8
mm
Mounting hole diameter (d2)
27
mm
ISO_CCTMS
FDA01G2700$$$$
DIN_CCTMS
FDA02700100
DIN_CCTWS
HORN-314041101R;HORN-314041101L
ISO_CCTWS
HORN314041101R$$$$$;HORN314041101L$$$$$
Number of teeth (Z)
4
St.
Bore diameter miller body (d3)
36
mm
Cutting diameter (Ds)
80
mm
| Downloads | |
|---|---|
| 382_0080_27_08-DXF.DXF | Download |
| 382_0080_27_08-STP.STP | Download |
| 382_0080_27_08-DIN.XML | Download |
| 382_0080_27_08-ISO.XML | Download |
| Download all files | |
