382.0125.40.10
Toolholders
Part number 38201254010

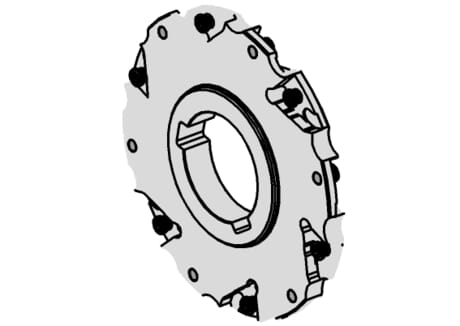

HORN Toolholders 382.0125.40.10 for Milling
Please note:Technical instructions
Katalog_CCTWS
314052R;314052L
eclass-shortcut
21-18-09-06
Total width with drive rings (b2)
14
mm
Maximum milling depth/ depth of groove (tmax)
32.5
mm
Left hand indexable insert (linke WSP)
6x L314...
Right hand indexable insert (rechte WSP)
6x R314...
Cutting width maximum (w)
10
mm
Mounting hole diameter (d2)
40
mm
ISO_CCTMS
FDA01G4000$$$$
DIN_CCTMS
FDA04000100
DIN_CCTWS
HORN-314052101R;HORN-314052101L
ISO_CCTWS
HORN314052101R$$$$$;HORN314052101L$$$$$
Number of teeth (Z)
6
St.
Bore diameter miller body (d3)
58
mm
Cutting diameter (Ds)
125
mm
| Downloads | |
|---|---|
| 382_0125_40_10-DIN.XML | Download |
| 382_0125_40_10-DXF.DXF | Download |
| 382_0125_40_10-STP.STP | Download |
| 382_0125_40_10-ISO.XML | Download |
| Download all files | |
